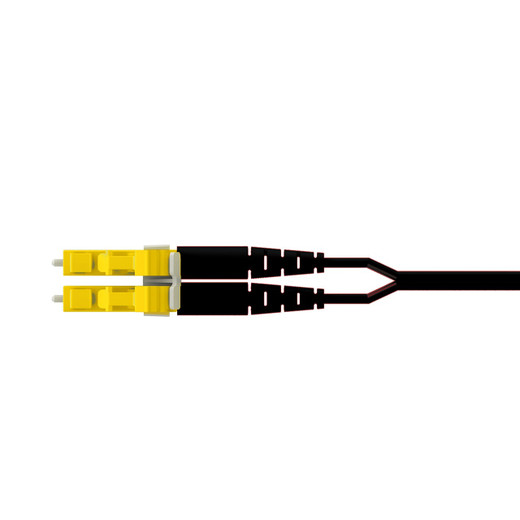

The Panduit FS2EPKDLDNDM002 is a 2-meter plenum-rated OM4+ fiber optic patch cord engineered for datacenter and enterprise network environments where physical layer security and ultra-low insertion loss are deployment requirements. This duplex LC cord features a hybrid D-code configuration—one end with Panduit's mechanical D-code keying, the other end standard non-keyed—enabling secure cross-connect architectures where access control to fiber infrastructure is policy-driven. Built on Signature Core OM4+ multimode fiber with a 1.6mm zipcord jacket, it delivers 40/100 Gigabit Ethernet performance in plenum air-handling spaces while maintaining tight-radius bend flexibility for high-density patching.
The hybrid D-code architecture on the FS2EPKDLDNDM002 addresses a specific security and infrastructure management challenge: many datacenter operators require physical layer access control to prevent unauthorized patch changes or accidental disconnections in mission-critical fiber runs, but standard mechanical keying systems (LC Uniboot keyed, MPO key-up/key-down, or full D-code deployments) create compatibility friction when interfacing with legacy or multi-vendor infrastructure where keying may not be uniformly deployed. This patch cord solves that problem by placing the D-code mechanical key on one end only—typically the end that connects to the secure or controlled side of the cross-connect (such as a main distribution frame or core switch uplink)—while leaving the other end standard LC for connection to patch panels, cassettes, or equipment ports that may not support keying. The D-code itself is a mechanical feature molded into the connector boot that physically prevents mating with non-D-coded adapters unless the receiving port is also D-coded, creating an air-gap-level interlock that cannot be defeated by swapping cables or replugging without authorization. For operators managing hundreds or thousands of fiber links in colocation facilities, government datacenters, or financial services networks where change control is audit-enforced, this hybrid approach maintains security on the controlled side while preserving operational flexibility on the access side.
OM4+ Signature Core fiber represents Panduit's enhanced multimode specification, delivering insertion loss performance that consistently falls below the 0.75 dB maximum defined by TIA-568.3-D for OM4 patch cords and typically measures in the 0.15-0.25 dB range for duplex LC connectors in production. This ultra-low loss headroom is critical in 40GBASE-SR4 and 100GBASE-SR4 applications where IEEE 802.3ba link budgets allow only 1.9 dB total channel loss over 100-150 meter distances, and every tenth of a dB consumed by connectors and patch cords reduces usable span or forces costly transceiver upgrades. The 50-micron core diameter and laser-optimized graded-index profile support 850nm VCSEL transmission at effective modal bandwidths exceeding 4700 MHz·km, enabling full 100-meter reach for 100 Gigabit Ethernet without the modal dispersion penalties that affect earlier OM3 or OM2 installations. For 10GBASE-SR links, OM4+ extends usable distance to 400 meters, covering the majority of intra-building backbone and horizontal cross-connect scenarios without requiring single-mode fiber upgrades. The yellow jacket color follows TIA-598-D convention for 850/1300nm laser-optimized multimode fiber, providing instant visual differentiation from aqua (OM3), orange (OM1/OM2), or OS2 single-mode cordage during troubleshooting and MACs (moves, adds, changes).
The 2-meter length positions this cord for datacenter cross-connect and telecommunications room applications where patch runs typically fall in the 1-3 meter range—short enough to minimize insertion loss and cable management bulk, long enough to route between adjacent racks or from floor-standing cabinets to overhead cable tray without tension or excessive service loops. The 1.6mm zipcord jacket construction (two 900-micron buffered fibers in a flat oval profile) allows tighter bend radii than round 2mm or 3mm cordage, critical in high-density 1U and 2U patch panels where dozens of duplex LC connections occupy a single rack unit and cable egress must navigate around adjacent connectors without violating the 30mm minimum dynamic bend radius for OM4 fiber. Zipcord's flat profile also reduces congestion in vertical cable managers and zero-U pathways compared to round jacketed cords of equivalent fiber count. The plenum (OFNP) fire rating qualifies this cord for installation in HVAC return-air plenums, raised-floor plenums, and other air-handling spaces per NEC 770.113(B) without requiring metallic conduit or J-hooks rated for plenum use, significantly reducing installation labor and material cost in new builds or datacenter expansions where above-ceiling or under-floor routing is the primary horizontal pathway.
Duplex LC connectors remain the dominant physical interface for enterprise multimode fiber, supported by every major transceiver vendor's SFP, SFP+, SFP28, and QSFP breakout optics, and specified as the default connector type in TIA-568-C.3 for work-area and equipment cord applications. The push-pull latch design offers tool-free insertion and removal even in densely populated panels, and the small form factor (approximately 6.25mm x 13mm per connector) enables 144-fiber density in a single 1U panel—three times the port count of legacy SC or ST installations. The FS2EPKDLDNDM002's duplex configuration (two fibers terminated together in a single clip) maintains transmit/receive polarity by convention (Position A = transmit, Position B = receive) without requiring Method B or Method C polarity management schemes, simplifying deployment in point-to-point links and structured cabling systems that follow TIA-568 Annex D guidelines. RoHS compliance ensures material composition meets EU Directive 2011/65/EU lead and heavy-metal restrictions, satisfying green procurement mandates for multinational enterprises and government contracts. This hybrid D-code patch cord fits deployments where physical layer security, ultra-low insertion loss, and plenum-rated construction must coexist—datacenter core-to-distribution uplinks in FISMA-controlled facilities, financial trading floor cross-connects subject to SOC 2 change control audits, and healthcare network backbones where HIPAA technical safeguards require documented physical access controls to protected health information pathways.
