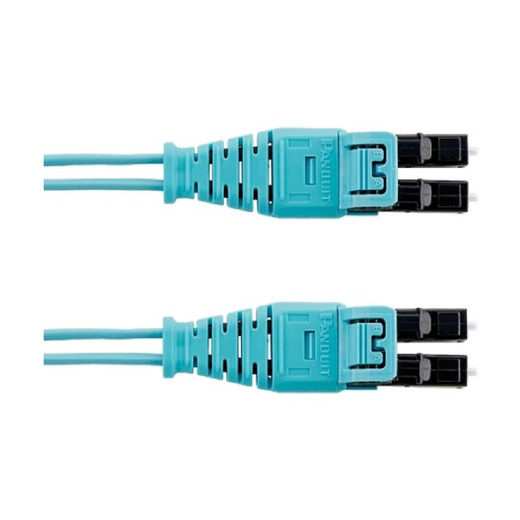

Panduit FZ2ELQ1SNSNM020 OM4 Fiber Cable

Panduit FZ2ELQ1SNSNM020 OM4 Fiber Cable

Overview

The Panduit FZ2ELQ1SNSNM020 is a 20-meter (65.6 ft) OM4 multimode fiber optic patch cable designed for high-speed data transmission in demanding network environments. Its Low Smoke Zero Halogen (LSZH) jacket makes it suitable for installations where fire safety regulations are critical, such as data centers, telecommunications rooms, and entrance facilities. This cable enables rapid deployment of pre-terminated fiber infrastructure, reducing installation time and complexity.

Compatibility

This cable utilizes LC Duplex connectors, ensuring compatibility with standard LC ports found on network switches, routers, servers, and fiber optic transceivers. It is designed to meet TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, making it suitable for integration into compliant network architectures. The OM4 fiber type supports high bandwidth applications, including 10/40/100 GbE Ethernet, up to 300 meters, and is backward compatible with OM3 infrastructure.

Installation Notes

The 1.6mm cable diameter with LSZH jacketing provides a balance of flexibility and durability for installation within cable trays and conduits. The push-pull connector design facilitates quick and secure mating and un-mating, simplifying moves, adds, and changes in dense rack environments. Ensure proper bend radius is maintained during installation to preserve signal integrity.
