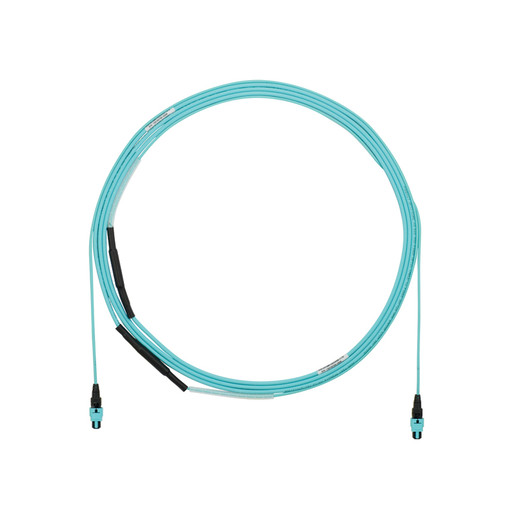

Panduit FYZAP77X005M085 OM4 144-F Indoor Trunk Cable
Overview
The Panduit FYZAP77X005M085 is an 85-meter (278.9 ft) OM4 Multimode fiber optic trunk cable assembly. This pre-terminated solution is engineered for rapid deployment in high-density environments like data centers, telecommunications rooms, and equipment distribution areas where efficient, reliable fiber connectivity is critical. It provides a structured cabling backbone designed to meet stringent performance standards.
Compatibility
This Panduit QuickNet™ HD Flex trunk cable assembly is designed for use within Panduit's QuickNet™ fiber optic infrastructure systems. It is compatible with Panduit's range of fiber optic patch panels, MTP/MPO connectors, and transceivers that support OM4 multimode fiber and 144-fiber configurations. Ensure your termination hardware and active equipment are specified for 50/125µm OM4 fiber to guarantee optimal performance.
Installation Notes
The minimum bend radius for this OM4 fiber trunk cable is 45mm (1.8 in) when not under tension, and 15mm (0.6 in) when under tension. Adhering to these bend radius specifications is crucial to prevent signal degradation and maintain cable integrity. Ensure proper strain relief is applied at termination points to avoid excessive pulling force on the fiber strands.
Standards
This cable assembly meets key industry standards including TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B. Compliance with these standards ensures interoperability and performance assurance within structured cabling systems for telecommunications and data centers.
