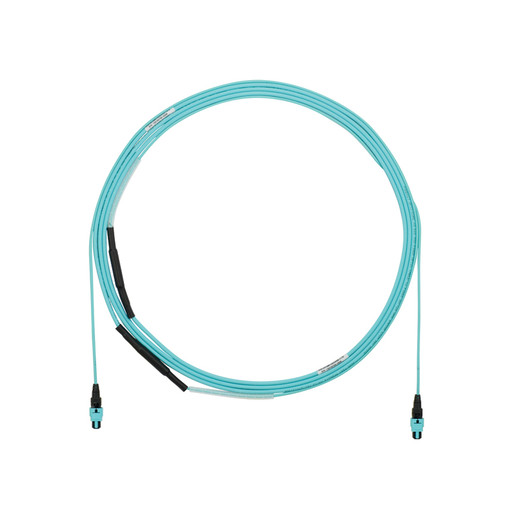

Panduit FYZAP77X005M035 OM4 144-F Trunk Cable Assembly

Panduit FYZAP77X005M035 OM4 144-F Trunk Cable Assembly

Overview

The Panduit FYZAP77X005M035 is a 35-meter (114.8 ft) OM4 144-fiber indoor trunk cable assembly. It's designed for high-density data center, telecommunications room, and entrance facility applications where rapid deployment of pre-terminated fiber infrastructure is critical. This assembly leverages Panduit's QuickNet™ HD Flex technology to reduce installation time and complexity compared to field-terminated fiber.

Compatibility

This trunk cable assembly is designed for use within Panduit's QuickNet™ HD Flex system. It terminates to compatible Panduit HD Flex MPO/MTP style connectors and panels. Ensure that all connecting hardware, including patch panels and breakout cables, are also OM4 rated and compatible with 144-fiber configurations to maintain performance specifications. It meets TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability with compliant network equipment.

Installation Notes

The 35-meter length provides significant reach for complex data center layouts. The pre-terminated nature of this assembly eliminates the need for field splicing or termination, which requires specialized tools and training. Careful routing is advised to avoid exceeding the minimum bend radius of the OM4 fiber, which is critical for maintaining signal integrity over the 35-meter distance. Deploying this cable within structured cabling pathways will ensure protection and adherence to standards.
