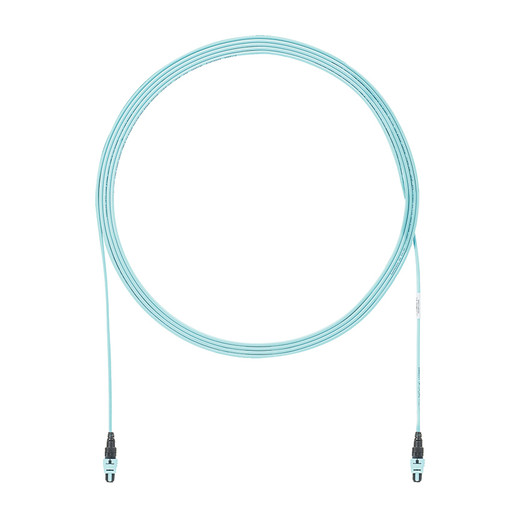

Panduit FRZTL77Y001M002 OM4 12FB Lszh FM PB 2M

Overview

The Panduit FRZTL77Y001M002 is a 2-meter (6.6 ft) OM4 12-fiber Opti-Core® fiber optic cable assembly. It's designed for high-density data center and telecommunications room environments where rapid deployment of pre-terminated fiber infrastructure is critical. The LSZH (Low Smoke Zero Halogen) rating ensures compliance with stringent building codes for plenum spaces, reducing fire risk and toxic smoke emission during a fire event.

Compatibility

This cable assembly is engineered to meet TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards. It is suitable for use with any network equipment requiring OM4 multimode fiber connectivity, including switches, transceivers, and patch panels commonly found in enterprise data centers, telecommunications rooms, and entrance facilities. Its 12-fiber count supports parallel optics and aggregated bandwidth applications.

Installation Notes

The OM4 multimode fiber offers a 50/125µm core/cladding diameter, supporting 100Gbps Ethernet up to 150 meters and 400Gbps Ethernet up to 100 meters. The LSZH jacket material requires careful handling to avoid damage. Ensure proper bend radius management (minimum bend radius typically 10x cable diameter for OM4) to prevent signal degradation or fiber breakage.
