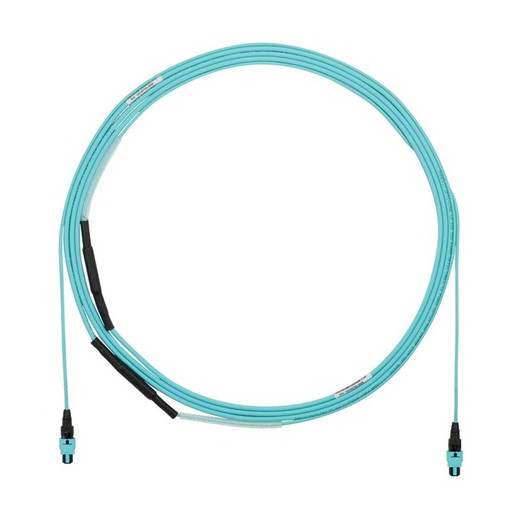

Panduit FYZTP77Y005F015 Fiber Trunk Assembly
Panduit FYZTP77Y005F015 Fiber Trunk Assembly
Panduit FYZTP77Y005F015 Fiber Trunk Assembly
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Panduit FYZTP77Y005F015 Fiber Trunk Assembly

Overview

The Panduit FYZTP77Y005F015 is a 15-foot OM4 fiber optic trunk cable assembly designed for high-density data center and enterprise network backbones. It utilizes PanMPO™ connectors, enabling rapid deployment and simplified management in environments requiring structured cabling solutions. This assembly's plenum rating (OFNP) makes it suitable for installation in air-handling spaces, satisfying building codes for critical infrastructure.

Compatibility

This Panduit QuickNet™ assembly is engineered for use with equipment supporting PanMPO™ 12-fiber connectors. It integrates seamlessly into structured cabling systems requiring OM4 (50-micron multimode) fiber, often found in high-speed Ethernet applications up to 100GbE and beyond. The polarity B configuration is standard for many MPO trunking applications, ensuring correct signal path when paired with compatible transceivers and patch panels.

Installation Notes

The cable features a pulling eye on one end, simplifying installation through conduit or cable trays. The assembly includes a 1-meter breakout on each end, terminating in PanMPO™ Female connectors. The optimized insertion loss (IL) specification ensures signal integrity over its 15-foot length. Ensure proper bend radius management during installation to maintain performance.

Expert Analysis
Specifications
Sub Brand: QuickNet™
Application: Fiber trunk assembly
Color: Aqua
Connector 1: PanMPO™-12 Female
Connector 2: PanMPO™-12 Female
Fiber Type: OM4
Flammability Rating: Plenum (OFNP)
Fiber Count: 12
Length Ft: 15
Length M: 4.57
Product Type: Fiber Optic Trunk Cable Assembly
Carton Qty: 0
Package Qty: 1
Cable Category: fiber-optic-systems
Type: Fiber Optic Trunk Cable Assembly
Q&A
Reviews
Product Video

Panduit FYZTP77Y005F015 Fiber Trunk Assembly

$976.48
$578.99
Add to Cart
