Panduit OM3 12F TRUNK LSZH MPO F/LC DUP - FXTYL5EL2SAM065

Panduit FXTYL5EL2SAM065 OM3 12F TRUNK LSZH MPO F/LC DUP Concise Descriptor

Overview

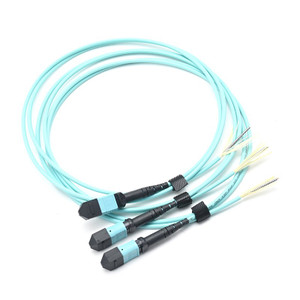

The Panduit FXTYL5EL2SAM065 is a 12-fiber, OM3 laser-optimized multimode fiber optic trunk cable assembly. It features MPO connectors on one end and LC duplex connectors on the other, designed for high-density interconnects in enterprise and data center environments. The Low Smoke Zero Halogen (LSZH) jacket provides enhanced safety in plenum spaces or areas with strict fire-resistance codes, reducing toxic smoke and flame spread. This cable is critical for building out structured cabling backbones that support high-speed network equipment.

Compatibility

This trunk cable is designed to interconnect MPO-based network equipment (e.g., switches, transceivers) with LC-based patch panels or active equipment. It is compatible with standard MPO/MTP adapter plates and LC duplex adapters. The OM3 rating ensures support for 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters, making it suitable for a wide range of high-speed networking applications. It integrates with Panduit's Net-Access™ and Net-Shelter® SX racks and cabinets.

Installation Notes

Maintain a minimum bend radius of 1 inch (25mm) during installation and 0.5 inches (12.5mm) after installation to prevent signal degradation. Ensure connectors are clean before mating. The LSZH jacket requires standard cable management practices for fire safety compliance.

What's in the Box

• 1x Panduit FXTYL5EL2SAM065 OM3 12F TRUNK LSZH MPO F/LC DUP Cable
