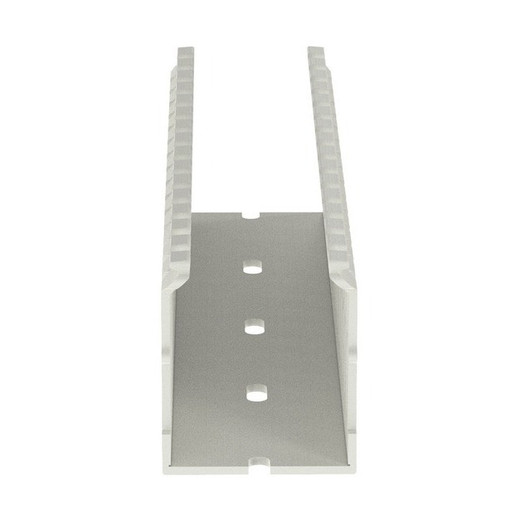

Panduit F1.5X1.5WH6 Type F Narrow Slot PVC Wiring Duct — 1.5" x 1.5" x 6 ft, White
Overview
The Panduit F1.5X1.5WH6 is a Type F narrow slot wiring duct designed for high-density control panel and enclosure wiring runs where standard open-slot duct leaves too much wire exposure between closely spaced components. At 1.5" wide by 1.5" high and 6 feet long, this Panduct® unit bridges the gap between undersized 1-inch duct and the bulkier 2-inch profiles — the right cross-section for mid-density termination rows in 19-inch rack panels, PLC enclosures, and security system head-end cabinets. The narrow finger/slot design is the defining feature: fingers are spaced to align with high-density component layouts, keeping individual conductors routed cleanly rather than stacked in a wide-open trough. If you've managed a crowded IDF cabinet or a multi-controller access panel where wires migrate out of position during servicing, the F1.5X1.5WH6 addresses that directly.
Panduit's broader Panduit wiring and cable management line covers the full range of duct profiles, fittings, and accessories — this unit fits squarely within the Panduct® family and shares fitting compatibility across the Type F series. For broader cable organization strategy in security installations, the structured cabling category includes complementary patch panels, cable managers, and horizontal organizers that pair with this duct in finished head-end builds.
Key Features
- Narrow Slot / Finger Design: Fingers are sized and spaced to match high-density component pitch. In practice, this means conductors exit the duct cleanly at each termination point rather than bunching at oversized slots — critical when you're landing 20+ conductors in a 12-inch horizontal run.
- 1.5" W × 1.5" H Interior Channel: The square 1.5-inch profile (38.1 mm × 38.1 mm) accommodates mid-volume wire bundles without wasted air space. Under-sizing forces wires to compress and can crack insulation over time; over-sizing lets bundles shift and snag during panel servicing. This cross-section hits the practical middle for 12–30 conductor runs in access control and security panels.
- 6-Foot Length: At 1.83 meters per stick, a single piece spans a standard 19-inch rack vertical section with room to cut to length — fewer joints in a finished run means less chance of wire pinch at splice points. Sold in a pack of 6, so a full cabinet build typically comes from one order.
- UL 94 V-0 Flame Rating: V-0 is the strictest category in UL 94 testing — material self-extinguishes within 10 seconds with no flaming drips. For panels installed in occupied buildings or alongside fire-alarm control equipment, this rating is frequently required by the AHJ and is not the same as the V-2 rating found on budget duct alternatives.
- UL Recognized, RoHS Compliant, CE Compliant: UL Recognition (as opposed to UL Listing) means the component has been evaluated for use within a larger UL-Listed assembly — standard for wiring duct incorporated into UL-Listed panels and enclosures. RoHS and CE compliance covers deployments in EU-regulated environments and government projects with restricted-substance requirements.
- Lead-Free PVC Construction: Panduit explicitly calls out lead-free PVC — relevant for installers in California (Prop 65 compliance) and for any project where material safety documentation is part of project closeout.
- Upper and Lower Scorelines: Pre-scored sidewall sections allow finger or sidewall removal without a saw — you can open a section mid-run to add conductors during a retrofit without disturbing adjacent wiring. This is a real time-saver on add-on access control readers or camera power feeds added to an existing panel.
- Maximum 122°F (50°C) Continuous-Use Temperature: UL recognized for continuous operation up to 122°F. In practice, this covers nearly all indoor enclosure environments including telecom closets and server room auxiliary panels, but it is not rated for outdoor or high-heat industrial zones without separate thermal analysis.
- Standard Mounting Holes Provided: Pre-drilled mounting holes eliminate field drilling in the duct body — aligns with DIN rail and standard enclosure back-panel hole patterns for faster installation in network and security equipment enclosures.
Integration & Compatibility
The F1.5X1.5WH6 is part of Panduit's Panduct® Type F narrow slot family. The cover is sold separately — specify the matching Panduit Type F cover for a 1.5-inch-wide duct when ordering to complete the assembly. Fittings (elbows, tees, reducers) within the Panduct® Type F line are dimensionally compatible at this width and height, allowing L-turns and branch runs without custom fabrication. For installations requiring cable management accessories such as horizontal managers, vertical organizers, or strain relief, Panduit's broader cable management portfolio integrates with this duct series at the panel level.
This duct is appropriate for low-voltage control wiring, structured cabling in enclosures, and security system head-end organization. It is not a conduit substitute for line-voltage power runs — consult local electrical code for separation requirements when routing control and power conductors in the same enclosure.
Frequently Asked Questions
Q: Is the cover included with the F1.5X1.5WH6?
A: No. The cover is sold separately. You will need to order the matching Panduit Type F cover sized for 1.5-inch-wide duct to complete the assembly.
Q: What flame rating does the F1.5X1.5WH6 carry, and does it meet AHJ requirements for occupied buildings?
A: The F1.5X1.5WH6 carries a UL 94 V-0 flame rating — the highest category under UL 94, meaning the material self-extinguishes in under 10 seconds with no flaming drips. This is the rating most AHJs require for wiring duct installed in occupied commercial buildings and is stricter than the V-2 rating found on lower-grade alternatives.
Q: How many sticks come in a pack, and how long is each piece?
A: Each pack contains 6 sticks. Each stick is 6 feet (1.83 m) long, giving you 36 linear feet per pack — enough for a full head-end cabinet build in most security or access control installations.
Q: Is the F1.5X1.5WH6 RoHS compliant?
A: Yes. The F1.5X1.5WH6 is RoHS compliant, CE compliant, and UL Recognized. It is also made from lead-free PVC, which supports California Prop 65 compliance documentation for project closeout.
Q: What is the maximum operating temperature for the F1.5X1.5WH6?
A: UL recognizes the F1.5X1.5WH6 for continuous use up to 122°F (50°C). This covers standard indoor enclosure environments including IDF closets, server room auxiliary panels, and security head-end cabinets.
Q: Can the sidewalls be modified in the field without cutting tools?
A: Yes. Upper and lower scorelines are built into the duct body, allowing individual finger or sidewall sections to be removed by hand. This makes it practical to add conductors mid-run during retrofit installations without disturbing the surrounding wiring.
The F1.5X1.5WH6 is one of those components I recommend early in a head-end design conversation rather than as an afterthought. The UL 94 V-0 rating on the PVC body is the spec that drives most of our commercial panel builds — when an AHJ inspector shows up and asks for flame class documentation, V-0 is what clears the inspection without a conversation. I've seen V-2-rated duct from lower-tier suppliers fail that check on first visit, which means a re-inspection delay on a project that was otherwise complete.
Technical Highlights:
- Narrow Finger Slot Design: The finger spacing is engineered to match high-density component pitch — this is not a marketing claim, it's a physical design choice that prevents conductor migration between termination points in tight 19-inch panel layouts.
- 1.5" × 1.5" (38.1 mm × 38.1 mm) Cross-Section: Square profile at this dimension handles 12–30 conductor mid-density bundles without compression. Going to a 2-inch profile on a smaller bundle wastes panel real estate; staying at 1 inch forces wires to stack and risks insulation abrasion during future pulls.
- Scoreline Sidewall Removal: Pre-scored upper and lower sections let you open a mid-run section by hand for conductor additions — no saw, no dust, no risk of nicking adjacent insulation during a retrofit access control expansion.
Deployment Considerations:
- Order the matching Panduit Type F cover for 1.5-inch duct at the same time — it is not included in this pack. Forgetting the cover is the most common re-order I see on this part, and it holds up the closeout inspection.
- The 122°F (50°C) continuous-use temperature rating is adequate for indoor enclosures but does not qualify this duct for outdoor panels or heat-generating industrial environments without a separate thermal load calculation.
This duct is the right call for access control head-end builds, security NVR enclosures, and IDF closet panel organization where conductor density is high enough to need finger guidance but not so high that you need a 2-inch profile — a 20–40 conductor landing point in a standard 2U panel section is the sweet spot for the F1.5X1.5WH6.
