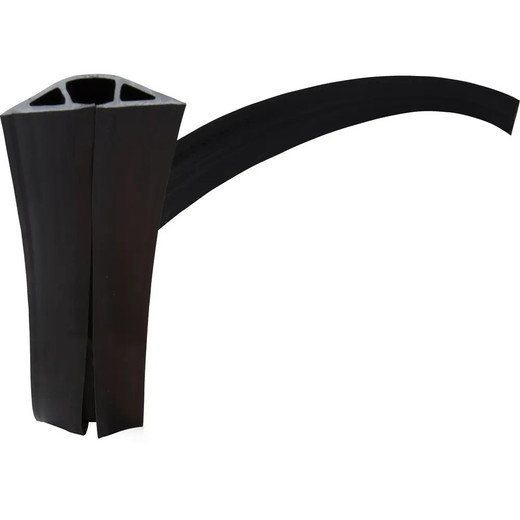

Middle Atlantic Nonmetallic Pancake Overfloor Raceway 50 FT IN Black - BK1200-50

Middle Atlantic BK1200-50 Nonmetallic Pancake Overfloor Raceway 50 ft Black

Overview

The Middle Atlantic BK1200-50 is a 50-foot run of nonmetallic pancake overfloor raceway in black — purpose-built for routing low-voltage cables (Cat5e/6, coax, control wiring) across open floor areas without tearing up tile, carpet, or concrete. At just 0.44 inches tall and 2.5 inches wide, it sits flat enough that foot traffic, rolling carts, and ADA compliance concerns are all manageable in a way that rigid metallic conduit simply isn't. If you need to cross a room cleanly — a conference center, a warehouse floor, a retail showroom — BK1200-50 is the kind of solution that goes in during setup and doesn't become a trip-hazard liability problem two weeks later.

The 1200 Series is part of the Middle Atlantic raceway and cable management line, which is designed for commercial AV, security, and structured cabling environments. TAA compliance is confirmed for this SKU, which matters for federal, GSA, and government-funded installations where Buy American Act sourcing requirements apply.

Key Features

• 50-Foot Length (15.2 m): A single 50-ft roll covers most mid-size conference rooms, retail floor runs, or inter-rack cable paths without splicing. Fewer joints mean less potential for cable pinch points and a cleaner finished appearance — important in customer-facing or inspection-ready environments.
• Low-Profile 0.44-Inch Height: At under half an inch tall, this raceway lies flat enough to pass under standard door sweeps and minimize tripping risk in high-traffic zones. It is the right profile when ADA-compliant floor transitions are a project requirement or when the facility manager will be signing off on the install.
• 2.5-Inch Internal Width: Wide enough to route multiple low-voltage cables side by side — think a Cat6 data run, a coax feed, and a control cable all in one pass — without the cable jam that narrows raceway creates. Plan your fill rate at 40% max for pull-through ease and future adds.
• Nonmetallic Construction: No metal means no ground-loop risk, no corrosion in humid or coastal environments, and lighter handling on long pulls. It also means a standard utility knife scores and cuts clean without metalworking tools on site — faster trim-to-length at termination points.
• Black Finish: The black colorway blends against dark flooring common in commercial cable management runs — data centers, server rooms, broadcast floors, and finished conference spaces. It reads as intentional infrastructure rather than an afterthought.
• TAA Compliant: Verified TAA-compliant for this SKU (BK1200-50), which satisfies procurement requirements on GSA schedules, federal integrations, and education contracts that require Trade Agreements Act sourcing. Document this at bid time — it is a disqualifier if you miss it.

Integration & Compatibility

The BK1200-50 is compatible with standard 1200 Series nonmetallic raceway fittings — flat elbows, inside corners, outside corners, couplers, and end caps — which let you route around obstacles, transition wall-to-floor, and terminate runs cleanly without custom fabrication. Confirm fitting compatibility against the 1200 Series accessory catalog before ordering if your run includes direction changes.

Cable fill is determined by your conductor mix. A 2.5-inch channel comfortably handles three to four Cat6 runs or equivalent coax, but plan the bundle before committing to this profile. If you are running PoE camera cables alongside control wiring, verify bend radius requirements for your specific cables — pancake raceways constrain the vertical profile, and stiff-jacketed cables may fight the flat path at transition points.

For security camera installation projects where cameras are mounted at floor level or on low surfaces and cabling must cross open floor to reach a nearby NVR or switch, this raceway keeps the run code-compliant and presentable. It also works cleanly in temporary deployments — trade show floors, event spaces, pop-up retail — where you need a managed cable path that goes down fast and comes back up without damaging the substrate.

Frequently Asked Questions

Q: Is the BK1200-50 TAA compliant?

A: Yes. The BK1200-50 is verified TAA compliant, making it eligible for GSA schedule procurement and federal or government-funded installations subject to Trade Agreements Act sourcing requirements.

Q: What is the cross-section of the BK1200-50 raceway channel?

A: The BK1200-50 measures 2.5 inches wide by 0.44 inches tall (6.4 cm × 1.1 cm), providing a low-profile flat channel suited for multi-cable low-voltage runs across open floor areas.

Q: How long is one unit of the BK1200-50?

A: Each BK1200-50 unit provides 50 feet (15.2 meters) of raceway — enough to cover most single-room floor runs without splicing.

Q: Can the BK1200-50 be used in government or federal installations?

A: Yes. TAA compliance is confirmed for this SKU, which satisfies procurement requirements on GSA schedules and other government contracts requiring Trade Agreements Act-compliant sourcing.

Q: What types of cables can be routed through the BK1200-50?

A: The BK1200-50 is designed for low-voltage cabling — Cat5e/6 data runs, coaxial cable, and control/signal wiring. The 2.5-inch width accommodates multiple cables side by side; plan fill at no more than 40% capacity for ease of pulling and future adds.

Q: Does the BK1200-50 require special tools to cut and install?

A: No. The nonmetallic construction cuts cleanly with a standard utility knife, so no metalworking tools are needed on site for trimming to length at termination points.

Jerry Tildsen

The spec that drives most of my recommendations on the BK1200-50 is the 0.44-inch height — that is the number that determines whether this raceway works in your specific facility or gets rejected by the facility manager on walk-through. At under half an inch, it clears most commercial door sweeps and sits below the threshold where most AHJs flag a trip-hazard concern. That profile, combined with 50 feet of continuous run, is why I reach for this SKU on conference room cross-floor pulls and retail floor builds where metallic conduit is off the table.

Technical Highlights:

• 0.44-Inch Profile: Passes under standard commercial door sweeps and stays below typical ADA trip-hazard thresholds — the single most important spec for facility acceptance in occupied buildings.
• 50 ft (15.2 m) Per Unit: Eliminates mid-run splices on most single-room deployments; fewer joints means fewer pinch points and a cleaner appearance in customer-facing spaces.
• TAA Compliance (verified for BK1200-50): Locks in eligibility for GSA schedules and government-funded contracts — document it at bid time, not after award.

Deployment Considerations:

• Nonmetallic construction cuts with a utility knife, but plan your termination lengths before the roll goes down — re-cutting in place on a finished floor with foot traffic is slower than measuring twice at the staging area.
• The 2.5-inch width is the constraint to watch on high-density pulls: three Cat6 runs plus a coax is comfortable; add a fourth data cable and you are pushing fill rate past 40%, which creates problems on future adds and makes re-pull harder.

This raceway is the right call for temporary and semi-permanent deployments in occupied commercial spaces — trade show floors, event AV setups, retail pop-ups, and conference room builds where the cable path needs to look intentional and pass a facilities walk-through without remediation.
