Middle Atlantic NM TEE Fitting PN10 White - PN10F15WH

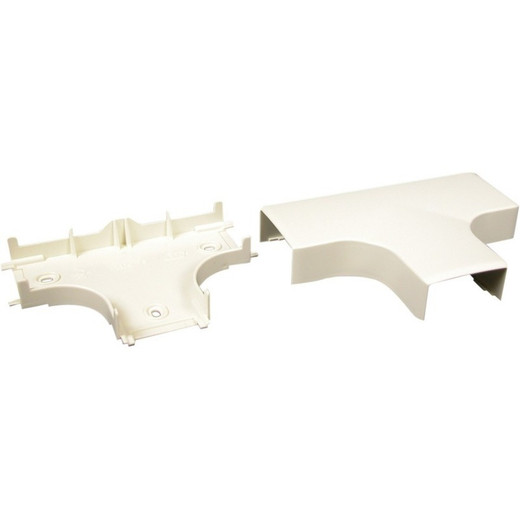

Middle Atlantic PN10F15WH Eclipse PN10 White Tee Fitting for Cable Raceway

Overview

The Middle Atlantic PN10F15WH is a tee fitting designed for the Eclipse PN10 cable raceway system, enabling clean right-angle branch runs wherever a trunk line needs to split off in a new direction. If you're routing structured cabling, low-voltage security wiring, or AV cables along a wall or ceiling and need a perpendicular branch without exposed bends or improvised solutions, this is the purpose-built component for that junction point. It ships in white to match the PN10 series profile, keeping finished installations consistent in open-ceiling offices, classrooms, corridors, and security operations environments where cable management aesthetics matter alongside function.

The PN10F15WH is part of Middle Atlantic's Middle Atlantic Eclipse PN10 raceway line — a surface-mount wire management system built around predictable component geometry so installers can plan runs precisely without field-fabricating transitions. The tee fitting maintains the raceway's internal bend radius, protecting cables at the branch junction rather than forcing sharp bends that stress conductor insulation over time.

Key Features

• Right-Angle Branch Capability: The tee geometry routes a secondary raceway run perpendicular to the main trunk — the practical way to serve a side corridor, wall-mounted device, or equipment drop without breaking the primary run or leaving cables exposed at the junction.
• 1-Inch (25mm) Bend Radius: The internal geometry maintains a 1-inch minimum bend radius at the branch point. That matters for patch cables, fiber jumpers, and shielded security cabling where tight bends degrade signal integrity or crack jacket insulation over repeated thermal cycling.
• Eclipse PN10 Series Compatibility: Designed and dimensioned specifically for the PN10 raceway system — channels, covers, and fittings mate predictably. Mixing raceway brands or series at junction fittings is a common source of misaligned covers and exposed gaps; staying within the PN10 family eliminates that problem.
• White Finish: Matches the standard PN10 white raceway channel and cover for a consistent, finished appearance. Appropriate for structured cabling environments where the raceway is visible — conference rooms, reception areas, open-plan offices, or any space where exposed conduit gray would look unfinished.
• Surface-Mount Form Factor: Installs on finished wall or ceiling surfaces without core drilling or in-wall rough-in work — relevant for retrofit security camera wiring, access control reader cable runs, and intercom installations where you're adding infrastructure to an occupied, finished space.

Integration & Compatibility

The PN10F15WH is a mechanical fitting component; it carries no electrical rating of its own and works with any low-voltage cabling that fits within the PN10 channel interior — typical applications include Cat5e/Cat6 for IP camera and IP security camera runs, access control reader wiring, intercom cable, and AV signal cable. Confirm the PN10 channel cross-section accommodates your cable bundle diameter before specifying quantity; the tee fitting itself does not reduce interior capacity relative to a straight PN10 channel section. This fitting does not include covers — order matching PN10 tee cover components separately to complete the finished assembly.

Frequently Asked Questions

Q: What raceway series is the PN10F15WH compatible with?

A: The PN10F15WH is designed for the Middle Atlantic Eclipse PN10 cable raceway series. It is not dimensioned for other raceway series or third-party systems — use PN10-matched channels, covers, and fittings throughout the run.

Q: Does the PN10F15WH include a cover?

A: No. The tee fitting body is included; tee cover components are ordered separately. Verify you have the matching PN10 tee cover part to complete the finished, closed-raceway look.

Q: What is the bend radius at the branch junction?

A: The PN10F15WH maintains a 1-inch (25mm) minimum bend radius at the tee branch point, which protects sensitive cabling from sharp-bend signal degradation or jacket stress.

Q: What types of cable can run through this fitting?

A: Any low-voltage cabling that fits within the PN10 channel interior — Cat5e, Cat6, shielded security cable, intercom wire, or fiber jumpers. This fitting carries no independent electrical or plenum rating; verify your cable's own ratings meet local code requirements for the installation environment.

Q: Is the PN10F15WH suitable for outdoor installations?

A: The evidence does not confirm an outdoor or wet-location rating for this fitting. It is designed for surface-mount interior applications. Consult Middle Atlantic documentation for environmental suitability before specifying for exterior or high-humidity environments.

Karl Wilson

The PN10F15WH is the fitting I reach for when a PN10 cable raceway run needs to branch at a right angle — it's a small component that prevents a common field problem: installers improvising a branch junction with mismatched fittings or exposed cable loops that fail aesthetics review on day one of a site walkthrough.

Technical Highlights:

• 1-Inch (25mm) Bend Radius: Purpose-built geometry holds cable at the branch point to 25mm — meaningful for Cat6 and shielded runs where tighter bends cause pair untwisting and measurable crosstalk, especially on longer camera or access control cable runs.
• PN10 Series-Specific Fit: Dimensioned to mate with Eclipse PN10 channels and covers precisely — no shimming, no cover gaps, no exposed cable at the junction. That fit precision is why you specify series-matched fittings rather than generic alternatives.
• White Finish Consistency: The white finish matches standard PN10 channel and cover stock, which matters on any installation where the raceway is visible in finished space. A mismatched gray fitting on a white run is the kind of detail that generates a punch-list item.

Deployment Considerations:

• Order the matching PN10 tee cover component alongside this fitting — the PN10F15WH body alone leaves the branch junction open; the finished assembly requires both pieces.
• No outdoor or wet-location rating is confirmed in available documentation — plan this fitting for interior, dry-location surface-mount runs only until you verify environmental suitability with Middle Atlantic spec sheets.

Best deployment fit: retrofit low-voltage security infrastructure in occupied commercial interiors — office corridors, classroom wings, or retail spaces — where surface-mount raceway is the only practical option and a clean, consistent white finish is a client expectation, not an afterthought.
