Middle Atlantic NM Blank END Fitting PN10 - PN10F20FW

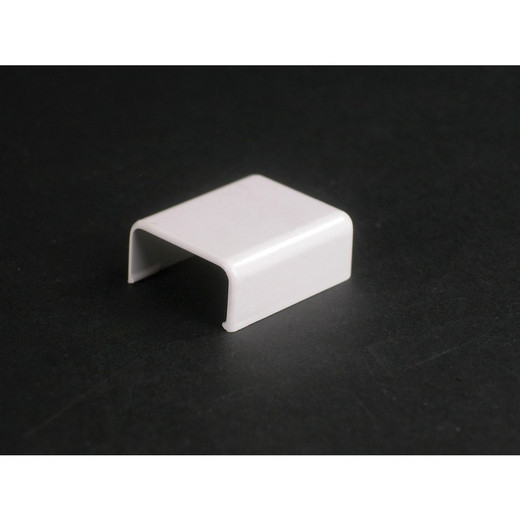

Middle Atlantic PN10F20FW Eclipse PN10 Blank End Fitting — Fog White

Overview

The Middle Atlantic PN10F20FW is a blank end fitting designed specifically for the Eclipse PN10 raceway series. At 11/16" in height and finished in Fog White, it caps open raceway ends with a clean, finished appearance — the kind of detail that separates a professional cable management installation from one that looks like it was left mid-job. If you're deploying PN10 surface raceway in commercial environments where exposed conduit ends are visible to occupants or during inspections, this fitting closes out the run properly.

Blank end fittings are a small line item that often gets missed on purchase orders until the crew is on-site. Having the PN10F20FW on hand before installation day prevents that specific hold-up. It pairs with the broader Middle Atlantic Eclipse PN10 raceway family, which is a common choice for structured cable management in AV, security, and low-voltage commercial builds.

Key Features

• Eclipse PN10 Series Compatibility: Engineered to fit the PN10 raceway profile precisely — a generic end cap won't seat correctly or match the raceway's molded geometry. Using the matched fitting means no gaps, no prying, and no field modifications required.
• Fog White Finish: The Fog White color matches standard PN10 raceway finish, so end fittings don't stand out as mismatched hardware. In office corridors, classrooms, or retail spaces where raceway runs along painted walls, color consistency matters for the finished look.
• 11/16" Height Profile: The low-profile 11/16" height matches the PN10 raceway cross-section, keeping the end cap flush with the raceway body rather than protruding. This matters in high-traffic areas where a protruding fitting becomes a snag point.
• Blank Configuration: No knockout, no entry point — the PN10F20FW is a true terminus. Use it specifically at dead-end raceway runs where no cable entry or exit is needed at that termination point. For runs requiring an entry fitting at the end, a different fitting in the PN10 family is the correct choice.
• Commercial-Grade Construction: Built to Middle Atlantic's standard for low-voltage raceway components — consistent molding dimensions that hold up in commercial environments without warping or discoloring under normal interior conditions.

Integration & Compatibility

The PN10F20FW is part of Middle Atlantic's Eclipse PN10 surface raceway system. It is designed exclusively for PN10-profile raceway. Do not attempt to fit it to PN5, PN7, or other raceway series — the profiles are dimensionally distinct and fittings are not interchangeable. For full PN10 build-outs, also consider PN10 couplings, inside/outside corners, and tee fittings from the same family to complete a properly terminated low-voltage installation.

Frequently Asked Questions

Q: What raceway series is the PN10F20FW compatible with?

A: The PN10F20FW is designed specifically for the Middle Atlantic Eclipse PN10 raceway series. It is not interchangeable with other raceway profiles.

Q: What color is the PN10F20FW?

A: Fog White — the standard finish for the PN10 raceway family, intended to match PN10 raceway runs in commercial interior installations.

Q: What are the dimensions of the PN10F20FW?

A: The fitting is 11/16" in height, matching the PN10 raceway cross-section profile.

Q: Is the PN10F20FW a blank fitting or does it have a cable entry point?

A: It is a blank end fitting — no knockout or entry opening. Use it to terminate dead-end raceway runs where no cable access is needed at that point.

Q: Can I use the PN10F20FW with PN5 or PN7 raceway?

A: No. The PN10F20FW is dimensioned for the PN10 profile only. PN5 and PN7 raceway require their own matched fittings.

Eden Phillips

The PN10F20FW is one of those fittings that experienced integrators stock automatically — the 11/16" Fog White blank end cap that closes out an Eclipse PN10 raceway run cleanly. Miss it on the order and your crew is improvising on-site or making a return trip.

Technical Highlights:

• Profile Match: The 11/16" height is dimensioned to the PN10 raceway cross-section — the fitting seats flush rather than protruding, which matters in occupied commercial spaces where exposed hardware gets noticed.
• Fog White Finish: Matches the standard PN10 raceway color so end fittings don't read as mismatched hardware on a finished wall run — a detail that matters on walkthroughs and inspections.
• Blank Configuration: No entry point by design — this is a true terminus fitting. If your run needs a cable entry at the end, you need a different PN10 fitting; the PN10F20FW is specifically for dead-end terminations.

Deployment Considerations:

• Order these with your PN10 raceway quantity upfront — each run needs at least one end fitting, and forgetting them is one of the most common low-voltage punch-list items.
• The PN10F20FW is not interchangeable with other Middle Atlantic raceway profiles (PN5, PN7). Verify your raceway series before ordering — mixing fittings from different profiles results in poor fit and an unfinished appearance.

Best fit for commercial office, classroom, and retail low-voltage installations running PN10 surface raceway where clean, color-matched terminations are part of the finished deliverable.
