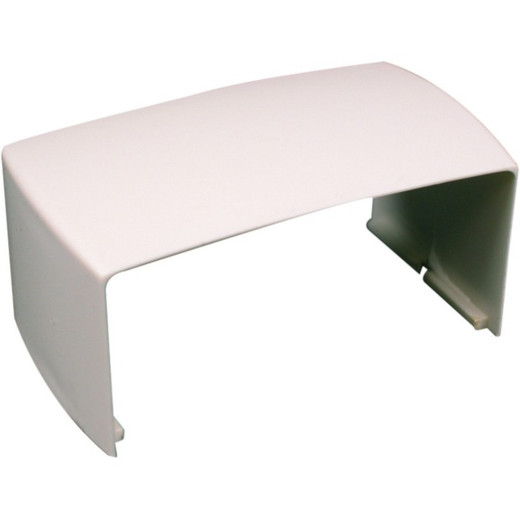

Middle Atlantic NM Cover Clip PN10 Ivory - PN10F06V

Middle Atlantic PN10F06V PN10 Series Raceway Cover Clip Fitting

Overview

The Middle Atlantic PN10F06V is a cover clip fitting designed specifically for the Eclipse PN10 Series raceway system. Its single purpose: cover the joint wherever two lengths of PN10 raceway meet end-to-end. Left unaddressed, raceway joints expose a visible seam that interrupts the clean, continuous appearance expected in finished commercial installations — conference rooms, executive offices, lobbying areas, and structured cabling runs in security and AV environments. The PN10F06V solves that in one small component.

Finished in ivory to match the PN10 Series palette, this clip integrates without the need for paint, adhesive, or improvised cover strips. It is a factory-fit solution for the raceway family it belongs to — install it once, and the joint disappears into the run.

Key Features

• Purpose-built joint coverage: Designed exclusively for PN10 Series raceway connections, the PN10F06V snaps over the joint where two raceway sections meet. This is not a generic cover — it is dimensioned to the PN10 profile, which means it seats flush and stays in place without adhesive or fasteners.
• Ivory color match: Ivory finish aligns with the standard PN10 Series color offering. In environments where raceway runs along painted walls or light-colored surfaces — healthcare corridors, office builds, hospitality interiors — color continuity matters for client sign-off. Mismatched fittings are a common punch-list item; using the matching factory clip eliminates that risk.
• Compact 0.98" depth profile: At 0.98" depth, the PN10F06V adds minimal protrusion over the joint. In wall-mounted raceway runs in tight corridors or near door frames, a low-profile clip avoids snagging and maintains clearance. This depth is sized to the PN10 Series cross-section — it does not add bulk beyond the raceway itself.
• Eclipse PN10 Series system component: The PN10F06V is a named component within the Eclipse PN10 cable management family from Middle Atlantic. Specifying within a single raceway system ensures mechanical compatibility across all fittings, covers, and connectors — mixing raceway components across families introduces fit and finish problems that are difficult to resolve in the field.
• Reduces visible cable management imperfections: In structured cable management installations, the finish quality is often judged by what the client sees — not the infrastructure behind the wall. Exposed raceway joints are a visible tell of incomplete or low-quality installation. The PN10F06V closes that gap, literally and visually.
• Streamlines inspection and walk-through: On projects with client walk-throughs or AV/security system sign-offs, having every raceway joint covered with a matching factory fitting reduces the likelihood of cosmetic punch-list items. A consistent, finished appearance across the entire run signals attention to detail without adding significant installation time.

Integration & Compatibility

The PN10F06V is compatible with the Middle Atlantic Eclipse PN10 Series raceway system. It is designed to cover joints between two PN10 raceway sections. Before ordering, confirm your raceway installation uses the PN10 profile — Middle Atlantic offers multiple raceway series (PN, TC, and others), and cover clips are dimensioned per series. Using a clip from a different profile series will not seat correctly.

For integrators building out full PN10 runs, pair the PN10F06V with other PN10 Series fittings — inside corners, outside corners, flat elbows, and end caps — to maintain a uniform finished appearance end-to-end. All fittings in the same series share the same color batch and profile geometry. Browse the full Middle Atlantic cable management line for compatible raceway components, or review a cable management planning guide for layout and fitting selection guidance on commercial runs.

This component is not compatible with PN10 Series raceway used in outdoor or wet-location environments unless the raceway system itself is rated for that application. Verify the base raceway installation rating before selecting fittings for any exposed or semi-exposed location.

For security and AV integrators routing camera power cables, speaker wire, or low-voltage control runs along finished walls, the PN10F06V completes the finished look on PN10 raceway systems. Pair with a PoE switch and structured cabling plan to keep the full low-voltage run organized and compliant.

Frequently Asked Questions

Q: What raceway series is the PN10F06V compatible with?

A: The PN10F06V is designed for the Middle Atlantic Eclipse PN10 Series raceway system. It is not interchangeable with other Middle Atlantic raceway series profiles such as the TC or standard PN lines. Confirm your installed raceway series matches PN10 before ordering.

Q: What does the PN10F06V actually do — what problem does it solve?

A: It covers the joint where two sections of PN10 Series raceway meet end-to-end. Without a cover clip, the joint between raceway sections is visible as an open seam. The PN10F06V snaps over that joint and provides a continuous, finished appearance along the raceway run.

Q: What color is the PN10F06V?

A: Ivory. This matches the standard ivory color option in the Middle Atlantic PN10 Series raceway family. If your raceway installation uses a different color variant, verify the matching clip color before ordering.

Q: What is the depth dimension of the PN10F06V?

A: The PN10F06V has a depth of 0.98 inches. This reflects the cross-section profile of the PN10 Series raceway it is designed to cover.

Q: Does the PN10F06V require tools or adhesive to install?

A: The PN10F06V is a clip fitting designed to seat over the PN10 raceway joint. No adhesive is specified for this component. It is a mechanical fit component within the PN10 Series system. Refer to Middle Atlantic installation documentation for the PN10 Series for precise installation steps.

Q: Can the PN10F06V be used outdoors?

A: The PN10F06V is a cable management fitting. Suitability for outdoor use depends on the rating of the base PN10 Series raceway installation. Verify the full system's environmental rating before using any PN10 Series fittings in outdoor, wet, or damp locations.

Jerry Tildsen

The PN10F06V is the kind of component that gets overlooked in the bill of materials and then flagged on the punch list — a 0.98"-deep cover clip for PN10 Series raceway joints that makes the difference between a finished installation and one with open seams along every wall run. I specify it on every PN10 project where client walk-through sign-off is required.

Technical Highlights:

• PN10 Series fit precision: Dimensioned to the Eclipse PN10 profile geometry — the 0.98" depth matches the raceway cross-section, so the clip seats flush over the joint rather than leaving a proud edge or gap. Generic cover solutions for other profiles will not achieve this fit.
• Ivory color consistency: Factory ivory finish matches the PN10 Series color batch. Field-painting or using an off-color substitute introduces visible variation under directional lighting — a common punch-list item on finished commercial walls that is entirely avoidable with the correct catalog part.
• System-component sourcing: Ordered as a named PN10 Series component, the PN10F06V guarantees dimensional compatibility with the rest of the Eclipse PN10 fitting family — inside/outside corners, flat elbows, end caps. Mixing across series is the primary source of fit problems on raceway runs in the field.

Deployment Considerations:

• Count your joints before ordering — each raceway section end-to-end connection requires one PN10F06V. On a long wall run with multiple 6-foot or 8-foot raceway sections, the clip count adds up quickly and is frequently underestimated in the initial BOM.
• Confirm your raceway color variant before ordering: the PN10F06V is ivory. Middle Atlantic PN10 Series is also available in other colors; ordering the wrong color clip on a white or light gray raceway installation is a common field error that requires a reorder.

The PN10F06V is the right specification for commercial AV and security integrators completing PN10 raceway runs in client-facing spaces — conference rooms, executive suites, and lobbying areas — where finish quality is part of the deliverable and open raceway joints are not acceptable on sign-off.
