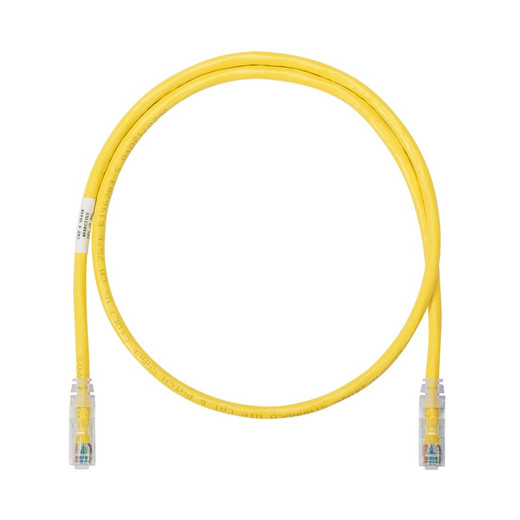

Panduit NK6PC14YLY Cat 6 14ft Yellow Patch Cord

Panduit NK6PC14YLY NetKey Cat 6 UTP Patch Cord

The Panduit NK6PC14YLY is a 14-foot Category 6 UTP patch cord engineered for high-density network deployments where color-coding, latch durability, and verified performance matter. Part of the NetKey copper system, this yellow jumper ships 100% performance-tested against TIA-568-C.2 and ISO 11801 standards, eliminating the field-testing step on every drop. The patented tangle-free latch and slender strain-relief boot reduce snag risk in congested patch panels and allow tighter bend radii than bulky boots—critical in 1U panels or shallow network cabinets where every millimeter counts.

Key Features

• 100% factory performance-tested to Category 6 channel specs (TIA-568-C.2, ISO 11801 Class E)
• Patented tangle-free latch design reduces breakage during adds/moves/changes
• Slender strain-relief boot enables high-density patching in 1U panels and shallow cabinets
• 24 AWG stranded copper conductors for flexibility in short-run patch applications
• Yellow jacket for instant visual identification in multi-VLAN or segregated networks
• CM flammability rating for general building riser and horizontal applications
• Supports Gigabit Ethernet (1000BASE-T), PoE/PoE+ (IEEE 802.3af/at), VoIP, and 622 Mb/s ATM
• cULus Listed (UL 1863, CSA C22.2), CE compliant, RoHS compliant

Panduit's NetKey Cat 6 patch cords use 24 AWG stranded copper conductors in an unshielded twisted-pair (U/UTP) construction, terminated with RJ45 modular plugs on both ends. Each cord is factory-tested for insertion loss, return loss, NEXT, and DC loop resistance across the full 1–250 MHz bandwidth—verification that appears on the product label. This eliminates the gamble of field-assembled or budget-brand cords that may pass basic continuity but fail margin on crosstalk or return loss, causing intermittent link drops under PoE load or Gigabit speeds. The CM (communications) flammability rating meets NEC Article 800 for general horizontal and riser use; for plenum spaces, specify Panduit's CMP-rated equivalent. The stranded conductor construction provides the flexibility needed for repeated flexing in patch-panel environments, unlike solid conductors designed for permanent in-wall runs.

The 14-foot length bridges the gap between short 7-foot patch-panel-to-switch jumpers and the 25-foot runs needed to reach across racks or down to floor-mounted equipment. In IP surveillance and access control installations, this length covers camera-to-midspan PoE injector connections, VoIP phone drops from ceiling grid to desk, and cross-connects between network switches and access control panels in the same rack. The yellow jacket integrates into color-coded cabling schemes—common in datacenter and IT/AV environments where VLANs, security zones, or device types are visually separated (e.g., yellow for cameras, blue for access control, red for management). Panduit's patented tangle-free latch uses a snag-resistant design that survives bundle routing through cable managers and tight-radius bends without the latch breaking off—a chronic failure mode in high-density 48-port panels where traditional boots catch on adjacent cords. The slender boot profile saves roughly 15% panel depth compared to over-molded competitors, allowing full port utilization in shallow wall-mount cabinets or 1U patch panels with limited rear clearance.

Compliance with ANSI/TIA-1096A and IEC 60603-7 ensures mechanical and electrical interoperability with both legacy and current RJ45 jacks, including keystone, patch-panel, and device-integrated ports. IEEE 802.3af/at support confirms the cord can carry up to 30 watts of PoE+ power without voltage drop or heating issues—critical for powering IP cameras, access points, and VoIP phones. For integrators managing multi-vendor environments, Panduit's 10-pack carton quantity and consistent performance across the NetKey line simplify inventory and reduce the per-drop cost of pre-tested, warrantied assemblies versus field-terminated alternatives.
