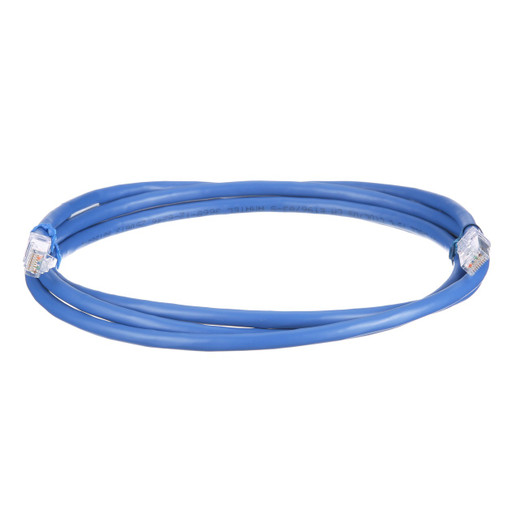

Panduit UTP6AX14BU Cat 6A Patch Cord 14ft Blue

Panduit UTP6AX14BU Cat 6A Patch Cord

The Panduit UTP6AX14BU is a 14-foot Category 6A unshielded patch cord engineered for 10Gbase-T Ethernet and PoE++ deployments in enterprise IDFs, datacenter top-of-rack switching, and IP security equipment rooms. Built with 24 AWG solid copper conductors and high-cycle-rated modular plugs, this blue CM-rated cord addresses three installation pain points: alien crosstalk interference in high-density patch fields, snag-prone retention latches that slow moves-adds-changes, and the documentation gaps that turn simple port tracing into hour-long troubleshooting sessions. RapidID pre-printed barcodes on each plug boot integrate with Panduit's port-mapping software to eliminate hand-transcription errors during commissioning and MAC work.

Key Features

• 10Gig-certified Cat 6A U/UTP construction with solid 24 AWG conductors—exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA requirements through 500 MHz
• Tangle-free latch design with molded boot prevents snags when routing through crowded 1U patch panels and cable management arms
• RapidID pre-installed barcodes on plug boots enable scan-to-document port mapping, eliminating manual labeling and DCIM transcription errors
• 0.250-inch (6.4 mm) diameter for high-density routing in vertical and horizontal cable managers without exceeding 40% fill ratio
• PoE++ (IEEE 802.3bt Type 3/4) compatible—supports up to 60W+ delivery without conductor gauge derating across 100-meter channels
• 2,500-cycle plug rating—5× the TIA-568.2-D minimum—ensures contact integrity in high-churn environments
• CM flammability rating per UL 1863 for in-building horizontal installations and plenum-equivalent spaces when paired with rated backbone cable

The UTP6AX14BU uses solid 24 AWG copper conductors in an unshielded twisted pair (U/UTP) configuration. While unshielded, the cable's tight twist rates and 0.250-inch jacket diameter limit alien crosstalk (ANEXT) to meet Category 6A requirements through 500 MHz—critical for maintaining 10Gbase-T bit error rates below 10⁻¹² in thermally dense IDF closets where 40+ ports share a single rack. The modular plugs maintain less than 0.2Ω contact resistance across insertion cycling and temperature swings from 0°C to 60°C, ensuring consistent PoE power delivery and return loss performance above 250 MHz. Solid conductors (versus stranded) deliver lower DC loop resistance—approximately 18Ω per 100 meters versus 25Ω for stranded equivalents—which translates to 0.4 dB less insertion loss at 500 MHz and better signaling margin when operating near the 10Gbase-T receiver sensitivity threshold of -16 dBm.

This 14-foot length bridges typical rack-to-switch distances in enterprise IDFs and security equipment rooms—long enough to accommodate vertical cable management arms, offset patch panel mounting, and proper service loop dressing, yet short enough to avoid the heat-trapping coils and EMI coupling issues that plague over-length patch cords in 42U racks. The tangle-free latch uses a strain-relief boot that shields the RJ45 retention clip from snagging on adjacent jack housings, zip ties, or Velcro straps; installers can route cables through crowded 1U panels without the plug catching or requiring needle-nose pliers for extraction. RapidID barcodes are laser-printed directly onto the plug boot during manufacturing, creating a machine-readable asset tag that integrates with Panduit's RapidID software for automated port mapping. Scan the barcode during installation, and the software populates switch port assignments, VLAN configs, and asset location fields in DCIM platforms—eliminating the manual label printing and hand-transcription steps that cause 15-20% of port documentation errors in post-deployment audits.

The blue jacket follows TIA-606-B color-coding conventions for horizontal network links, simplifying visual tracing in mixed-vendor racks and reducing wrong-port connection errors that trigger after-hours troubleshooting calls. For IP security integrators, this cord serves as a known-good test jumper when commissioning PoE++ cameras: the 24 AWG solid conductors and full 100-meter channel budget leave margin for voltage drop even when delivering 60W to Axis Q-series PTZs or 90W to Hanwha multi-sensor domes at the far end of a 90-meter horizontal run. The CM flammability rating meets NEC Article 800 requirements for general-purpose in-building cable and qualifies for use in plenum-return spaces when installed as equipment cords (less than 10 feet exposed) or when the backbone horizontal cable carries a CMP rating.

Panduit's TX6A patch cord line is one of the few families with published alien crosstalk test data and third-party 10Gbase-T interoperability validation from the University of New Hampshire InterOperability Lab (UNH-IOL). The UTP6AX14BU meets IEEE 802.3bt Type 4 thermal loading specs without requiring conductor gauge derating—meaning integrators can run 90W PoE loads across 100-meter channels without exceeding the 10°C temperature rise limit that triggers link speed fallback on managed switches. For datacenter and enterprise network teams managing structured cabling plants with mixed 1G/10G endpoints, this cord provides certified 10Gbase-T headroom while maintaining backward compatibility with 1000Base-T and PoE/PoE+ devices, future-proofing patch field investments as IP camera resolutions and access point power requirements continue to climb.
