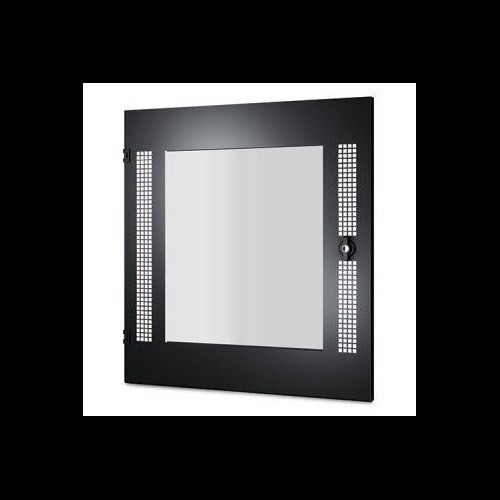

APC by Schneider Electric AR8356 NetShelter WX 13U Tempered Glass Front Door

Overview

The AR8356 is a replacement tempered glass front door engineered specifically for APC NetShelter WX 13U wall-mount enclosures. If your existing door is damaged, missing, or you are upgrading from a solid panel to a glass front for visual equipment status checks without opening the enclosure, this is the direct replacement part. At 23.5 x 19.6 inches and 38 lbs, it is a precision-fit component — not a universal aftermarket part — so it installs without modification and maintains the structural and aesthetic integrity of your APC by Schneider Electric enclosure line.

Glass front doors serve a practical function in server rooms, IDF closets, and network equipment rooms: technicians can visually confirm LED status indicators, cable routing, and equipment activity without breaking the enclosure seal every time. For environments where the WX enclosure is wall-mounted in a hallway, reception area, or utility space where aesthetics matter, the tempered glass front also presents a cleaner, more professional appearance than a vented steel panel.

Key Features

• Tempered Glass Construction: Tempered glass is significantly harder to shatter than standard glass under incidental contact — an important consideration in high-traffic areas like building corridors or shared server rooms where the enclosure may be bumped by carts or foot traffic. If it does break, it fractures into small blunt pieces rather than sharp shards, reducing injury risk.
• 13U Form Factor — Exact Fit: Sized at 23.5 x 19.6 inches to match the NetShelter WX 13U enclosure footprint precisely. Using a correctly sized replacement door ensures the locking mechanism, hinges, and frame alignment work as designed. A mismatched door creates gaps that compromise dust management and cable containment.
• 38 lb Rated Weight: At 38 lbs, this door is heavier than a vented steel alternative, which is worth accounting for during installation. Confirm your wall-mount bracket and anchor points are rated for the combined enclosure and door weight before re-hanging. Most standard WX wall installations handle this without issue, but older drywall anchors may need upgrading.
• Visual Equipment Monitoring: The glass panel lets you check power LED states, switch link lights, and UPS status at a glance without unlocking and swinging the door open. In environments where the enclosure is locked for physical security, this means faster triage during an outage — you can see whether the problem is a dead switch or a tripped breaker before touching anything.
• Direct Replacement for NetShelter WX enclosures: Designed as a factory-matched replacement door for the NetShelter WX 13U series. No drilling, no adapter brackets, no modifications required. Install follows the same hinge and latch points as the original door.

Integration and Compatibility

The AR8356 is compatible with APC NetShelter WX 13U wall-mount enclosures. Before ordering, verify your enclosure is the 13U WX variant — APC produces the NetShelter WX in multiple unit sizes (6U, 9U, 12U, 13U, and larger), and doors are not interchangeable across sizes. The 23.5 x 19.6-inch panel dimension is your confirmation check. If you are managing a mixed environment of network and security equipment across several enclosure sizes, confirm the exact model of each enclosure before ordering replacement doors.

For facilities teams managing spare-parts inventories across multiple sites, the AR8356 is a logical item to stock alongside APC power and enclosure accessories — replacement doors are frequently the first casualty of a move, a forklift incident, or a theft recovery where the enclosure is returned without the door. Having one on the shelf avoids a week-long procurement delay when the enclosure is needed back in service immediately.

Frequently Asked Questions

Q: Which APC enclosures is the AR8356 compatible with?

A: The AR8356 is designed for APC NetShelter WX 13U wall-mount enclosures. The panel measures 23.5 x 19.6 inches. It is not interchangeable with other WX sizes (6U, 9U, 12U, etc.) — verify your enclosure unit size before ordering.

Q: What material is the door panel on the AR8356?

A: The front panel is tempered glass. Tempered glass is more impact-resistant than standard glass and, if broken, fractures into small blunt fragments rather than sharp shards.

Q: How heavy is the AR8356, and does it affect wall-mount load ratings?

A: The AR8356 weighs 38 lbs. Add this to the weight of your enclosure and installed equipment when calculating total wall-mount load. Verify your bracket and anchor point ratings before installation, particularly if the existing installation used minimum-rated hardware.

Q: Can I use the AR8356 to replace a vented steel door on my NetShelter WX 13U?

A: Yes — the AR8356 is a direct-fit replacement using the same hinge and latch points as the original door, whether your current door is vented steel or glass. No modifications are required.

Q: Does the AR8356 include a lock?

A: The source evidence does not specify lock hardware included with the AR8356. Contact your supplier or APC directly to confirm whether the latch and lock cylinder are included or whether your existing hardware transfers from the old door.

Ted Perry

The AR8356 comes up most often in two scenarios in my experience: a damaged door after a move or equipment swap, and a deliberate upgrade from a solid panel to glass on enclosures that live in shared or semi-public spaces. At 38 lbs and 23.5 x 19.6 inches, this is a purpose-built replacement for the NetShelter WX 13U — not something you adapt to fit.

Technical Highlights:

• Tempered Glass Panel: Tempered construction handles incidental impacts in high-traffic utility closets better than standard glass. More practically, it lets you read switch link lights and UPS status LEDs without breaking the enclosure lock every time someone needs a visual check.
• Exact 13U Fit (23.5 x 19.6 in): The dimensions match the WX 13U frame precisely, which means the hinge points and latch engage correctly. An off-spec door creates air gaps that undermine any cable management discipline you have in the enclosure.
• 38 lb Door Weight: Heavier than a vented steel alternative. That weight is worth noting before you re-hang the enclosure — your wall anchors and bracket need to carry the combined load of the enclosure, installed equipment, and this door.

Deployment Considerations:

• Confirm your enclosure is specifically the 13U WX variant before ordering. APC builds the WX in multiple sizes, and the door dimensions differ across the line — a 9U or 12U door will not seat correctly in a 13U frame.
• The 38 lb door weight is a real installation factor in drywall or older masonry installations. If the original installation was done to minimum spec, re-evaluate anchor ratings before adding this door back to an already-loaded wall-mount.

The AR8356 is the right call for NetShelter WX 13U deployments in IDF closets or shared equipment rooms where staff need routine visual access to indicator lights without a key — a glass front eliminates unnecessary door cycles and keeps the enclosure secured between actual service visits.
