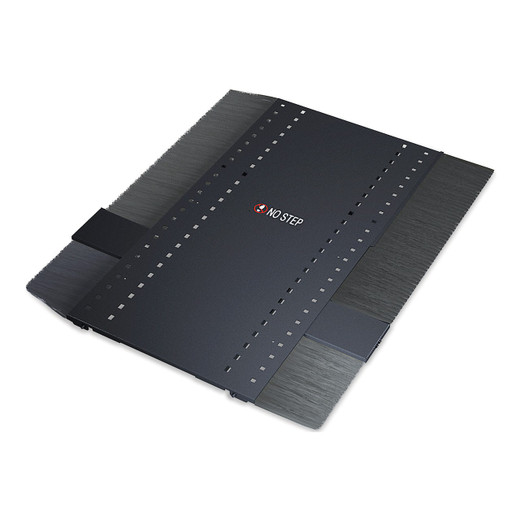

APC by Schneider Electric Netshelter SX 750MM Wide X 1070MM Deep Networking Roof - AR7252

APC by Schneider Electric AR7252 NetShelter SX 750MM Wide Networking Roof Panel

Overview

The AR7252 is a dedicated roof panel for APC by Schneider Electric NetShelter SX enclosures — specifically the 750mm-wide by 1070mm-deep cabinet footprint. If you're building out a structured cabling overhead entry point or need to close the top of an open-frame NetShelter SX for airflow management or cable routing discipline, this is the purpose-fit piece for that cabinet family. At 724mm wide by 908mm deep by 24mm tall, it seats flush into the top of the enclosure without shimming or field modification.

The panel ships in black and carries RoHS certification, consistent with the broader network rack enclosure line. Package dimensions of 813 × 108 × 1003mm with a shipping weight of 9.55 kg (approximately 21 lbs) give you a concrete sense of what arrives on the dock — no surprises at receiving.

Key Features

• Exact-fit dimensions (724 × 908 × 24mm): Purpose-built for the 750mm-wide, 1070mm-deep NetShelter SX cabinet — installs without cutting, shimming, or field modification. Getting the right roof panel matters when you're sealing a pressurized cold-aisle or managing top-cable egress cleanly.
• RoHS certification: Meets Restriction of Hazardous Substances requirements, which is a procurement checkbox for many enterprise and government deployments with environmental compliance mandates.
• Black finish: Matches the standard NetShelter SX enclosure aesthetic — relevant when racks are customer-visible in data halls or colocation environments where uniformity matters.
• 9.55 kg shipping weight: Manageable single-person lift for installation in an overhead position; no lift equipment required for typical data center ceiling heights.

Integration & Compatibility

The AR7252 is designed for the NetShelter SX rack enclosure accessory ecosystem. Verify your cabinet is the 750mm wide × 1070mm deep NetShelter SX variant before ordering — APC produces roof panels across multiple width and depth configurations, and the wrong panel will not seat correctly. Consult the APC NetShelter SX product family documentation to confirm your cabinet model against this panel's 724 × 908mm contact footprint.

Frequently Asked Questions

Q: What cabinet dimensions does the AR7252 fit?

A: The AR7252 is sized for APC NetShelter SX enclosures that are 750mm wide by 1070mm deep. The panel itself measures 724mm wide by 908mm deep by 24mm tall.

Q: Is the AR7252 RoHS compliant?

A: Yes. The AR7252 carries RoHS certification as listed in the product specifications.

Q: What color is the AR7252?

A: Black, matching the standard NetShelter SX enclosure finish.

Q: How much does the AR7252 weigh for shipping purposes?

A: The packaged shipping weight is 9.55 kg (approximately 21 lbs). Package dimensions are 813 × 108 × 1003mm.

Q: Will the AR7252 fit a 600mm wide NetShelter SX cabinet?

A: No. This panel is sized for the 750mm-wide footprint. APC offers separate roof panel SKUs for 600mm-wide NetShelter SX enclosures — verify your cabinet width before ordering.
