APC by Schneider Electric AR7505 Cable Tree for NetShelter SX
Overview

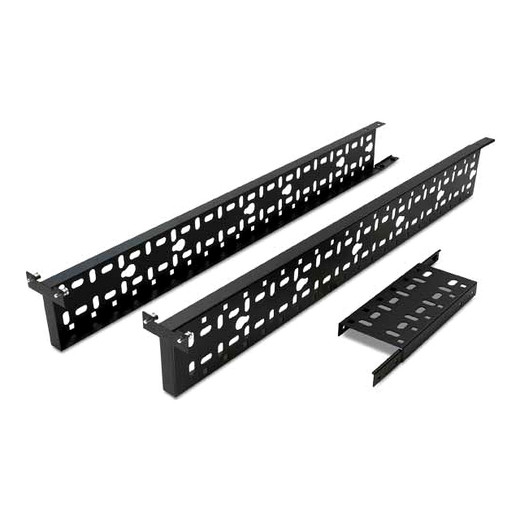

The APC AR7505 is a vertical mount cable management accessory designed specifically for APC NetShelter SX enclosures. It provides a structured pathway for routing and organizing network and power cables within the rack, preventing tangles and simplifying maintenance. This accessory is crucial in high-density deployments where efficient cable management directly impacts airflow and accessibility. The AR7505 model features a black finish and mounts vertically within the enclosure, utilizing available depth to create separation and order for cabling runs. Its compact 2.99-inch dimension ensures it fits without consuming excessive rack space.
Compatibility
This cable tree is engineered for direct integration with APC NetShelter SX server rack enclosures. It is designed to work with the internal mounting points of these specific racks, ensuring a secure and stable installation. While not compatible with other rack brands or NetShelter WX/ES models, it offers a seamless fit within the intended SX series, facilitating organized cable runs for servers, switches, and patch panels.
Installation Notes
The AR7505 utilizes a vertical mounting scheme, attaching to the internal vertical mounting rails or designated attachment points within the APC NetShelter SX enclosure. Installation requires no specialized tools beyond standard rack mounting hardware and potentially a screwdriver for securing any integrated clips or brackets, depending on the specific SX model. Ensure the enclosure is powered down and all equipment is stable before beginning installation.
What's in the Box
- 1x APC AR7505 Cable Tree
- Mounting hardware (specifics may vary by enclosure model)
