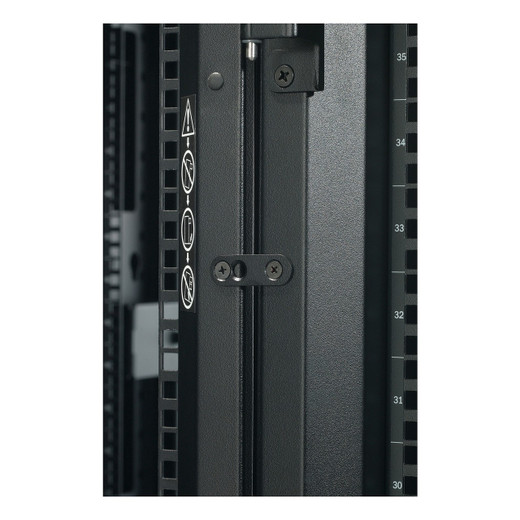

APC by Schneider Electric AR3307X617 NetShelter SX 48U Rack Enclosure
Overview
The APC by Schneider Electric AR3307X617 is a 48U, 600mm-wide by 1200mm-deep open-frame-style rack enclosure from the NetShelter SX line — a proven physical infrastructure platform used in server rooms, network closets, and data center deployments where standardized rack density and cable management matter. At 360 lbs shipping weight, this is a full-size, commercial-grade enclosure built for long-term, high-density installations.
The 1200mm depth accommodates deep networking and compute equipment — including most 1U and 2U servers, high-density patch panels, and UPS units — without forcing creative cabling or equipment overhang. The 600mm width aligns with standard rack footprints, fitting within common raised-floor grid layouts and aisle containment systems.
Key Features
- 48U Usable Height: 48 rack units gives you enough vertical space to build a fully populated mixed-use rack — compute, switching, patch, and power management — without stacking multiple enclosures or overprovisioning floor space.
- 600mm Width: Matches standard EIA-310 rack spacing and common aisle containment systems, so this unit fits existing data center footprints without custom adapters or modified cable trays.
- 1200mm Depth: Supports deep servers and modular switching chassis that a 900mm or 1000mm enclosure cannot accommodate — important when deploying enterprise networking gear or 2U compute nodes with rear cable management arms.
- Commercial Build Weight (360 lbs): The 360 lb shipping weight reflects a heavy-gauge steel construction intended for permanent, high-load installations rather than temporary or light-duty deployments. Plan floor load capacity accordingly — especially on raised access flooring.
Integration & Compatibility
The AR3307X617 is compatible with the broader APC NetShelter SX accessory ecosystem, including side panels, roof/chimney kits, blanking panels, and APC power distribution units. As part of the APC by Schneider Electric rack infrastructure line, it integrates with APC's InfraStruXure and EcoStruxure data center management frameworks. This enclosure is suited for structured deployments alongside network rack enclosures requiring consistent cable management and airflow control.
For buyers planning high-density PoE or compute deployments, pair this enclosure with a reviewed data center power strategy — a 48U rack fully populated with 1U servers or PoE switches will draw significant amperage, and the rack itself has no built-in power management without a separately sourced APC PDU.
Frequently Asked Questions
Q: What does the "600mm Wide x 1200mm Deep" in the AR3307X617 name mean for my deployment?
A: The 600mm width is the external rack width — standard for most data center aisle layouts and compatible with common containment systems. The 1200mm depth means this enclosure can house even deep rack servers and networking equipment that shorter 900mm or 1000mm racks cannot fit without workarounds.
Q: What is the shipping weight of the AR3307X617?
A: The AR3307X617 ships at 360 lbs. This reflects the heavy-gauge steel frame of the NetShelter SX line. Factor this into receiving dock logistics and floor load planning, especially on raised access flooring.
Q: Is the AR3307X617 compatible with APC PDUs and other NetShelter SX accessories?
A: Yes. The AR3307X617 is part of the NetShelter SX family, which supports a wide range of APC rack accessories including PDUs, side panels, roof units, and containment components. Confirm specific accessory compatibility against APC's current NetShelter SX accessory guide.
Q: How many rack units are available in the AR3307X617?
A: The AR3307X617 provides 48U of usable rack space, making it one of the taller standard configurations in the NetShelter SX line — suitable for fully populated mixed-use racks including compute, switching, patch, and power management equipment.
The AR3307X617 is a straightforward infrastructure buy for teams that need 48U of standardized rack space in a 600x1200mm footprint — the 1200mm depth is the spec that drives most of these decisions. At 360 lbs shipped, this is a permanent installation enclosure, not something you're repositioning after the fact.
Technical Highlights:
- 48U Height: Enough vertical real estate to consolidate a full edge or secondary data room stack — compute, core switching, patch, and APC PDUs — into a single enclosure without splitting across two racks and doubling cable management complexity.
- 1200mm Depth: The spec that matters most when specifying against deep chassis. 900mm and 1000mm enclosures force compromises on rear cable management arms and high-port-count switching gear; 1200mm avoids that entirely.
- 360 lbs Shipping Weight: Plan for this at delivery. Two-person lift minimum, pallet jack recommended, and verify your raised floor tile load rating before positioning — a fully populated 48U rack in a 1200mm deep enclosure will exceed most standard tile ratings.
Deployment Considerations:
- The AR3307X617 is designed for the NetShelter SX accessory ecosystem — budget for side panels, blanking panels, and a matched APC PDU from the same line if this is going into a contained hot/cold aisle environment.
- At this size and weight, rough-in coordination matters: confirm door clearance, loading dock access, and final room placement before the unit ships — repositioning a 360 lb enclosure after installation is a two-crew job.
Best fit for a dedicated server room or secondary data closet build-out where the installation is permanent, the equipment is deep, and the team wants a single-vendor rack and power management solution from APC's commercial infrastructure line.
