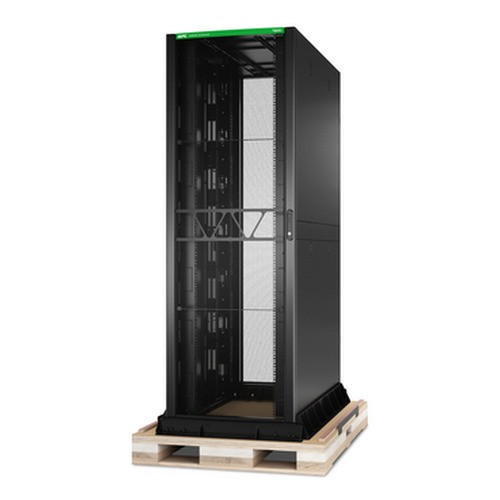

APC Netshelter SX GEN 2 High Strength Rack 48U 2258H X 750W X 1295D MM with - AR9557SPB2

APC by Schneider Electric AR9557SPB2 NetShelter SX Gen 2 48U High-Strength Rack Enclosure

Overview

The APC by Schneider Electric AR9557SPB2 is a 48U open-frame rack enclosure engineered for high-density data center, network closet, and infrastructure deployments where structural integrity and equipment compatibility are non-negotiable. Standing 2,256 mm (88.8 in) tall and accepting mounting depths from 11.5 in to 45 in, this enclosure accommodates everything from shallow patch panels to deep dual-socket servers without requiring a different rack frame. If you're building out a compute room, a security operations backbone, or a large-scale network infrastructure deployment, the AR9557SPB2 is sized for the task.

This is a Tier 1 commercial-grade enclosure — not a lightweight co-location shelf. The 12-gauge EIA mounting rails and 16-gauge door and post construction mean the frame itself won't flex under loaded conditions, which matters when you're bolting in dense UPS arrays, high-density switches, or multiple blade chassis. The NetShelter SX Gen 2 line represents APC's current-generation rack platform; browse the full APC by Schneider Electric catalog for compatible PDUs, blanking panels, and airflow accessories.

Key Features

• 4,250 lb Static / 3,500 lb Dynamic Load Rating: Static capacity of 4,250 lb (1,927.8 kg) and dynamic (rolling) capacity of 3,500 lb (1,587.6 kg) means you can fully populate this rack with high-density equipment and still relocate it on its pre-installed casters without worrying about structural failure — a real advantage during staged buildouts or data center moves.
• 48U Height (2,256 mm / 88.8 in): 48 rack units gives you enough vertical real estate to stack a full compute stack — servers, top-of-rack switches, patch panels, KVM, and a modular UPS — without running out of space mid-deployment. If your equipment list tops out at 42U, a shorter frame saves floor-to-ceiling clearance; 48U is the right call when you know the rack will fill up over time.
• 11.5 in to 45 in Mounting Depth Range: The adjustable depth range (292 mm to 1,143 mm) covers virtually every standard 19-inch rackmount form factor on the market. Deep 2U servers, extended-depth storage arrays, and shallow network appliances all mount without adapters or custom brackets — useful when a rack serves a mixed equipment load.
• 12-Gauge EIA Mounting Rails: Heavier gauge rails distribute point loads more evenly than the 14- or 16-gauge rails found in lighter enclosures. Under a fully loaded configuration with multiple high-density 2U/4U servers, the stiffer rail prevents racking stress that can cause misalignment or binding on sliding rails over time.
• 16-Gauge Front Door and Posts, 18-Gauge Rear/Roof/Side Panels: The structural members (door, posts) carry higher gauge steel than the enclosure skin panels — an intentional design choice that puts material where it counts for load-bearing and impact resistance while keeping overall weight manageable.
• Pre-Installed Casters and Leveling Feet: Ships with casters already mounted, so you can roll the rack into position and then drop the leveling feet for a stable, vibration-damped installation. No need to order mobility kits separately for initial positioning.
• TAA and BAA Compliant via COTS: Meets Trade Agreements Act and Buy American Act requirements through Commercial Off-The-Shelf provisions — a requirement for federal, defense, and many state/local government procurement vehicles. Verify your specific contracting vehicle's documentation requirements, but the compliance status is confirmed for this SKU.
• EIA-310E and UL 2416 Standards: EIA-310E ensures universal 19-inch equipment compatibility. UL 2416 covers the rack enclosure safety standard — relevant for insurance, data center operator requirements, and facilities sign-off in regulated environments.
• Standard 19-Inch Rack Width: All rackmount equipment — switches, servers, PDUs, patch panels, KVM drawers — mounts directly without adapters. No proprietary rail system to work around.

Integration and Compatibility

The AR9557SPB2 is compatible with APC's NetShelter SX accessory ecosystem including baying hardware (included), side panels (included), and the full range of APC rack PDUs, blanking panels, and cable management accessories. The 19-inch EIA-310E rail system accepts any standards-compliant rackmount equipment from any vendor. The included baying hardware allows adjacent rack enclosures to be bolted together into a row configuration, which is standard practice in structured server rack enclosure deployments.

For power distribution inside the rack, APC's Switched and Metered Rack PDUs mount directly to the vertical mounting channels. Cable management arms, horizontal lacing bars, and vertical cable managers from the NetShelter accessory line attach without modification. If you're pairing this rack with APC UPS systems, uninterruptible power supplies in the Smart-UPS RT and Symmetra families are sized to mount in the 48U bay. Airflow blanking panels — critical for hot-aisle/cold-aisle containment — are available separately and recommended for any empty rack unit positions in a high-density deployment.

For security and surveillance infrastructure buildouts, this enclosure is a practical home for network video recorders, managed PoE switches, and access control servers — the depth range and load rating accommodate purpose-built security appliances alongside general IT equipment in consolidated equipment rooms.

What's in the Box

• 1x AR9557SPB2 48U rack enclosure
• Baying hardware
• Key(s)
• Leveling feet
• Mounting hardware
• Pre-installed casters
• Side panels

Frequently Asked Questions

Q: What is the maximum static load capacity of the AR9557SPB2?

A: The AR9557SPB2 is rated for a static load of 4,250 lb (1,927.8 kg) and a dynamic (rolling on casters) load of 3,500 lb (1,587.6 kg).

Q: Is the AR9557SPB2 TAA and BAA compliant?

A: Yes. The AR9557SPB2 is certified TAA Compliant and BAA Compliant via COTS (Commercial Off-The-Shelf) provisions, making it eligible for federal, defense, and government procurement vehicles that require these certifications.

Q: What mounting depths does the AR9557SPB2 support?

A: The adjustable mounting depth ranges from a minimum of 11.5 in (292 mm) to a maximum of 45 in (1,143 mm), accommodating shallow network appliances through deep dual-socket server platforms.

Q: Does the AR9557SPB2 ship with casters and leveling feet?

A: Yes. The enclosure ships with pre-installed casters and includes leveling feet in the box. Casters allow repositioning during installation; leveling feet provide a stable, vibration-damped final installation position.

Q: What gauge steel is used in the AR9557SPB2 mounting rails?

A: The EIA mounting rails are 12-gauge steel. The front door and posts are 16-gauge. Rear door, roof, and side panels are 18-gauge. The heaviest gauge is used on the structural load-bearing members.

Q: What standards and certifications apply to the AR9557SPB2?

A: The AR9557SPB2 meets EIA-310E (universal 19-inch rack compatibility) and UL 2416 (rack enclosure safety standard), and carries TAA and BAA compliance via COTS provisions.

Jerry Tildsen

The AR9557SPB2 is one of the few commercially available 48U enclosures with a verified 4,250 lb static load rating — that's not marketing language, it's a structural spec that matters when you're stacking dense UPS modules, blade chassis, and storage arrays in the same frame. I've spec'd this rack for consolidated equipment room buildouts where the alternative was multiple lighter-duty enclosures, and the single-frame approach with baying hardware consistently wins on floor space and cable management.

Technical Highlights:

• 4,250 lb Static Load: At 1,927.8 kg rated capacity, this frame handles a fully populated high-density build — dual-socket servers, top-of-rack switches, modular UPS, and patch infrastructure — without structural compromise. The 3,500 lb dynamic rating means you can relocate it loaded, which is a real operational advantage during phased buildouts.
• 11.5–45 in Depth Range: The 292–1,143 mm depth adjustment range is wider than most competing enclosures in this class. In practice, this means a single SKU covers shallow 1U appliances and deep 4U storage platforms in the same rack row, eliminating the need to specify different enclosures for mixed equipment types.
• 12-Gauge EIA Rails: The heavier-gauge mounting rails matter under sustained load — thinner rails deflect under populated sliding server trays and can cause binding over time. The 12-gauge spec here is the right material call for a high-density populated rack.

Deployment Considerations:

• At 634.9 lb (288 kg) empty, floor load capacity needs to be confirmed before installation — a fully loaded frame at the 4,250 lb static limit far exceeds what most raised-floor tiles and standard office-grade concrete slabs are rated for without engineering review.
• The TAA/BAA compliance is via COTS provisions — confirm your specific government contract vehicle's documentation requirements with your contracting officer, as COTS-based compliance may require additional paperwork for certain procurement categories.

This enclosure is the right call for a federal agency equipment room, a security operations center consolidating NVR stacks and network infrastructure, or any high-density buildout where structural load ratings and government procurement compliance are hard requirements — not nice-to-haves.
