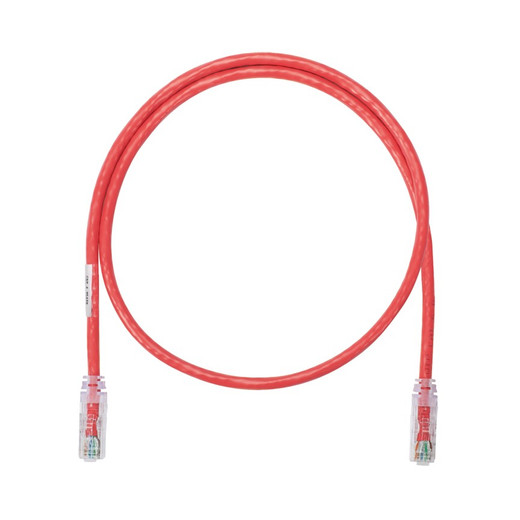

Panduit NK6APC1RD NetKey Cat 6A UTP Patch Cord

High-density rack patching demands cables that won't snag, break, or fail under the mechanical stress of frequent moves and adds. The Panduit NK6APC1RD NetKey Cat 6A patch cord is built for commercial integrators running 10GBASE-T surveillance backbones, PoE++ camera uplinks, and consolidated data center I/O where every U of rack space counts. At 1 foot, this red UTP jumper handles short rack-to-patch runs, top-of-rack switch connections, and equipment consolidation points where cable management is tight and latch failures cost time. The patented tangle-free latch and slender strain relief boot solve the two most common field problems: snagged cables that pull neighboring connections loose, and bulky boots that block adjacent ports in 48-port panels.

Key Features

• Cat 6A performance to 500 MHz — supports 10GBASE-T Ethernet, NBASE-T, and legacy speeds
• Patented tangle-free latch prevents snags and cord entanglement during MACs
• 26 AWG stranded copper conductors for flexible routing in tight bends
• Slender strain relief boot enables port access in high-density 48-port patch panels
• Red jacket for visual circuit identification and VLAN organization
• CM/LSZH flame rating for riser, horizontal, and data center installations
• IEEE 802.3bt Type 3/4 PoE compliant — supports 60W and 90W+ power delivery
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards

The NK6APC1RD uses 26 AWG stranded conductors in a 4-pair unshielded twisted pair configuration, terminated with Panduit's enhanced performance modular plugs. The stranded construction provides flexibility for tight bend radii around vertical cable managers and through horizontal J-hooks without conductor fatigue or performance degradation. Each plug is factory-terminated with controlled insertion depth and load bar alignment, eliminating the field failures common with hand-crimped connectors. The cable is tested to 500 MHz across all four pairs and meets Category 6A specifications for alien crosstalk (PSANEXT, PSAACRF), return loss, and insertion loss at this length. The tangle-free latch uses a low-profile, snag-resistant design rated for 750+ insertion cycles — far exceeding the 50-cycle minimum in TIA-568.2-D and preventing the latch breakage that sidelines cheaper patch cords after a few reconfigurations. The slender boot measures approximately 15 mm in diameter, allowing installers to terminate up to 48 ports per 1U panel with finger access for release and reinsertion.

One-foot Cat 6A jumpers serve three primary roles in IP surveillance and converged network installs: rack-to-patch panel connections between distribution switches and horizontal cabling, short uplinks from PoE injectors to aggregation switches, and equipment consolidation jumpers in virtualized server environments. In camera installations, these cables connect midspan PoE injectors to 10G backbone switches, link NVR 10GBASE-T trunk ports to core routers, and handle camera-side jumpers in IDF closets where long patch cords create cable-management problems. The red jacket simplifies visual troubleshooting in mixed-use racks — integrators commonly use red for camera uplink circuits, separating them from blue general data traffic and yellow cross-connects. The CM/LSZH jacket meets both NEC riser requirements and international low-smoke zero-halogen fire safety standards, making it suitable for occupied data centers, telecom rooms adjacent to air plenums, and facilities with strict smoke-toxicity limits. At 26 AWG, the cable is lighter and easier to dress than 24 AWG Cat 6A patch cords while meeting all insertion-loss requirements for this length, simplifying large-scale rack builds where cumulative cable weight matters.

The NK6APC1RD is third-party verified to ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801 Class EA, and IEC 60603-7 modular plug standards. It supports IEEE 802.3bt Type 3 (60W) and Type 4 (100W) Power over Ethernet, delivering the current capacity required for PTZ cameras with heaters, multi-sensor panoramic cameras, and Wi-Fi 6E access points without voltage drop or thermal issues. The cable is wired to be compatible with both T568A and T568B termination schemes, ensuring interoperability with any standards-compliant infrastructure. Panduit's manufacturing process includes 100% electrical testing at the factory, with batch traceability and consistent performance across production runs — eliminating the variance that causes intermittent link failures with generic Cat 6A cords in high-power PoE applications. For integrators building 10G surveillance networks, consolidating high-density rack infrastructure, or running PoE++ to demanding edge devices, the NK6APC1RD delivers the mechanical durability, electrical performance, and handling characteristics required for professional-grade installations.
