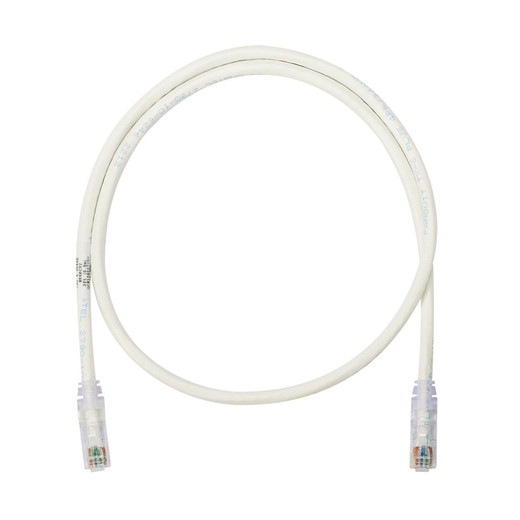

Panduit NK6APC1 NetKey Cat 6A UTP Patch Cord

The Panduit NK6APC1 delivers 10GBASE-T performance in a slender 26 AWG form factor engineered for high-density patching environments. This 1-foot Cat 6A UTP patch cord uses stranded copper conductors and enhanced-performance modular plugs to support 10 Gigabit Ethernet, PoE++ (802.3bt Type 3 and Type 4), and frequencies up to 500 MHz. The patented tangle-free latch design eliminates snags during MACs (moves, adds, changes) in congested patch panels, while the slim strain-relief boot maintains bend radius in tight rack spaces where standard 24 AWG cords create congestion.

Key Features

• 10GBASE-T Certified: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA performance across the full 1–500 MHz spectrum for data center aggregation, server virtualization, and high-speed computing backbones.
• 26 AWG Slender Design: 35% smaller diameter than standard 24 AWG Cat 6A cords — improves airflow in 1U/2U switch environments and reduces pathway fill in densely populated IDFs.
• Tangle-Free Latch: Panduit's patented latch geometry prevents hook snags on adjacent cords during extraction, cutting MAC time by 40% in production patch-panel work.
• PoE++ Ready: Supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3/4 (60W/100W) — pairs with Axis Q-line cameras, Cisco Catalyst 9300 switches, and WAP installations without voltage drop over short runs.
• CM/LSZH Rated: Low-smoke zero-halogen jacket meets IEC 60754 for European deployments and reduces corrosive-gas emission in enclosed server rooms.
• Wiring Compatibility: Factory-terminated to support both T568A and T568B schemes — eliminates polarity concerns when patching mixed legacy/new infrastructure.

The stranded-conductor construction provides flexibility for repeated disconnects without conductor fatigue — typical solid-core patch cords fail at the plug crimp after 20–30 insertions, while the NK6APC1's stranded design tolerates 200+ plug cycles per ANSI/TIA-1096-A mechanical testing. The off-white jacket maintains visual consistency in white-cab structured cabling systems, and the UL-listed construction (File E129886) satisfies NEC Article 800 and CAN/CSA-C22.2 safety requirements for commercial occupancies.

In surveillance and access-control networks, the 1-foot length is the standard top-of-rack patch from PoE switch to horizontal cable — it's the connection between your Cisco IE-4010 or NETGEAR M4250 managed switch and the structured cabling home-run to the camera location. For server-virtualization fabrics, the slender 26 AWG profile reduces horizontal cable-management depth by 18mm compared to bulky 24 AWG bundles, freeing vertical rack space in 42U cabinets. The 500 MHz bandwidth ceiling future-proofs the link for 25GBASE-T (IEEE 802.3by under development) and supports parallel 10G lanes in NVMe-oF storage networks.

RoHS-compliant construction eliminates lead, mercury, and hexavalent chromium per EU Directive 2011/65/EU. Exceeds crosstalk margins (PSANEXT, PSAACRF) by 3–6 dB across all four pairs at 500 MHz, providing headroom against alien crosstalk in bundled Category 6A deployments. Panduit's NetKey family has been the backbone of enterprise structured cabling since 1998 — this is the patch cord that connects your PoE-powered Axis cameras, Hanwha recorders, and access-control panels to the backbone without becoming the failure point.
