APC by Schneider Electric Netbotz Vibration Sensor - 12 Ft. - NBES0306

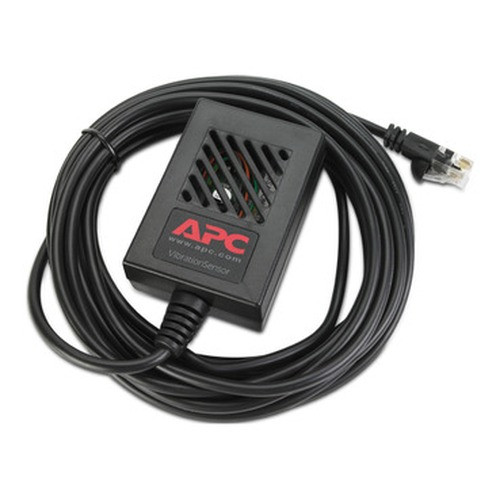

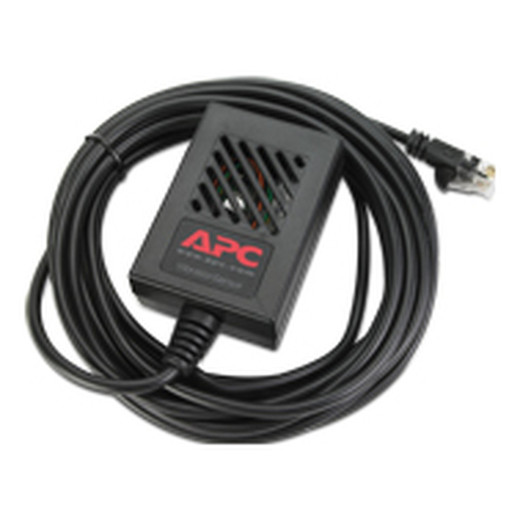

APC by Schneider Electric NBES0306 NetBotz Vibration Sensor — 12 Ft Wired

Overview

The NBES0306 is a wired ultrasonic vibration sensor designed to integrate with APC NetBotz monitoring appliances, extending environmental detection to server rooms, data center floors, and critical infrastructure enclosures where physical shock or vibration events need to be logged and alerted. With a 12-foot cable, you get enough reach to position the sensor at the floor, equipment base, or rack frame without placing the parent appliance in an awkward location.

This is a detection accessory in the infrastructure monitoring category — not a general-purpose accelerometer. Its value is in pairing with a NetBotz appliance that can timestamp events, trigger alerts, and log data historically. If your deployment is purely reactive (alarms only), it does the job. If you need continuous vibration trending or sub-millisecond event capture, evaluate whether the parent appliance's polling interval meets your requirements before specifying the NBES0306.

Key Features

• Ultrasonic Detection Technology: Uses ultrasonic sensing rather than a mechanical contact switch or simple piezo element — this means it can detect vibration signatures without requiring direct physical compression, which reduces false negatives from light or intermittent shock events on rack-mounted equipment.
• 12-Foot Wired Cable: The 12 ft cable gives you meaningful standoff distance from the parent appliance — enough to run the sensor to a raised floor tile, equipment base, or adjacent rack footer while keeping the NetBotz unit in its normal mounting position. No wireless pairing, no battery management.
• Compact Form Factor (117 × 121 × 25 mm): At 25 mm depth, the sensor sits flush against most flat surfaces without creating an obstruction hazard in dense equipment rooms. The 117 × 121 mm footprint is small enough to mount on a single rack PDU panel or interior enclosure wall.
• Wired Connectivity: Direct wired connection to the NetBotz appliance eliminates RF interference concerns and avoids the credential and join-time overhead of wireless sensor networks. In EMI-dense environments like generator rooms or UPS battery banks, wired is the correct choice.
• Operating Temperature 0–45°C: Rated for standard data center and IDF closet thermal ranges. At 45°C upper limit, this covers most air-cooled environments — but if your deployment includes outdoor enclosures or unconditioned utility spaces that exceed this range, verify ambient temperatures before installing.

Integration and Compatibility

The NBES0306 is designed for use with APC by Schneider Electric NetBotz monitoring appliances that provide a compatible sensor port. Verify your specific NetBotz appliance model supports external ultrasonic vibration sensors before ordering — not all appliances in the environmental monitoring category share the same sensor port configuration. Consult the NetBotz appliance compatibility documentation for your model to confirm physical port type and sensor count limits.

For broader data center infrastructure monitoring deployments, the NBES0306 pairs naturally with temperature, humidity, and airflow sensors on the same appliance — building a multi-parameter environmental picture without additional network endpoints. If you are planning a power and UPS room monitoring installation, vibration detection at the UPS base or battery bank is a practical addition to thermal monitoring, since battery failures are often preceded by mechanical changes detectable as vibration anomalies.

Frequently Asked Questions

Q: What NetBotz appliances is the NBES0306 compatible with?

A: The NBES0306 is designed for APC NetBotz monitoring appliances that support external ultrasonic vibration sensors. Compatibility depends on the specific appliance model and available sensor ports. Verify your target appliance's sensor port specification against this sensor's connector type before ordering.

Q: How long is the cable on the NBES0306?

A: The NBES0306 includes a 12-foot (approximately 3.7 m) wired cable, providing standoff distance to position the sensor at a rack base, raised floor, or equipment mounting surface away from the parent NetBotz appliance.

Q: What is the operating temperature range of the NBES0306?

A: The NBES0306 is rated for operation from 0°C to 45°C (32°F to 113°F), covering standard conditioned data center and IDF closet environments. Installations in unconditioned or outdoor spaces should verify ambient temperatures remain within this range.

Q: What type of sensor does the NBES0306 use to detect vibration?

A: The NBES0306 uses an ultrasonic sensing element, which detects vibration signatures without requiring direct mechanical compression against a surface — reducing missed detections from intermittent or low-amplitude shock events.

Q: Does the NBES0306 require a separate power supply?

A: The NBES0306 connects directly to a compatible NetBotz appliance via wired cable. Power and data are handled through the appliance connection — no separate power supply or battery is required for the sensor itself.

Ted Perry

The NBES0306's 12-foot cable is the spec that drives most of my placement decisions on this sensor. In a typical two-post open-frame rack row, the NetBotz appliance sits in a 1U slot mid-rack, and 12 feet gets you down to the floor, across to the adjacent row footer, or up to a ceiling cable tray anchor point — all realistic vibration detection locations you wouldn't reach with a 6-foot cord.

Technical Highlights:

• Ultrasonic Sensing Element: Detects vibration without requiring surface compression, which matters for rack-mount scenarios where the sensor may not be rigidly bolted to the monitored structure — a loosely bracketed sensor on a rack upright can still register shock events.
• 0–45°C Operating Range: Fits any conditioned data center or IDF space without thermal derating concerns. This is a hard ceiling though — a generator room or outdoor battery cabinet that peaks above 45°C disqualifies this sensor.
• Compact 25 mm Depth: Thin enough to mount on the interior wall of a shallow wall-mount enclosure or behind a rack PDU without creating a cable management problem.

Deployment Considerations:

• Confirm your NetBotz appliance model explicitly lists support for the NBES0306 sensor type — sensor port count and connector compatibility vary across the NetBotz product line, and ordering without this check is a common source of returns.
• The 45°C upper operating limit is the boundary to watch in mixed-use spaces. Server room cold aisles are fine; hot aisle containment interiors, generator enclosures, and outdoor utility cabinets in warm climates need a temperature audit before installation.

Best fit for data center managers who need to log physical shock events at UPS units, battery strings, or precision cooling equipment as part of a broader NetBotz environmental monitoring deployment — particularly in co-location facilities where customer SLA documentation requires evidence of physical disturbance events.
