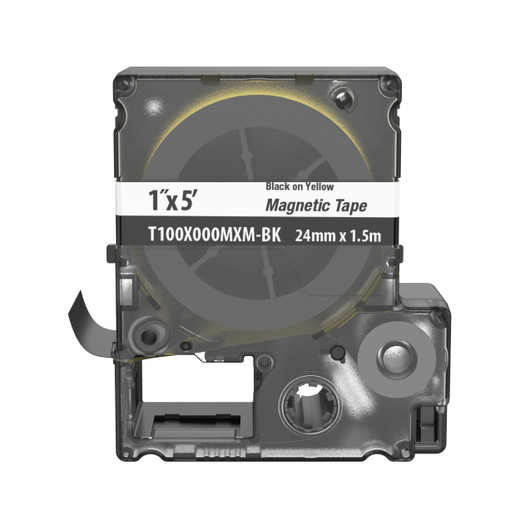

Panduit T100X000MXM-BK PXE Magnetic Continuous Label Tape Cassette

Overview

The Panduit T100X000MXM-BK is a PXE™-series magnetic continuous label tape cassette designed for on-demand, custom printing of pipe markers, bin labels, voltage indicators, panels, and network identification tags. The self-contained cassette bundles both tape media and ribbon into a single drop-in unit — no separate ribbon threading, no alignment errors, no wasted time at the labeling station. At 24mm (0.94 in) wide and 1.5m (4.9 ft) per cassette, it's sized for full-width pipe and asset markers without trimming. Black print on a high-visibility yellow substrate makes it the right call wherever contrast matters: electrical panels, pipe runs, cable trays.

T100X000MXM-BK (often searched as T100X000MXM BK) is compatible with the MP100, MP200, and MP300 portable printers, making it a direct replenishment SKU for any site already running Panduit's handheld labeling workflow.

Key Features

• Magnetic backing: Labels adhere to ferrous surfaces without adhesive — ideal for control panels, electrical enclosures, and equipment racks where you need repositionable identification that won't leave residue or tear off under vibration.
• All-in-one cassette format: Tape and ribbon are pre-loaded in a single cartridge. Field technicians swap cassettes in seconds rather than threading separate ribbon spools — reduces per-label errors on busy install days.
• 24mm (0.94 in) print width: Wide enough for pipe markers and panel legends that require readable multi-line text or larger symbology, while still fitting within the standard MP-series print engine.
• 1.5m (4.9 ft) per cassette: Each cassette yields a continuous run of customizable labels. For shorter markers you control cut length at print time; for full-length pipe wraps, the continuous format eliminates the need for pre-cut label stock.
• Black-on-yellow color scheme: Yellow backgrounds are the ANSI/ASME convention for caution and electrical hazard identification, making this tape a natural fit for electrical and mechanical system labeling without additional color-coding effort.
• RoHS-compliant materials: Meets the EU Restriction of Hazardous Substances directive — relevant for any installation destined for export, government facilities, or sites with environmental compliance requirements.
• Flat-label applications only: This cassette is rated for flat surfaces. It is not intended for wrap-around or curved-surface pipe applications — an important distinction when specifying against pipe-wrap alternatives in the same Panduit line.

Integration & Compatibility

The T100X000MXM-BK cassette is validated for use with the Panduit MP100, MP200, and MP300 portable label printers. It does not cross-fit other Panduit printer families or third-party handheld printers. Verify your printer model before ordering — the PXE cassette lock is specific to the MP platform.

For sites running the Panduit labeling and identification line, this tape integrates directly into an existing labels, markers, and printer consumables workflow. Pairing with a portable label printer creates a self-contained field labeling kit. If your project requires adhesive-backed continuous tape in the same format, reference the broader Panduit tape and label cassette family for non-magnetic variants.

What's in the Box

• 5x T100X000MXM-BK magnetic continuous tape cassettes (24mm x 1.5m, black-on-yellow)

Frequently Asked Questions

Q: What printers is the T100X000MXM-BK compatible with?

A: The T100X000MXM-BK is validated for the Panduit MP100, MP200, and MP300 portable label printers. It is not designed for other Panduit printer families or third-party devices.

Q: Is this tape cassette adhesive-backed or magnetic?

A: Magnetic. The T100X000MXM-BK attaches to ferrous surfaces without adhesive, making it repositionable and residue-free — suited for electrical panels, enclosures, and equipment racks.

Q: Can I use this cassette for curved pipe wrap applications?

A: No. The T100X000MXM-BK is rated for flat-label applications only. For curved or wrap-around surfaces, select a Panduit cassette specifically rated for pipe-wrap use.

Q: How much tape is in each cassette, and how many cassettes come in a package?

A: Each cassette contains 1.5m (4.9 ft) of 24mm-wide continuous tape. The standard package contains 5 cassettes; carton quantity is 120 cassettes.

Q: Is the T100X000MXM-BK RoHS-compliant?

A: Yes. The T100X000MXM-BK meets RoHS (Restriction of Hazardous Substances) requirements, making it appropriate for installations with EU environmental compliance or government facility mandates.

Q: What color is the print and substrate on the T100X000MXM-BK?

A: Black print on yellow substrate. Yellow backgrounds align with ANSI/ASME color conventions for caution and electrical hazard identification.

Eden Phillips

The T100X000MXM-BK is the one I reach for when a project combines electrical panel work with a hard requirement for repositionable labeling — the magnetic backing means you can move a marker three times during commissioning without pulling paint or leaving adhesive ghost marks on a new enclosure door. The 24mm width gives you enough real estate for a two-line legend at a readable font size, and at 1.5m per cassette you're not burning through stock on a single panel run.

Technical Highlights:

• Magnetic backing, flat surfaces: Attaches and repositions cleanly on ferrous enclosures and racks — no adhesive residue, no surface prep required. The flat-only rating is a hard constraint, not a guideline; don't try to use it on pipe runs.
• All-in-one cassette, 5-pack: Ribbon and media ship as a single unit. On a multi-panel commissioning job, having five cassettes on hand (each yielding 1.5m) means your labeling tech isn't hunting for ribbon mid-run.
• Black-on-yellow, RoHS-compliant: Yellow substrate maps directly to ANSI/ASME hazard color conventions for electrical identification. RoHS compliance keeps the tape eligible for export projects and government facility work without a separate materials review.

Deployment Considerations:

• Printer compatibility is limited to the MP100, MP200, and MP300 — verify the site's printer model before committing to a cassette order. A mismatch means the cassette physically won't seat.
• This cassette is flat-label only. If your scope includes pipe identification on non-ferrous or curved surfaces, you'll need a separate adhesive or wrap-style cassette from the same Panduit family — magnetic won't hold, and the flat format won't conform.

Best fit for electrical and mechanical commissioning teams doing panel and rack identification on ferrous enclosures where markers need to survive repeated repositioning through the punch-list phase without leaving a mess behind.
