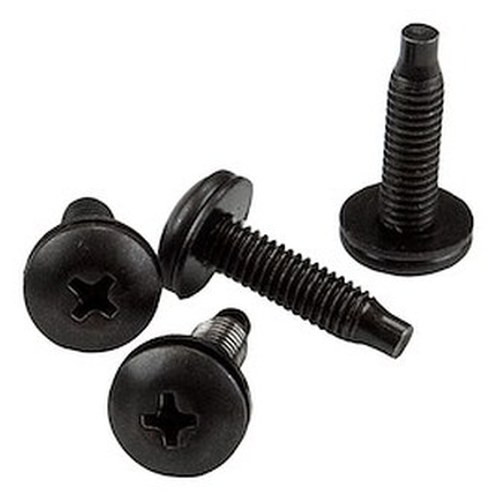

StarTech CABSCRWS1032 10-32 Rack Mount Screws — 50-Pack

Overview

The StarTech CABSCRWS1032 is a 50-pack of 10-32 threaded rack mount screws designed to secure server equipment, telecom gear, and A/V components into standard threaded rack enclosures. At 0.5 inches long with a 0.2-inch diameter, these screws fit the 10-32 tapped hole pattern found on the vast majority of rackmount enclosures used in data centers, telecom closets, and broadcast equipment rooms. If you're outfitting a new rack build or restocking a cabinet that shipped without hardware, this is the straightforward solution — 50 screws per pack, steel construction, black finish, and a lifetime warranty backing them.

Key Features

• 10-32 Thread Standard: The 10-32 thread pattern is the dominant standard in North American server and network racks. Buying the wrong thread (12-24 vs. 10-32) is one of the most common rack-assembly mistakes — verify your enclosure's tapped strip before ordering. If your rack came with threaded holes rather than square-hole cage nut strips, this is the correct size for most U.S.-standard equipment cabinets.
• 0.5-Inch Screw Length: At half an inch, these screws engage the rack rail threads fully without bottoming out against chassis ear flanges. Too-short screws back out under vibration; too-long screws can bind or bottom before clamping. The 0.5-inch length is the industry-standard depth for 10-32 rack rails, meaning they'll seat correctly without shimming or spacers in virtually all standard rail applications.
• 0.2-Inch Diameter: The 6mm (0.2-inch) shank diameter matches the standard 10-32 clearance hole in equipment chassis ears, so screws pass cleanly through the mounting flange and thread into the rail without the slop or binding you get with mismatched hardware.
• Steel Construction: Steel provides the shear and tensile strength needed to support rack-mounted equipment under load — including the vibration stress of fans, drives, and physical cable management. Cheaper zinc or soft-alloy screws can strip or shear when a heavy chassis shifts; steel screws hold.
• Black Finish: The black finish isn't purely cosmetic. In open-frame or glass-door racks where appearance matters — data center tours, broadcast control rooms, structured cabling builds — consistent black hardware gives the build a cleaner look versus mixed zinc and silver fasteners.
• 50-Piece Pack Quantity: A standard 42U rack with fully populated 1U equipment requires 4 screws per unit — that's up to 168 screws for a full cabinet. A 50-pack covers roughly 12 full 1U devices or provides a solid buffer for a partially populated rack. Buying in pack quantities avoids the frustration of running short mid-installation.
• 6.4 oz Package Weight: Lightweight enough that shipping cost is negligible even when ordering multiples. For large deployments requiring several hundred screws, ordering additional packs doesn't add meaningful freight cost.
• Lifetime Warranty: StarTech backs these screws with a lifetime warranty — unusual for commodity hardware and a signal that these are manufactured to consistent tolerances rather than bulk-sourced with no quality control. If a screw strips on installation, the warranty covers it.

Integration and Compatibility

The CABSCRWS1032 is compatible with any rack enclosure using the 10-32 threaded hole standard — this includes the majority of server racks, network cabinets, telecom equipment frames, and A/V rack furniture manufactured for the North American market. It is not compatible with 12-24 threaded racks (common in older IBM and some European-market enclosures) or square-hole racks designed for cage nuts rather than threaded rails. If you are unsure which standard your rack uses, check the rail markings or the rack enclosure documentation — 10-32 holes are typically slightly smaller in diameter than 12-24 holes and the thread pitch is visibly finer.

These screws are also appropriate for use with patch panels, cable management panels, blanking plates, keyboard trays, and any other accessory that mounts to a 10-32 threaded rack strip. For installations mixing square-hole and threaded racks within the same facility, keep both 10-32 screws and cage nut sets on hand to avoid mid-job delays.

Frequently Asked Questions

Q: What thread standard does the CABSCRWS1032 use, and how do I know if my rack supports it?

A: The CABSCRWS1032 uses the 10-32 thread standard, which is the most common threaded rack hole pattern in North American server and network cabinets. Check your rack rail for stamped markings or measure the hole — 10-32 holes are slightly smaller and have a finer thread pitch than 12-24. If your rack uses square holes and cage nuts, these screws are not the right choice.

Q: How many screws come in a pack, and is that enough for a full rack build?

A: Each pack contains 50 screws. A fully populated 42U rack with 1U equipment uses 4 screws per unit, requiring up to 168 screws total. For a full rack build you will likely need 3–4 packs. For partial builds or restocking purposes, a single 50-pack covers roughly 12 standard 1U devices.

Q: What is the warranty on the CABSCRWS1032?

A: StarTech covers the CABSCRWS1032 with a lifetime warranty.

Q: What material are these screws made from, and will they hold heavy equipment?

A: The screws are steel construction, which provides the shear and tensile strength required for rack-mounted server and telecom equipment. Steel is the appropriate choice for load-bearing rack fastener applications — avoid soft-alloy or zinc substitutes for permanent installations.

Q: Are these screws compatible with European rack enclosures?

A: Compatibility depends on the specific rack. The 10-32 thread standard is primarily a North American convention. Many European racks use M6 metric threads or the 12-24 UNC standard. Verify your enclosure's thread specification before ordering.

Q: What is the exact screw length and diameter?

A: Each screw is 0.5 inches (approximately 1.2 cm) long and 0.2 inches (6.0 mm) in diameter. These are standard dimensions for 10-32 rack mount screws and are compatible with typical rack rail thread depths.

James Everett

The CABSCRWS1032 is one of those consumables that gets overlooked until it holds up a deployment — literally. I've seen rack builds stall because an integrator showed up on-site with 12-24 screws for a 10-32 rail, or ran short halfway through populating a cabinet. The 50-pack format and steel construction make this the practical choice to keep stocked, and the lifetime warranty on a fastener pack tells you something about StarTech's confidence in the manufacturing tolerances here.

Technical Highlights:

• 10-32 Thread, 0.5-Inch Length: The 0.5-inch length is the sweet spot for standard rail thread depth — long enough to develop full thread engagement without bottoming out against chassis flanges, which is the failure mode that causes screws to back out under fan vibration over time.
• Steel Construction: Steel's shear strength matters when you're supporting a dense 2U server chassis or a heavy UPS shelf. Softer alloy screws are a genuine risk in high-load applications — steel eliminates that variable.
• 50-Pack at 6.4 oz: The entire pack weighs just 6.4 oz, so ordering multiple packs for a large deployment adds negligible shipping weight. For an integrator stocking a service van or a facilities team maintaining multiple racks, that's practical to keep on hand without bulk storage overhead.

Deployment Considerations:

• Confirm your rack rail type before ordering — the CABSCRWS1032 is for 10-32 threaded rails only, not square-hole cage nut racks. Mixing these up on-site is the single most common mistake on rack installations.
• A 50-pack covers approximately 12 fully secured 1U devices at 4 screws each. Plan your pack quantity before the job — running short at the tail end of a 42U build is avoidable with a quick pre-job count.

For a data center team commissioning a new row of server cabinets or a security integrator racking NVRs and managed switches in an IDF closet, the CABSCRWS1032 belongs in the standard parts kit alongside cage nut sets and cable management hardware — not an afterthought, but a pre-ordered line item.
