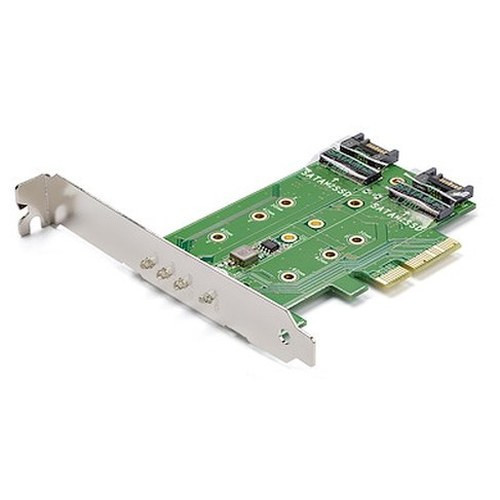

StarTech PEXM2SAT32N1 PCIe x4 Triple-Slot M.2 SSD Adapter Card

Overview

The StarTech PEXM2SAT32N1 is a PCIe 3.0 x4 adapter card that adds three internal M.2 SSD slots to a desktop or workstation — two dedicated to M.2 SATA drives and one for an M.2 PCIe (NVMe) drive. If you're building out a surveillance workstation, video editing rig, or storage-dense desktop and you've already exhausted your motherboard's native M.2 slots, this card solves the problem without reaching for an external enclosure or a RAID controller you don't need.

The card occupies a single standard-profile PCIe x4 slot and draws 12V DC from the bus, so there's no SATA power connector to route. Four individual status LEDs — three for drive activity and one for power — give you at-a-glance confirmation that each drive is recognized and operating, which matters during initial commissioning and troubleshooting.

Key Features

• Three M.2 slots in one PCIe x4 slot: Two M.2 SATA ports and one M.2 PCIe port let you install mixed-interface drives simultaneously. Run an NVMe boot drive alongside two SATA SSDs for bulk storage — without needing multiple PCIe slots or a second adapter card.
• PCIe 3.0 x4 interface with up to 40Gbps aggregate bandwidth: The x4 Gen 3 host connection provides enough headroom that the NVMe slot won't be bandwidth-starved, and the two SATA III ports each operate at 6Gbps natively. For surveillance workstations writing continuous multi-stream video, this keeps I/O from becoming a bottleneck.
• SATA III at 6Gbps per SATA port: Each of the two M.2 SATA slots runs at full SATA III speed, so SATA SSDs operate at their rated throughput — no shared-bandwidth compromise between the two SATA drives on this controller.
• Supports M.2 drive sizes 2230, 2242, 2260, and 2280: All four mainstream M.2 form factors are supported, so you're not locked into a single drive length. Shorter 2230 or 2242 modules — common in spare parts bins and off-lease hardware — install without an adapter.
• Standard-profile card format: Fits full-size ATX and mATX tower cases without a bracket swap. If you're deploying into a slim or small-form-factor chassis, verify your case supports standard-profile cards before ordering.
• Four activity and power LEDs: One LED per M.2 slot shows real-time drive status; a fourth confirms the card is powered. During deployment this lets you confirm all three drives are seen by the system before the OS even boots — no guesswork about a loose seating.
• 50,000-hour MTBF: The controller itself is rated for 50,000 hours of continuous operation — roughly 5.7 years at 24/7 — which aligns with typical workstation refresh cycles in enterprise and surveillance environments.
• Operating temperature 5°C to 50°C: Designed for controlled indoor environments — rack rooms, server closets, and climate-managed offices. If your deployment environment runs hot (above 50°C ambient), ensure adequate case airflow or consider active cooling before installing.

Integration & Compatibility

The PEXM2SAT32N1 connects to the host system via a standard PCIe x4 slot connector and is physically compatible with x4, x8, and x16 slots (electrically x4). The NVMe slot passes PCIe 3.0 lanes directly to the M.2 drive, so NVMe drive performance is determined by the drive itself and the host CPU's PCIe lane allocation — not by an intermediate controller. The two SATA slots use a SATA controller bridged over PCIe, operating at SATA III (6Gbps) per port.

Drive compatibility spans all four standard M.2 widths (2230, 2242, 2260, 2280) on both the SATA and PCIe slots. Single-sided and double-sided M.2 modules are both accommodated, though clearance between the three slots on a compact 4.7 × 4.7 × 0.8-inch card means you should verify physical clearance if using thick double-sided drives in adjacent slots. Power is sourced entirely from the PCIe slot (12V DC); no auxiliary power connector is required.

For storage-expansion use in network video recorders and surveillance workstations, pair this card with a compatible StarTech product lineup or review our IP camera storage planning resources to size drives correctly for your retention requirements. If you're expanding storage in a PoE-based system, see our PoE switches section for network infrastructure that feeds those cameras. For broader storage and server expansion guidance, consult our storage solutions category.

Frequently Asked Questions

Q: Can I install both M.2 SATA and M.2 NVMe drives at the same time on the PEXM2SAT32N1?

A: Yes. The card provides two M.2 SATA slots and one M.2 PCIe (NVMe) slot, and all three can be populated simultaneously. The SATA and NVMe slots are independent — they do not share bandwidth with each other at the drive level.

Q: What M.2 drive sizes does the PEXM2SAT32N1 support?

A: The card supports M.2 2230, 2242, 2260, and 2280 form factors across both the SATA and PCIe slots. All four lengths are supported on each slot.

Q: Does the PEXM2SAT32N1 require a separate power connector?

A: No. The card draws 12V DC entirely through the PCIe x4 slot. No SATA or Molex power cable is needed.

Q: Will the PEXM2SAT32N1 fit in a small-form-factor (SFF) or slim desktop chassis?

A: The card is standard-profile only (4.7 in × 4.7 in). It is not compatible with low-profile or slim chassis that require a half-height bracket. Verify your case accepts full-height cards before ordering.

Q: What is the warranty on the PEXM2SAT32N1?

A: StarTech covers the PEXM2SAT32N1 with a 2-year manufacturer warranty.

Q: What PCIe slot does the PEXM2SAT32N1 require, and can it run in a larger slot?

A: The card uses a PCIe x4 connector and is electrically PCIe 3.0 x4. It will physically seat in x4, x8, or x16 slots on a compatible motherboard, but it only uses four lanes regardless of slot size.

Marty Allison

The detail I keep coming back to on the PEXM2SAT32N1 is the aggregate 40Gbps PCIe 3.0 x4 host interface — it means the NVMe slot genuinely gets the bandwidth it needs while the two SATA III ports each run independently at 6Gbps, not pooled. That's a meaningful design decision for surveillance workstations where you're writing dense video streams to SATA SSDs while the OS and VMS software live on an NVMe drive. Most budget adapters compromise somewhere; this one doesn't.

Technical Highlights:

• 40Gbps PCIe 3.0 x4 bandwidth: Enough headroom to run all three M.2 slots under simultaneous load without the host interface saturating — critical when your NVMe OS drive and two SATA recording drives are all active at once.
• SATA III at 6Gbps per port: Each SATA slot operates independently at full SATA III speed, so two SATA SSDs recording in parallel won't throttle each other the way they would on a shared-bandwidth controller.
• 50,000-hour MTBF: At 24/7 operation that's approximately 5.7 years of rated controller life — consistent with enterprise workstation refresh cycles and long-term surveillance deployments.

Deployment Considerations:

• The card is standard-profile only — 4.7 × 4.7 inches. Confirm your chassis supports full-height cards before deployment; there is no low-profile bracket option listed for this SKU.
• Operating temperature tops out at 50°C. In densely packed workstation chassis with multiple drives populating all three slots, verify case airflow is adequate — M.2 NVMe drives generate meaningful heat and the card itself sits in close proximity to all three modules.

The PEXM2SAT32N1 is a practical fit for surveillance workstation builds where the motherboard's native M.2 slots are already occupied by a boot NVMe and one recording drive — this card adds the remaining capacity without requiring a second PCIe slot or an external enclosure, keeping the system clean and rack-friendly in a security operations center environment.
