Vertiv I10115L Metered Upgradeable 1U Horizontal Rack PDU
Overview
The Vertiv I10115L is a 30A, 208V, 4.9kW horizontal rack power distribution unit engineered for high-density IT environments where real-time power visibility and reliable distribution are non-negotiable. Part of Vertiv's PowerIT rPDU line, the I10115L ships with model number MN01D1R1-08P448-3TL6A0H10-S and occupies a single 1U slot in a standard 19-inch rack — keeping valuable rack space available for revenue-generating gear. The defining advantage here is the Upgradeable architecture: this unit arrives as a metered PDU and can be field-upgraded to a monitored rPDU by hot-swapping in a compatible Interchangeable Monitoring Device (IMD), which means you're not locked into a decision at purchase time. If monitoring requirements expand after initial deployment, the hardware investment carries forward. For teams specifying rack power distribution units across multi-rack deployments, that flexibility has real budgetary value.
Key Features
- 30A / 208V / 4.9kW Load Capacity: Sized for high-draw server and storage configurations. At 4.9kW on a single feed, this unit can support a dense blade chassis or a mix of 1U servers without hitting breaker limits prematurely — provided your upstream circuit and L6-30P source are correctly provisioned.

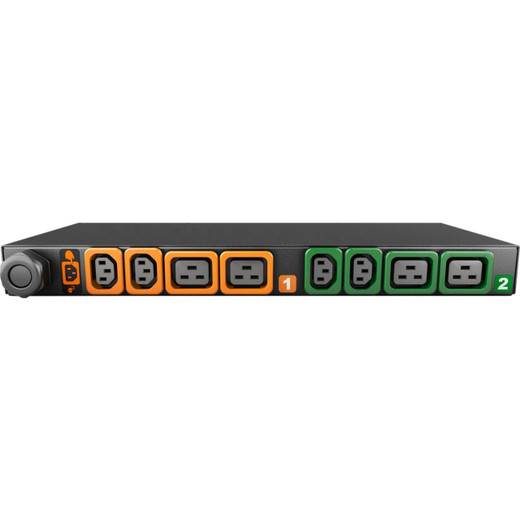

- 8 Locking IEC Receptacles (4x C13 + 4x C19): The U-Lock IEC C13 and C19 outlets prevent accidental cord disconnects — a meaningful safety feature in hands-on colocation and shared-cabinet environments. C19 outlets handle higher-current devices (PDUs, some blade server PSUs) while C13 covers standard 1U/2U servers and networking gear. Color-coded orange and green circuit IDs map each outlet group to a specific breaker at a glance.
- Input and Breaker-Level Current Monitoring: Phase-level monitoring delivers kWh, Watts, VA, power factor, voltage, and amps — compliant with ANSI C12.1 and IEC 62053-21 at 1% accuracy. Breaker-level circuit monitoring is independently verified at 2% accuracy. If a circuit is running hot, you see it on the local display before a breaker trips and takes down a rack segment.
- Local High-Visibility LED Display (Scrolling/Rotatable): Real-time power consumption is readable without a laptop, SSH session, or network connection. For colocation techs doing physical rounds, this eliminates a step — check load status inline without pulling up a management console.
- Dual 20A Double-Pole Magnetic Breakers: Two independent 20A magnetic circuit breakers provide over-current protection per circuit group. Magnetic breakers respond faster than thermal types and don't drift with temperature — in a warm rack, that consistency matters. Each breaker pair covers 2 C13 and 2 C19 outlets, allowing isolated protection per server group.
- NEMA L6-30P Twistlock Input with 10ft / 3m Cord: The rear power entry with a 10-gauge, 3-meter cord accommodates typical overhead or underfloor PDU feeds in standard data center rows. The twistlock plug locks to the floor PDU or transfer switch — no accidental disconnects on that critical upstream connection either.
- Hot-Swap IMD Upgrade Path: Existing units can be field-upgraded to full monitored rPDU capability without replacing the hardware. This is the core value proposition of the Upgradeable sub-category: deploy now at metered pricing, scale to monitored capability when the budget or operational requirement arrives.
- TAA Compliant + Buy American Act COTS Compliant, Made in USA: Manufactured in the United States and compliant with the Trade Agreements Act and Buy American Act COTS requirements — required for federal, DoD, and GSA-schedule procurements that mandate domestic sourcing.
- UL/c-UL Listed (62368-1), RoHS, FCC Part 15 Class A: Safety and emissions compliance is documented. UL 62368-1 is the current audio/video and IT equipment safety standard, replacing the older UL 60950-1 — relevant for data center operators whose facility insurance and compliance programs require current-standard UL listings.
- 5-Year Limited Warranty: A 5-year warranty on a rack PDU is longer than most competing units in this category. For capital equipment with a 5–10 year rack lifecycle, this reduces lifecycle replacement risk and total cost of ownership.
- 60°C / 140°F Maximum Operating Temperature: Rated for high-ambient rack environments. Most enterprise data centers target 25–35°C inlet, but edge deployments and telecom closets can run significantly warmer — this rating provides thermal headroom for non-controlled environments.
Integration and Compatibility
The I10115L accepts any IEC C14 and IEC C20 power cords from servers, storage, and networking equipment — virtually any enterprise IT hardware ships with compatible power connectors. The L6-30P upstream plug is the standard three-phase-derived 240V locking connector used by most raised-floor and overhead busway systems in North American data centers and colocation facilities. The Upgradeable architecture is specific to Vertiv's IMD ecosystem — only Vertiv-compatible IMD modules will enable the monitored upgrade path; confirm IMD compatibility with the specific unit before purchasing separately. The 1U horizontal form factor installs in standard 19-inch racks and open-frame cabinets with the included adjustable mount brackets. For full power infrastructure planning across multi-rack deployments, pair this unit with a properly sized upstream transfer switch or static bypass if uptime requirements demand it.
Frequently Asked Questions
Q: What is the difference between the metered and monitored versions of this rPDU?
A: The I10115L is metered — it provides local LED display readings of input-level power metrics (kWh, W, VA, PF, V, A) and breaker-level current monitoring, but does not include network connectivity for remote management. The Upgradeable design means you can add an Interchangeable Monitoring Device (IMD) later to enable remote monitoring without replacing the base unit.
Q: Is the I10115L TAA compliant?
A: Yes. The I10115L is manufactured in the USA and is Trade Agreements Act (TAA) compliant and Buy American Act COTS compliant, making it eligible for federal procurement and GSA schedule orders.
Q: What over-current protection does the I10115L include?
A: It includes two 20A double-pole magnetic circuit breakers. Each breaker covers two C13 and two C19 outlets (four total per breaker), providing independent circuit protection for each outlet group.
Q: What is the warranty on the I10115L?
A: Vertiv provides a 5-year limited warranty on the I10115L.
Q: Can the I10115L be used in a high-temperature rack environment?
A: Yes. The maximum rated operating temperature is 60°C (140°F), which provides significant headroom above standard data center ambient temperatures and accommodates edge or telecom closet environments where cooling is less controlled.
Q: What certifications does the I10115L carry?
A: The I10115L is UL and c-UL Listed under 62368-1, RoHS compliant, and FCC Part 15 Class A conformant.
The I10115L hits a specific sweet spot in rack power architecture: 30A/208V horizontal with locking IEC outlets on both C13 and C19 positions, dual independently protected 20A circuits, and a local display that gives you real load data without needing to touch a management console. The Upgradeable sub-category designation is what I'd flag first in a pre-sales conversation — if there's any chance monitoring requirements will expand within the 5-year warranty window, this unit lets you add that capability without a forklift upgrade.
Technical Highlights:
- Dual 20A Magnetic Breakers: Independent circuit protection per group — if one circuit segment overloads, it isolates without taking down the full 30A feed. Magnetic response is temperature-stable, which matters in warm edge deployments running near the 60°C limit.
- 1% Accuracy Phase Monitoring / 2% Breaker Monitoring: Both levels are independently tested and certified against ANSI C12.1 and IEC 62053-21. That's not marketing copy — it means the numbers on the display are actually reliable for capacity planning, not just approximate load indicators.
- U-Lock IEC C13 + C19 Locking Receptacles: Color-coded by circuit (orange/green) and physically locking. In shared-cabinet colo environments where multiple customers or techs are working in adjacent racks, accidental cord pulls are a real incident vector. Both the circuit color coding and the mechanical lock address that directly.
Deployment Considerations:
- The L6-30P twistlock requires a matching 30A/208V upstream source — verify your floor PDU, busway tap, or transfer switch output before ordering. Mismatched plug forms are the most common installation delay on horizontal rPDU deployments.
- The IMD upgrade slot is Vertiv-ecosystem specific. If your monitoring infrastructure uses a different vendor's DCIM platform via SNMP or Modbus, confirm the IMD module's protocol support before committing to the upgrade path — not all DCIM platforms support every IMD output format natively.
This unit is the right call for federal data center buildouts and DoD facility deployments where TAA compliance and Buy American Act COTS requirements are contractually mandated, and where the operator wants to preserve the option to add remote monitoring at the next budget cycle without replacing installed hardware.
