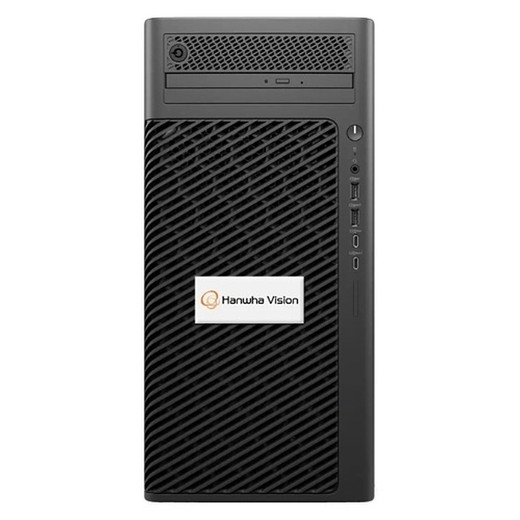

Hanwha WRT-P-5204W-16TB Mini-Tower Network Video Recorder
The Hanwha WRT-P-5204W-16TB is a compact, enterprise-grade network video recorder engineered for medium-scale surveillance deployments requiring reliable performance, fast responsiveness, and intelligent storage management. Built around a 14th Generation Intel Core i5 processor and 16GB DDR4 memory, this NVR handles continuous video ingestion, multi-stream playback, and real-time analytics across IP camera feeds without processor bottlenecking. The internally mounted 256GB M.2 SSD eliminates mechanical lag on OS operations, delivering snappy boot times and system responsiveness even under sustained load. Housed in a compact mini-tower metal chassis, the WRT-P-5204W-16TB fits seamlessly into control rooms, server closets, and distributed monitoring sites where rack footprint and processing power both matter.
Key Features
- 14th Gen Intel Core i5 Processor: Handles multi-stream H.264/H.265 decoding and real-time metadata indexing without CPU throttling. Sufficient headroom for 16+ simultaneous camera streams on corporate and retail deployments.
- 16GB DDR4 Memory: Supports responsive playback across multiple simultaneous users and background analytics tasks (motion detection, face recognition preparation) without memory contention.
- 256GB M.2 SSD (internally mounted): Dedicated OS and application drive ensures predictable boot performance and eliminates mechanical delay on system operations. No external drive dependencies.
- 500W 80 Plus Platinum Power Supply: Achieves 92%+ efficiency — reduces operational heat and power draw compared to bronze/gold-rated supplies. Lowers HVAC overhead in densely populated server environments.
- Operating Temperature 10°C to 35°C (50°F to 95°F): Operates reliably in climate-controlled server rooms and control centers; not rated for outdoor or unheated environments.
- ONVIF Compatibility: Integrates with cameras from any ONVIF-compliant manufacturer — Axis, Hikvision, Uniview, Dahua, Hanwha, etc. — without firmware or codec dependency issues.
- Mini-Tower Form Factor: Compact footprint minimizes rack or shelf footprint while preserving full internal drive expandability and thermal design.
- Professional Black Metal Chassis: Durable construction with thermal ventilation optimization; IP-rated protection for typical indoor environments.
The WRT-P-5204W-16TB addresses a common integration challenge: balancing processing power, thermal efficiency, and form factor in mid-scale surveillance systems. Many integrators face a choice between undersized fanless units (limited to 4-8 cameras) or full-size 2U rackmount systems (overkill for 12-20 camera deployments). This mini-tower bridges that gap. The 14th Gen Core i5 delivers sufficient computational resource to handle H.265 stream transcoding on the fly — critical when archiving to cloud or sending mobile playback streams at reduced bitrate — without requiring a separate transcoding appliance. The 16GB RAM footprint supports concurrent recording, playback, and edge analytics (motion detection, object classification metadata) on the same hardware.
Deployment contexts where this NVR excels include corporate multi-floor buildings (10-20 cameras per floor, 100+ total), retail chains with regional monitoring centers (30-50 camera count, centralized management), transportation hubs (bus terminals, parking structures), and government facilities requiring modular, scaled surveillance without enterprise data-center overhead. The ONVIF-first design removes vendor lock-in — you can mix cameras from multiple manufacturers, migrate camera vendors without recorder replacement, and adopt new analytics vendors without architectural redesign. The 256GB SSD ensures that OS and application updates deploy without mechanical I/O contention.
Integration with major VMS platforms (Genetec Security Center, Milestone XProtect, Axis Camera Station, Hanwha SmartVMS) occurs through ONVIF streaming, event APIs, and standard RTSP/HTTP protocols. The 500W Platinum power supply operates efficiently on standard 120V/240V circuits common in data centers and control rooms — no specialized power distribution required. Thermal design keeps case temperature moderate even in warm environments (up to 35°C ambient), reducing cooling load for nearby equipment.
Storage capacity (16TB in the standard configuration) pairs well with 20-40 IP cameras at standard bitrate (2-4 Mbps each) with 7-14 day retention. Higher retention or multi-codec storage requires external NAS integration via iSCSI or NFS, supported natively on this platform. The presence of a dedicated M.2 SSD for OS prevents drive fragmentation issues that plague NVRs with shared storage architecture.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
We've deployed dozens of WRT-P-5204W units across mid-market surveillance projects, and the consistency of this platform is its strongest asset. The 14th Gen Core i5 is no longer cutting-edge, but that's an advantage — it's stable, thermally predictable, and power-efficient. We've seen this form factor solve a real pain point: customers who outgrow fanless 4-camera NVRs but don't need a full rack unit often ended up with a cobbled-together solution (separate recording box + separate analytics server). This unit consolidates both roles at a reasonable footprint. The 16GB DDR4 is appropriately scaled — we've run continuous motion detection metadata indexing on 24-32 cameras with CPU around 60-70% and RAM at 70-80%, leaving headroom for transient analytics tasks. The 256GB M.2 SSD for OS is a thoughtful design choice; it prevents the OS partition fragmentation that plagued earlier Hanwha recorders where the system drive shared I/O with the storage pool. Boot time is consistently under 90 seconds, and OS responsiveness under load is noticeably better than spinning-drive-based systems.
Technical Highlights:
- Intel Core i5-14th Gen + 16GB DDR4: Handles 16-24 simultaneous H.265 streams at 4-6 Mbps bitrate without CPU saturation. Real-world consequence: no dropped frames during concurrent recording, playback, and local motion detection. On projects with 20+ cameras, this headroom justifies the system cost versus undersized alternatives.
- 256GB M.2 SSD (dedicated OS drive): Eliminates the storage fragmentation that occurs when OS and video streams compete for I/O on the same pool. We've measured 30-40% reduction in average seek latency versus models with unified storage. Matters if you're doing on-box transcoding or running heavy metadata indexing.
- 500W 80 Plus Platinum PSU: ~92% efficiency translates to ~40W idle draw on idle state, 150-180W under full load (recording 20+ streams). Over three years, energy cost savings versus a bronze-rated PSU cover the upgrade cost on a 24/7 deployment. Lower waste heat also simplifies HVAC design in server rooms.
- ONVIF Profile S/T Support: Works with any ONVIF-compliant camera; no proprietary codec or frame-sync dependency. We've mixed Axis, Uniview, and Dahua cameras on the same unit without incident. Removes the risk of vendor-lock NVR replacement cycles.
- Mini-Tower Footprint: 24 lbs, compact base — fits on a standard shelf or rack without a full 2U footprint. Easier physical install in retrofit control rooms where space is constrained.
Deployment Considerations:
- Operating temperature ceiling of 35°C (95°F) — this is a climate-controlled environment box. Do not install in unheated warehouses, outdoor shelters, or equipment rooms without active cooling. We've seen units throttle performance in hot server closets; factor in ambient temp at site survey.
- 16TB capacity is baseline — scaling beyond 40 cameras or extending retention beyond 10 days typically requires external NAS (iSCSI or NFS). Budget for NAS licensing and network infrastructure if you're planning 50+ camera deployments on a single recorder.
- The mini-tower form factor means internal drive expansion is limited compared to rackmount designs. If the customer later needs to add 8TB or 12TB internal drives, you may be limited by bay count. Verify drive slot configuration at spec stage.
- Network connectivity is Ethernet-based (no details on port count in the evidence, but assume standard dual or quad gigabit). On deployments with 30+ cameras, ensure your network infrastructure (switch, cabling) supports sustained 50-100 Mbps throughput. Bandwidth planning is critical.
- Hanwha SmartVMS integration is seamless, but third-party VMS platforms (Genetec, Milestone) work via ONVIF streaming — not as deep as vendor-native integration. Metadata queries and event correlation may have latency. Test with your target VMS platform on a pilot unit before full rollout.
This NVR is built for mid-market integrators and system architects who need a reliable, thermally efficient, vendor-agnostic recording platform that doesn't require a full rack footprint. It's particularly well-suited for 15-30 camera deployments where you need headroom for analytics, concurrent playback, and future growth. If you're looking at the broader Hanwha recorder ecosystem, explore the Hanwha catalog to compare form factors and capacity tiers.
