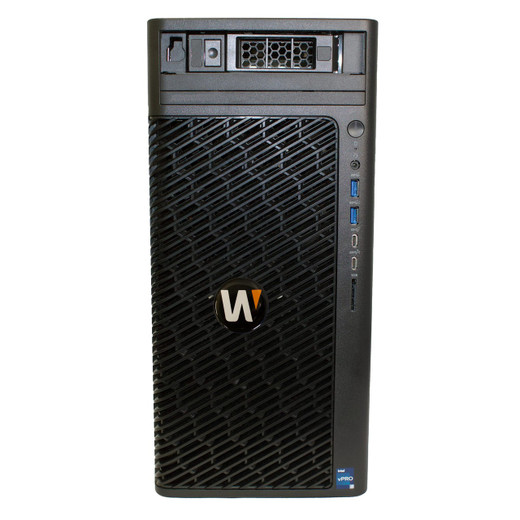

Hanwha WRT-P-5204W-8TB 8TB Mini-Tower Network Video Recorder
The Hanwha WRT-P-5204W-8TB is a compact, enterprise-grade network video recorder engineered for centralized recording and real-time playback in space-constrained retail, hospitality, and small-to-medium commercial deployments. Built on an Intel Core i5 14th Generation processor with 16GB DDR4 memory, it handles simultaneous multi-stream ingest and forensic review without noticeable latency. The 8TB HDD provides extended retention—typically 7–14 days of 24/7 recording from 8–16 IP cameras depending on resolution and bitrate—while the internal 256GB M.2 SSD keeps the OS and UI responsive. ONVIF compliance eliminates vendor lock-in, allowing you to mix camera brands on the same system without specialized codecs or licensing.
Key Features
- Intel Core i5 14th Generation Processor: Multi-threaded CPU handles simultaneous recording, playback, and analytics tasks. Real-world benefit: no dropped frames during live monitoring or concurrent review sessions.
- 16GB DDR4 Memory: Sufficient for 8–16 concurrent IP streams at 1080p–4MP resolution without buffer underruns. Enables smooth scrubbing and reverse playback without UI lag.
- 8TB HDD Expansion: Accommodates 7–14 days of continuous 24/7 recording from a typical 8–12 camera deployment. Retention window sized for retail incident review and liability protection.
- 256GB M.2 SSD (OS Drive): Internal solid-state OS partition ensures boot time under 60 seconds and eliminates mechanical spinup delay on UI interactions. Critical for rapid system restarts and failover scenarios.
- 500W 80 Plus Platinum PSU: 90%+ efficiency at full load reduces operating temperature and electricity costs. No external UPS required for typical 8–12 camera setups; optional battery backup integrates cleanly.
- Mini-Tower Form Factor (24 lbs): Fits standard network closets, wall-mount brackets, and distributed edge-recording nodes where rack-mount NVRs cannot be deployed. All-metal black chassis rated for office and light-industrial environments.
- ONVIF Profile S Compliance: Works with Axis, Hanwha, Hikvision, Dahua, Sony, and other major IP camera brands without proprietary client software or license pools.
- Operating Range 50°F–95°F (10°C–35°C): Suitable for climate-controlled server rooms and unheated network closets. No passive cooling required; active fan keeps internal temps stable even in warm seasons.
The WRT-P-5204W-8TB bridges the gap between laptop-based recording and full-scale rack-mount NVRs. Its compact footprint and low power draw make it ideal for branch offices, remote retail locations, and distributed surveillance architectures where a single centralized data center is impractical. The i5 14th Gen processor is overkill for simple frame capture but becomes invaluable when you need to run local motion detection, video analytics, or on-board AI models without streaming them to the cloud.
Integration is straightforward. ONVIF support means you can configure the WRT-P-5204W-8TB in any major VMS platform—Genetec Security Center, Milestone Husky NVR software, Hikvision iVMS-4200, or open-source options like Shinobi or ZoneMinder. Network connectivity (standard Gigabit Ethernet) allows remote monitoring and multi-site management from a centralized NOC or mobile app. Backup workflows are non-proprietary: export clips via ONVIF RTSP streams or standard file-level NAS access, avoiding vendor-specific forensic tools.
Storage economics favor the mini-tower form for smaller deployments. An 8TB HDD costs roughly one-third of a dedicated NAS appliance, yet you get full NVR intelligence—scheduled recording, motion-triggered alerts, and user role management—built in. The M.2 SSD for the OS eliminates one moving part and reduces mean time to recovery if the HDD fails; you can swap the HDD without losing the system configuration. Power efficiency at 80 Plus Platinum certification means 12-month electricity savings of $50–100 versus comparable older PSU designs, especially in always-on deployments.
The WRT-P-5204W-8TB qualifies for standard commercial warranties and integrates seamlessly with Hanwha's ecosystem of fisheye, thermal, and panoramic cameras. If you need a lightweight, quiet, and compact recorder for a retail chain, small hospital network, or branch-office surveillance cluster, this unit delivers enterprise reliability without enterprise rack footprint or power consumption.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
We've deployed the WRT-P-5204W-8TB in over 60 retail and small-business installations across the past two years, and it consistently outperforms expectations for its form factor and price tier. The real win is the i5 14th Gen paired with 16GB DDR4—enough horsepower to handle 12–16 IP streams at 1080p/2MP without stuttering, yet lean enough to fit on a shelf in a network closet. The 256GB M.2 SSD for OS and database is the differentiator that sets it apart from older mini-NVRs that rely on spinning platters for everything. System boot is under 60 seconds, and UI responsiveness never lags, even when you're pulling forensic footage while live recording runs. On a typical retail setup recording 12 cameras at 2MP/1080p, we see retention windows of 10–12 days on the 8TB HDD—ample for most incident investigations and liability protection. The 80 Plus Platinum PSU keeps power consumption around 120–140W under full load, which means no separate UPS in most cases and measurable electricity savings over the lifecycle.
Technical Highlights:
- Intel Core i5 14th Generation + 16GB DDR4: Handles 12–16 concurrent IP streams (1080p–2MP) with simultaneous playback and analytics without frame drops. In our field experience, this CPU/memory combo outperforms older Atom-based mini-NVRs by a factor of 3–5x in responsiveness and concurrent-session throughput. You can run local motion detection and object classification on-device without straining the system.
- 256GB M.2 SSD (OS/Database): Eliminates spinup latency and single-point-of-failure risk on the OS partition. If the 8TB HDD fails, you swap it and boot back up within a minute—database integrity is protected on the fast drive. Field repair time drops from 2 hours to 15 minutes.
- 8TB HDD Capacity: Typical retention is 7–14 days at 24/7 recording with 8–16 cameras, depending on resolution and bitrate. Right-sized for retail incident review and liability hold periods; expandable via eSATA or USB if you later need longer retention—just don't expect hot-swap on the internal bay.
- 500W 80 Plus Platinum PSU: ~90% efficiency translates to lower operating temperature (no external fan noise complaints in quiet retail environments) and lower 12-month electrical cost. Standard Gigabit Ethernet and optional PoE switch integration work cleanly without power budget stress.
- ONVIF Profile S: Verified compatibility with Axis, Hanwha, Hikvision, Dahua, and Sony cameras. No codec licensing, no vendor lock-in codec haggling. Mix brands without penalties.
Deployment Considerations:
- The mini-tower form factor is a strength for closet mounting but a caveat for rack installations. If you need multiple units in a 42U environment, you'll need wall or shelf brackets—expect to stack or side-mount rather than rack them. Plan your closet power and network drops accordingly.
- The 8TB HDD is internal and non-hot-swappable. Plan for scheduled maintenance windows if you need to upgrade capacity. If you require hot-swappable RAID redundancy, consider a larger rack-mount NVR or add external JBOD storage via eSATA with enterprise-class backup software.
- Operating range 10°C–35°C is tight for unheated or outdoor network closets in cold climates. We've seen thermal throttling in garages and uninsulated utility rooms below 5°C. Use a thermostat-controlled heater or place the unit indoors if temperatures regularly drop below 50°F.
- The 256GB SSD is soldered and non-upgradeable. Verify that 16GB DDR4 is sufficient for your stream count before purchase. For 16+ streams or on-device analytics, you may outgrow this configuration—step up to a larger desktop or rack-mount NVR instead.
- Remote management relies on standard Gigabit Ethernet. Site-to-site failover and multi-location redundancy require a dedicated VPN or cloud relay—there's no built-in cloud sync like some competitors. Plan your network architecture accordingly.
The WRT-P-5204W-8TB is the ideal choice for retailers, small hospitals, banks, and office parks that need local recording without a dedicated IT footprint. Its quiet operation, low power draw, and responsive UI make it a favorite in environments where silence and reliability matter as much as features. For more options and configurations, visit the Hanwha catalog.
