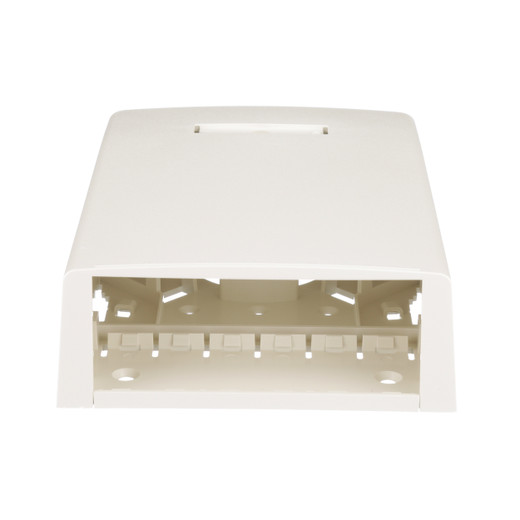

Panduit CBXF12IW-AY Mini-Com 12-Port Surface Mount Box with Fiber Spool
Overview
The Panduit CBXF12IW-AY is a 12-port Mini-Com surface mount box designed for structured cabling installations where rack space is unavailable or a wall-outlet-style termination point is the right fit — think workstation drops in open office areas, AV closets, or security equipment rooms where you need a clean, labeled termination point without a full patch panel. The box is part of Panduit's Pan-Net® copper systems line and accepts any standard Mini-Com module, giving you the flexibility to mix copper, fiber, or multimedia inserts in a single housing. The integrated fiber spool in the base is the feature that separates this from a plain surface mount box — it holds slack fiber cable in a controlled bend radius so you're not improvising a cable loop behind the box or risking a crushed fiber tail.
At 4.73 inches wide and 1.81 inches tall, the CBXF12IW-AY (often searched as CBXF12IW AY) keeps a low profile on the wall while accommodating a full dozen modules — enough for a multi-user workstation cluster, a conference room AV wall plate, or a security camera patch point with room to grow. The off-white ABS housing blends into standard commercial interior finishes without requiring a paint match.
Key Features
- 12-Module Mini-Com Capacity: Accepts any combination of Mini-Com modules across all 12 ports — copper RJ45, fiber SC/LC, coax, or multimedia inserts. This matters because you can configure the box once and re-terminate individual ports later without replacing the housing, protecting your labor investment when infrastructure changes.
- Built-In Fiber Spool: The molded fiber spool in the base manages cable slack without zip ties or improvised loops. Fiber bend radius violations are a common source of signal loss that doesn't show up until months after install — having a dedicated spool removes that failure mode from the equation.
- Dual Mounting Options: Installs with adhesive tape or screws, so you can position it on drywall, concrete block, or finished surfaces without drilling if the load permits. For permanent commercial installs, screw mounting is the right call; adhesive works for temporary setups or low-load patch points.
- Integrated Bridge: The internal cable bridge routes and organizes cable entries before they reach the modules, reducing strain on connector terminations and keeping the interior serviceable when you need to swap a module.
- Label Pocket: A dedicated label pocket on the housing lets you ID the circuit, room, or system without tape labels that peel off. In a security or AV installation with dozens of surface mount points, labeled boxes cut troubleshooting time significantly.
- ABS Construction, RoHS Compliant: The ABS housing is impact-resistant enough for commercial interior environments and meets RoHS compliance standards — relevant for projects with environmental material restrictions or government/institutional specifications.
- Off-White Finish: The off-white color coordinates with standard commercial wall plates and outlet covers, so the installation doesn't look mismatched against existing infrastructure.
- Sold Individually, Carton of 10 Available: Package quantity is 1 unit, with a carton quantity of 10 — order singles for small jobs or a carton when you're wiring a full floor and want consistent pricing per unit.
Integration & Compatibility
The CBXF12IW-AY is designed specifically for the Mini-Com module ecosystem. Any Panduit Mini-Com insert — copper, fiber, coax, HDMI, USB, or specialty multimedia — drops directly into the 12 available ports. This makes it a natural companion to Panduit structured cabling products including Mini-Com patch panels, keystone jacks, and fiber pigtails. If your project uses a mix of copper and fiber drops at the same location (common in security camera installations pairing IP camera feeds with fiber backbone runs), this box handles both in one wall-mount footprint.
For projects requiring a smaller footprint, Panduit produces Mini-Com surface mount boxes in lower port counts within the same Pan-Net® family. If 12 ports exceeds your termination count at a given location, evaluate the 6-port or single/dual-port variants in the same line to avoid unused module slots. Conversely, if you're aggregating more than 12 connections at a single point, a wall-mount enclosure or patch panel in a small rack is likely the better path.
This box pairs well with Panduit surface mount boxes and structured cabling accessories across copper and fiber infrastructure. When planning fiber runs to this box, account for the spool capacity in your slack calculation — the built-in spool is sized for typical service loops, not for storing large amounts of excess cable. Review your cable management plan for runs longer than standard drops.
What's in the Box
- 1x Panduit CBXF12IW-AY Mini-Com 12-Port Surface Mount Box (Off White, With Fiber Spool)
Frequently Asked Questions
Q: How many Mini-Com modules does the CBXF12IW-AY accept?
A: The CBXF12IW-AY accepts up to 12 Mini-Com modules. You can populate it with any mix of Mini-Com inserts — copper RJ45 jacks, fiber adapters, coax, or multimedia modules — in any combination across the 12 available ports.
Q: Does the CBXF12IW-AY include modules, or just the box?
A: The CBXF12IW-AY ships as the surface mount housing only — no Mini-Com modules are included. Mini-Com modules are purchased separately and installed into the box ports as needed for your application.
Q: What mounting methods does the CBXF12IW-AY support?
A: The box supports two mounting methods: adhesive tape for non-penetrating surface attachment, and screw mounting for permanent installation. For commercial installations requiring a secure, permanent termination point, screw mounting is recommended.
Q: Is the CBXF12IW-AY RoHS compliant?
A: Yes. The CBXF12IW-AY meets RoHS compliance standards, making it suitable for projects with environmental material restrictions or institutional specifications requiring RoHS-compliant components.
Q: What are the physical dimensions of the CBXF12IW-AY?
A: The CBXF12IW-AY measures 4.73 inches wide (120mm), 6.7 inches long, and 1.81 inches tall (46.1mm). The low-profile housing keeps wall space usage minimal even at full 12-port capacity.
Q: What is the purpose of the built-in fiber spool in the CBXF12IW-AY?
A: The fiber spool molded into the base of the box provides a controlled-radius storage point for cable slack. This protects fiber cables from bend-radius violations that can cause signal loss, and eliminates the need for improvised slack management like zip-tied loops behind the box.
The CBXF12IW-AY is the version of the Mini-Com surface mount box I reach for when a run includes fiber and I need slack management built into the termination point rather than handled ad hoc. The integrated spool isn't a luxury — on fiber-to-the-desk or fiber-to-camera runs, an uncontrolled service loop is a bend-radius problem waiting to surface as intermittent loss six months after the job closes.
Technical Highlights:
- 12-Port Capacity at 4.73 x 6.7 x 1.81 inches: That's a full dozen Mini-Com terminations in a housing smaller than a standard double-gang wall plate footprint — dense enough to handle a multi-feed security camera drop or a full workstation cluster without needing a second box.
- ABS Construction, RoHS Compliant: ABS handles normal commercial interior abuse without cracking under cable pull tension during termination. RoHS compliance clears the material restriction hurdle on government, healthcare, and institutional bids without a variance request.
- Adhesive or Screw Mounting: The dual-mount design is genuinely useful during phased buildouts — adhesive-mount during rough-in to get the box positioned, confirm the cable routing, then back-screw for the final secure mount without repositioning the terminations.
Deployment Considerations:
- The box ships without modules — budget Mini-Com inserts separately. On a 12-port box, partial population is common, but unused ports should be capped to keep the interior clean and prevent debris ingress at open module slots.
- The built-in fiber spool is sized for a typical service loop, not for storing significant excess cable length. If your fiber runs are long and you're coiling more than a standard 1–2 meter service loop, plan for additional cable management behind or below the box rather than relying solely on the spool.
This box is the right call for security camera infrastructure rooms where fiber backbone cables terminate alongside copper patch connections — the mixed-media flexibility of the Mini-Com system combined with the integrated fiber spool means you can handle both media types cleanly at one wall point without improvising slack storage.
