Panduit CJSUD6X88TGRDY Jack Module
Panduit CJSUD6X88TGRDY Jack Module
CJSUD6X88TGRDY

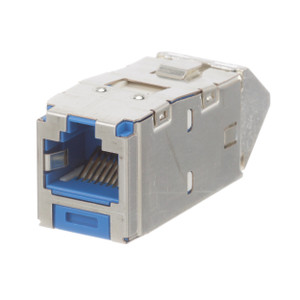

Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

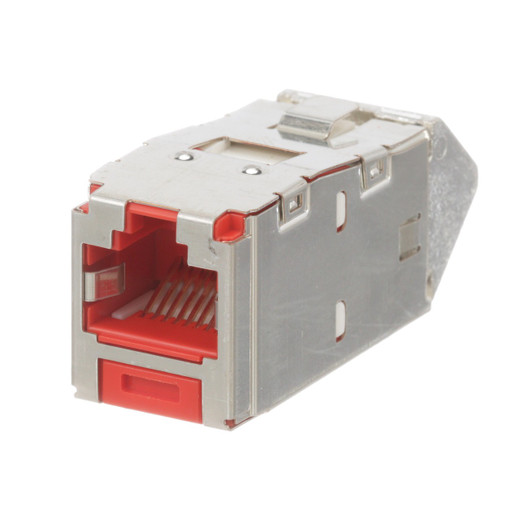

Panduit CJSUD6X88TGRDY Jack Module

Overview

The Panduit Mini-Com® Cat 6A Shielded RJ45 Up/Down 45° Angled TG Jack Module, model CJSUD6X88TGRDY, is engineered for terminating shielded 4-pair, 22-26 AWG twisted pair cable. Its angled design specifically addresses cable routing challenges in confined installations, ensuring a clean and efficient termination. Each module is factory tested to exceed industry standard performance requirements, guaranteeing reliable data transmission. The TG style termination simplifies the installation process by eliminating the need for specialized termination tools.

Compatibility

This jack module is designed for use with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports shielded 4-pair, 22-26 AWG twisted pair cable. The module is compliant with IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet standards, ensuring compatibility with high-power PoE devices.

Installation Notes

The TG style termination method negates the need for a separate punch-down tool, simplifying field installation. Each jack is individually serialized for traceability. The module meets IEC 60603-7 and supports 2500 connection cycles. It is RoHS compliant.

Expert Analysis
Specifications
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Red
Height In: 0.71
Height Mm: 18
Width In: 0.62
Width Mm: 15.7
Product Type: Jack Module
Carton Qty: 50
Package Qty: 1
Upc: 61305675583
Cable Category: copper-systems
Type: Jack Module
Q&A
Reviews
Product Video
Have Questions?

Panduit CJSUD6X88TGRDY Jack Module

$33.52
$24.99
Add to Cart
