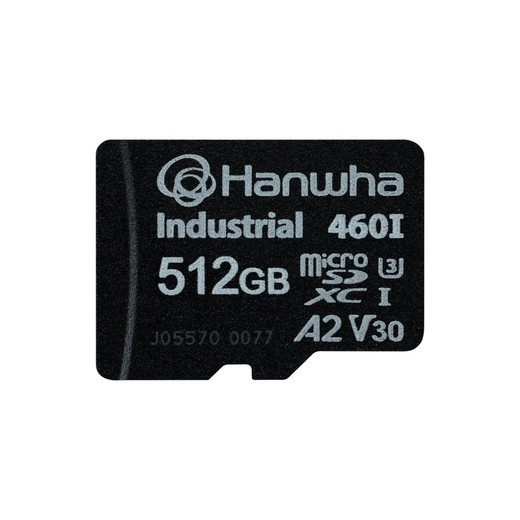

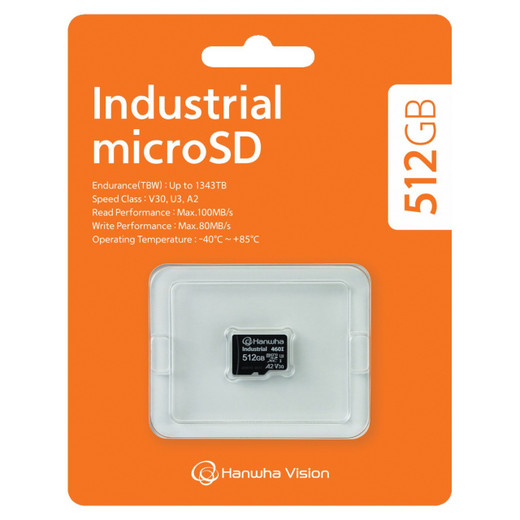

Hanwha SPP-E512G 512GB Industrial MicroSD Card
Overview
The Hanwha SPP-E512G is a 512GB microSDXC industrial memory card engineered for unattended surveillance and edge computing deployments where thermal stress, humidity swings, and write-heavy workloads destroy consumer-grade cards. Built on WD BiCS5 3D TLC NAND Flash technology with UHS-I interface, this card delivers the sustained write performance and environmental resilience required for continuous 24/7 video recording without throttling or premature wear-out. Unlike consumer cards that throttle or fail under heat, the SPP-E512G operates reliably across −40°C to +85°C — a thermal span that covers unheated outdoor enclosures in winter and direct-sun equipment boxes in summer. This combination of capacity, speed, and temperature tolerance directly addresses the field failure mode that costs integrators callbacks: a consumer card that works for 6 months, then corrupts footage or locks up during a heat wave.
Key Features
- 512GB capacity in postage-stamp form factor: Stores ~5–7 days of continuous single-camera H.264 recording at typical bitrates (4–8 Mbps), eliminating the need for external NVR storage in compact camera housings, mobile computing devices, and edge appliances. The 11mm × 15mm × 1.0mm footprint fits into tight camera enclosures and reduces cable routing complexity.
- V30/U3/A2 Speed Class certification: V30 guarantees minimum 30MB/s sustained writes — meaning the card won't drop below that threshold during video ingestion, preventing buffer stalls or frame loss. U3 compliance ensures 4K video compatibility; A2 provides optimized random I/O for application performance. These certifications are not marketing labels — they're verified performance thresholds that eliminate guesswork when choosing a card.
- 80MB/s sustained write speed, 100MB/s read: The 80MB/s write floor is critical for high-bitrate streams (e.g., H.265 or multi-stream H.264 at full resolution). A slower card would buffer and drop frames; the SPP-E512G maintains wire-speed performance without throttling.
- Operating temperature range −40°C to +85°C: Consumer cards typically spec 0°C to 60°C or 0°C to 70°C and throttle or fail outside those bounds. The SPP-E512G's −40°C floor enables deployment in refrigerated storage, arctic outdoor sites, and unheated sheds. The +85°C ceiling handles equipment enclosures in direct sunlight, near heat-generating infrastructure, or in industrial environments without thermal shutdown or data corruption.
- IPx7 submersion rating (1 meter, 30 minutes): The card survives brief water immersion, a real concern in outdoor camera installations where condensation or rainwater intrusion into the microSD slot can occur. This rating matters for cameras deployed near water features, in food processing facilities, car washes, or marine terminals.
- 1343TB total bytes written (TBW) endurance: At typical H.264 bitrates, this translates to 5–10 years of continuous single-camera recording before write wear-out. That lifespan aligns with camera system refresh cycles and removes premature card replacement as a hidden operational cost.
- Built-in Error Correction Code (ECC) and SMART health monitoring: ECC automatically corrects single-bit errors caused by cosmic radiation, electromagnetic interference, or thermal stress — a silent failure mode in unprotected cards that corrupts footage without warning. SMART support enables predictive failure analysis; NVR firmware or edge management platforms can alert you when health score drops, triggering proactive card replacement before catastrophic failure.
- EMC compliance: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8: ESD immunity to 8kV contact discharge, RF immunity, and magnetic field immunity ensure the card won't miswrite data or lock up when deployed near switching power supplies, wireless access points, or industrial RF equipment. These are not checkbox certifications — they directly prevent silent data corruption in electrically noisy environments.
Environmental Resilience & Deployment Context
The SPP-E512G handles 0–95% RH non-condensing humidity without derating performance. This makes it suitable for outdoor camera installations, unheated warehouses, shipping containers, and industrial sites where temperature and humidity swing throughout the day. When paired with network video recorders (NVRs) or edge appliances with microSD slots, the SPP-E512G eliminates the need for external storage infrastructure in remote or cost-sensitive deployments. For Hanwha IP cameras with onboard microSD support, this card delivers sufficient capacity and endurance to function as a local backup or edge cache without requiring a separate storage appliance.
Integration & Compatibility
The microSDXC form factor is universal — any device with a microSD or microSDXC slot recognizes the SPP-E512G without drivers or firmware updates. The UHS-I interface backwards-compatible with older microSD-only slots (though at lower speeds). When evaluating storage for surveillance systems, cross-check your camera or NVR's microSD specifications for supported capacity (most modern devices support 512GB) and refresh the device's firmware to the latest version before installation to ensure compatibility and access to the latest performance optimizations.
Frequently Asked Questions
Q: How much video can the SPP-E512G store?
A: At typical H.264 bitrates (4–8 Mbps per stream), a single 512GB card stores 5–7 days of continuous 24/7 recording. At lower bitrates (2–4 Mbps) or using H.265 compression, retention extends to 10–14 days. Actual duration depends on codec, resolution, and bitrate — contact your camera or NVR vendor for specific bitrate specs.
Q: Is the SPP-E512G suitable for outdoor deployments?
A: Yes. The IPx7 water ingress rating, −40°C to +85°C operating range, and 0–95% RH humidity tolerance make it suitable for outdoor camera housings, unheated enclosures, and industrial environments. The card itself is waterproof; ensure your camera's microSD slot is sealed or recessed to prevent direct water contact.
Q: Can the SPP-E512G be used in high-temperature or refrigerated environments?
A: Yes. The −40°C to +85°C operating range covers both extremes. At −40°C, the card remains functional (though access speed may be slightly slower); at +85°C, it won't thermal-throttle or corrupt data. For installations near freezing, avoid rapid thermal cycling, which can cause condensation inside the card slot.
Q: What does SMART health monitoring do?
A: SMART reports wear attributes such as program/erase cycle count and bit error rates. NVR firmware or third-party monitoring tools can read these metrics and alert you when the card's health score drops below a threshold, triggering proactive replacement before failure. Not all cameras or NVRs expose SMART data — check your device's feature set.
Q: Is the SPP-E512G compatible with all microSD slots?
A: The microSDXC form factor is universal. The card is backwards-compatible with microSD and microSDXC slots on any device. UHS-I speed is supported by modern cameras and NVRs; older devices with standard microSD (not UHS) will recognize the card but operate at lower speeds (up to ~25MB/s write). Check your device's specifications for maximum supported capacity (most support 512GB or higher).
Q: What is the expected lifespan of the SPP-E512G?
A: At typical bitrates, the 1343TB TBW (total bytes written) endurance translates to 5–10 years of continuous single-camera recording. Lifespan depends on write load, ambient temperature, and power cycling. SMART health monitoring can help predict failure and trigger replacement before the card fails.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SPP-E512G (often searched as SPP E512G) is a purpose-built industrial memory card for unattended surveillance, and it solves a real problem: consumer-grade microSD cards fail unpredictably under continuous write load, heat, and humidity. I've seen too many installations lose footage because someone installed a cheap card and didn't account for thermal stress. The SPP-E512G's −40°C to +85°C operating range and 1343TB TBW endurance directly address that gap. If you're specifying storage for a remote camera, edge appliance, or NVR with a microSD slot, this is the card that won't surprise you in the field.
Technical Highlights:
- V30/U3 Speed Class certification: Guarantees 30MB/s sustained writes and 4K video compatibility. A non-certified card might deliver burst speed but throttle under continuous load — the V30 promise means your bitrate won't drop mid-stream.
- 80MB/s write, 100MB/s read throughput: Sufficient for multi-stream H.264 or single-stream H.265 at full resolution without buffering. At 8 Mbps per camera, you can record 10 simultaneous streams without dropping frames.
- 1343TB TBW endurance at typical bitrates translates to 5–10 years continuous recording: That's two full refresh cycles on a typical surveillance camera lifecycle. You won't be replacing cards due to wear-out — you'll be replacing them because the system got upgraded.
- IPx7 submersion and EMC compliance (IEC 61000-4-2/3/8): Handles water intrusion and electrical noise. The ECC engine silently corrects bit-flips; the SMART health monitor watches for fatigue and gives you advance notice before failure.
Deployment Considerations:
- Verify your camera or NVR firmware supports 512GB microSDXC cards. Most modern devices do, but older models may cap at 256GB or 128GB. Check the device spec sheet before ordering.
- The SPP-E512G is fastest under UHS-I (up to 100MB/s read, 80MB/s write). Older microSD-only slots will recognize the card but operate at reduced speed — not a deal-breaker, just be aware of the performance trade-off in legacy devices.
- Don't rely on SMART health data unless your NVR or camera firmware explicitly supports it. Some devices read the card but ignore SMART attributes. If proactive health monitoring is critical to your SLA, confirm feature support during integration planning.
- In extreme cold (−40°C), access latency may increase slightly. This is normal and doesn't indicate a fault — the card remains functional and data-safe. Avoid rapid thermal cycling in very cold environments to prevent condensation inside the slot.
Choose the SPP-E512G for any surveillance or edge compute deployment where you need local storage resilience and you can't afford a callback due to card failure. Outdoor camera boxes, mobile computing appliances, and remote NVRs are its sweet spot. Skip it if you need faster-than-100MB/s throughput (use a solid-state drive instead) or if your device maxes out at lower capacity (step down to 256GB variant).
