Hanwha WWT-P-7205MW Micro WAVE Client Workstation
The Hanwha WWT-P-7205MW is a compact, high-performance WAVE client workstation purpose-built for Wisenet WAVE video management system deployments. Measuring just 1.42" W × 7.01" D × 7.17" H and weighing 3.09 lbs, this micro form factor system delivers enterprise-grade monitoring capabilities in space-constrained control rooms, operations centers, and distributed security environments. Pre-configured with Wisenet WAVE VMS client software and Windows 11 IoT Enterprise LTSC 2024, it arrives ready for immediate deployment without additional software installation or licensing delays.
Key Features
- Pre-installed Wisenet WAVE VMS Client — arrives fully configured with video management software, eliminating deployment delays and licensing ambiguity
- Intel Core Ultra 7 Processor with 16GB RAM — handles multi-stream video decoding, real-time playback, and dual-monitor operations without performance degradation
- Dual-Monitor Display Capability — 2× HDMI ports and 1× DisplayPort enable flexible multi-monitor configurations for comprehensive situational awareness
- 512GB SSD Storage — fast boot times, responsive application loading, and reliable performance in continuous-duty surveillance environments
- Windows 11 IoT Enterprise LTSC 2024 — long-term servicing channel (LTSC) delivers monthly security updates with no feature upgrades, ensuring predictable patching and system stability
- 2.5 GbE Ethernet Interface — single RJ45 connection supports high-bandwidth video streaming and remote system management
Connectivity & I/O

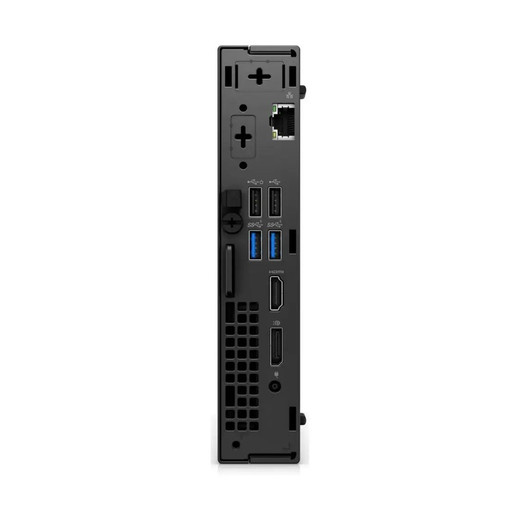

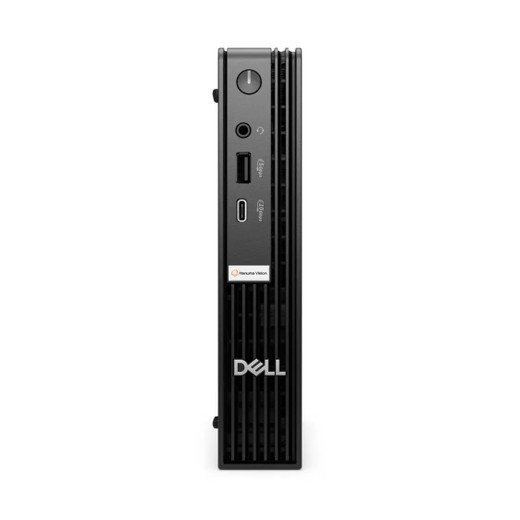

The WWT-P-7205MW provides extensive connectivity options including 1× USB 3.2 Gen1 front, 1× USB 3.2 Gen2 Type-C front, 2× USB 2.0 rear, 2× USB 3.2 Gen1 rear, and 3.5mm audio input. The 90W power adapter (100–240 VAC) supports global deployments with universal voltage input.
Reliability & Support
Built to withstand demanding surveillance environments, the workstation operates reliably across 50°F to 95°F (10°C to 35°C) with 20–80% non-condensing humidity. Storage temperature range extends to −40°F to 149°F. International certifications include UL, cUL, CB, and FCC compliance. The comprehensive 5-year next business day warranty with keep-your-hard-drive coverage provides long-term protection and minimizes downtime risk.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WWT-P-7205MW represents Hanwha's commitment to purpose-built surveillance workstations for mid-scale to enterprise deployments. The Intel Core Ultra 7 with 16GB RAM delivers sufficient processing headroom for multi-stream 4K decoding and responsive dual-display management without thermal stress. The LTSC variant of Windows 11 IoT Enterprise is a critical advantage for security operations—it eliminates feature-upgrade disruptions and provides predictable monthly patching cadence essential for SOC environments.
The micro form factor is particularly valuable for space-constrained control rooms and distributed monitoring posts. The 2.5 GbE interface is adequate for most surveillance networks, though integrators should verify bandwidth requirements for ultra-high-resolution or high-frame-rate deployments. Pre-installed Wisenet WAVE client software reduces commissioning time significantly.
The 5-year warranty with HDD retention coverage demonstrates confidence in platform durability and reduces total cost of ownership for security integrators managing multi-site deployments.
