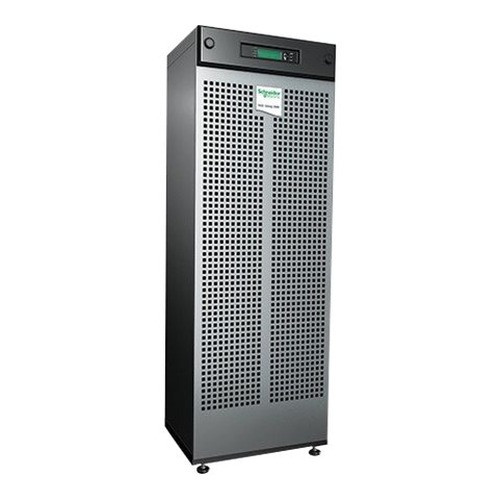

APC by Schneider Electric MGE Galaxy 3500 15KVA 208V with 2 Battery Modules - G35T15KF2B4S

APC by Schneider Electric G35T15KF2B4S MGE Galaxy 3500 15KVA Tower UPS

Overview

The APC by Schneider Electric G35T15KF2B4S is a 15 kVA / 12,000W three-phase-input, single-phase-output online double-conversion UPS designed for mid-tier data center rows, network equipment rooms, and critical infrastructure deployments where clean, regulated power is non-negotiable. Shipping with 2 battery modules and expandable to 4, it gives operators a direct path to longer runtime without forklift upgrades. The tower form factor fits alongside existing rack infrastructure or standalone in a wiring closet, and the front-panel LCD keeps runtime and load status visible at a glance without requiring a laptop or network connection.

This unit targets environments running at 208V input — common in North American commercial electrical panels — and handles wide input swings from 160V to 240V before switching to battery, which reduces unnecessary battery cycling on sites with marginal utility power. If you're sizing UPS for a power and UPS deployment in a commercial building with known voltage sag issues, that 80V input window matters more than it might look on paper.

Key Features

• 15 kVA / 12,000W Output Capacity: Handles a full rack of 1U servers, a mid-size NVR stack, or a dense PoE switch cluster without headroom anxiety. At 12kW true output power, you're not left guessing when mixed loads (servers + storage + networking) hit simultaneously.
• Expandable Battery Architecture (2 to 4 Modules): Ships with 2 VRLA battery modules and accepts 2 more without replacing the UPS chassis. For deployments where runtime requirements grow with the load — adding cameras, adding recorders, adding switches — this is the right buy-vs-upgrade tradeoff. Plan your runtime now, expand later without a full rip-and-replace.
• Wide Input Voltage Range (160–240V, 40–70Hz): A 80V input window means the G35T15KF2B4S rides through voltage sags that would kick a narrower UPS onto battery. Less battery cycling extends battery service life and reduces nuisance alarms on sites fed by aging transformers or long distribution runs.
• 93% Efficiency: At 93% operating efficiency, heat dissipation and operating cost are meaningfully lower than older online UPS designs running in the 88–90% range. In a 24/7 deployment, that 3–5% efficiency gap translates directly to annual electricity cost and cooling load — relevant when the UPS is running continuously for years.
• Output Voltage THD ≤ 2%: Two percent total harmonic distortion on the output side is low enough for sensitive switching-mode power supplies, network gear, and storage arrays. Dirty output power causes premature capacitor wear on downstream equipment; this spec keeps that risk low.
• Input Current THD ≤ 5%: Low input THD means the UPS itself doesn't inject significant harmonic noise back onto the building electrical system — relevant in shared-panel environments where other sensitive loads (medical, AV, industrial control) are on the same circuit infrastructure.
• 0.5 Power Factor: Note: the 0.5 power factor specification is conservative and reflects the rated capacity envelope. Actual connected load power factor should be verified against your specific equipment to confirm the 12,000W active power ceiling is the binding constraint, not apparent power.
• 51.3 dB Noise Level: At 51.3 dB, this UPS is audible in a quiet room but not disruptive in a server room or wiring closet environment. It's not rated for open office deployment, but it won't drown out conversation in an adjacent space.
• LCD Display: Front-panel LCD provides load percentage, battery status, input/output voltage, and estimated runtime — all without requiring a network connection or management software. Useful during commissioning and for quick field checks.
• RS-232 Management Port: The single RS-232 port supports serial communication with building management systems or legacy SNMP card integration. For environments running network infrastructure that expects UPS signaling via serial, this covers basic graceful shutdown and status reporting.
• Sealed Lead Acid (VRLA) Batteries: Valve-regulated lead-acid chemistry requires no water maintenance and can be installed in any orientation — no venting requirements beyond standard equipment room air exchange. Hot-swap capability (verify with battery module documentation) allows battery replacement without powering down the load.
• Short Circuit Protection: Built-in short circuit protection on the output prevents a downstream wiring fault from cascading into a full UPS failure — a basic but critical feature for multi-branch output deployments.

Integration & Compatibility

The G35T15KF2B4S accepts 208V AC input within a 160–240V range at 40–70 Hz, covering both standard 60Hz North American commercial power and 50Hz international or generator sources. The 3 AC output outlets serve direct equipment connections; for larger deployments, a downstream PDU matched to 208V input is the standard integration pattern.

The RS-232 interface supports connection to APC's PowerChute software for graceful OS shutdown signaling and event logging, or to third-party building automation systems that accept serial UPS telemetry. If your monitoring infrastructure runs on SNMP, an optional network management card slot (verify slot availability on this SKU) would be required — the base unit does not include an SNMP card.

For security integrators deploying this alongside network video recorders or large camera systems, the 12kW output capacity comfortably covers a dense NVR array with attached storage. Pair with a UPS selection guide to right-size runtime against your specific recorder and camera power draw. The tower form factor also means no rack space is consumed — relevant when rack U-count is tight in a security equipment room.

Frequently Asked Questions

Q: What is the true power output of the G35T15KF2B4S — 15 kVA or 12,000W?

A: Both figures are correct and describe different things. 15 kVA is the apparent power rating; 12,000W (12 kW) is the active (real) power the unit can deliver to connected equipment. Your servers, switches, and recorders draw watts, not VA, so 12,000W is the practical load ceiling to plan against.

Q: Can the battery modules be replaced or expanded while the UPS is running?

A: The G35T15KF2B4S ships with 2 VRLA battery modules and supports expansion to 4 modules. Hot-swap capability for battery replacement should be confirmed against the battery module documentation — the UPS architecture is designed for in-service battery service, but verify the specific module SKU supports your expansion scenario.

Q: What input voltage range does the G35T15KF2B4S support?

A: The unit accepts input from 160V to 240V AC at 40–70 Hz. This wide range allows it to ride through common utility voltage sags without switching to battery, reducing battery wear on sites with marginal or variable utility power quality.

Q: Does the G35T15KF2B4S include network management / SNMP capability out of the box?

A: The base unit includes one RS-232 serial port for management connectivity. SNMP/network management card capability would require an optional add-in card — verify slot availability and compatible card SKUs with APC by Schneider Electric documentation for this model.

Q: What is the operating temperature range for the G35T15KF2B4S?

A: The unit is rated for operation from 32°F to 104°F (0°C to 40°C). Standard equipment room or wiring closet environments fall comfortably within this range; avoid deployment in non-climate-controlled spaces that regularly exceed 104°F.

Q: How loud is the G35T15KF2B4S in operation?

A: The rated noise level is 51.3 dB. This is comparable to a typical office environment or quiet conversation. It is appropriate for equipment rooms and wiring closets but would be noticeable in an open office or library setting.

Eden Phillips

The spec I keep coming back to on the G35T15KF2B4S is that 160–240V input window. On paper it looks like a footnote, but in practice — especially in older commercial buildings where transformer taps haven't been adjusted in a decade — that range is the difference between a UPS that babysits the battery needlessly and one that actually rides through brownouts without logging a battery event every other day. Pair that with the 2-to-4 battery module scalability and you have a UPS that earns its keep across the full system lifecycle, not just at initial commissioning.

Technical Highlights:

• 93% Operating Efficiency: Across a 24/7 deployment, a 3–5% efficiency advantage over older online UPS designs compounds into real dollars and real heat load reduction — both matter when this unit runs continuously for years alongside always-on NVR and network stacks.
• Output THD ≤ 2%: Sub-2% output harmonic distortion protects switching-mode power supplies in downstream servers and storage from the premature capacitor wear that dirtier UPS output causes. This is the spec that separates power conditioning from mere backup power.
• Expandable VRLA Battery (2→4 Modules): Shipping with 2 modules and accepting 2 more means you can right-size runtime at purchase and expand in place as the load grows — no chassis replacement, no full migration project.

Deployment Considerations:

• The RS-232 port covers basic serial management and PowerChute integration, but if your NOC expects SNMP polling or network-based UPS monitoring, budget for an optional network management card — it is not included in this SKU. Confirm card slot availability before purchase.
• The 0.5 power factor rating is conservative; verify your connected load's actual power factor against the 12,000W active power ceiling, not just the 15 kVA apparent power figure. Mixed loads with high-PF modern server PSUs may push closer to the watt limit than the VA limit.

This unit is the right specification for a mid-size security operations center or network equipment room running a dense NVR array, PoE switch stack, and access control infrastructure at 208V — where runtime scalability and clean output matter more than raw capacity headroom.
