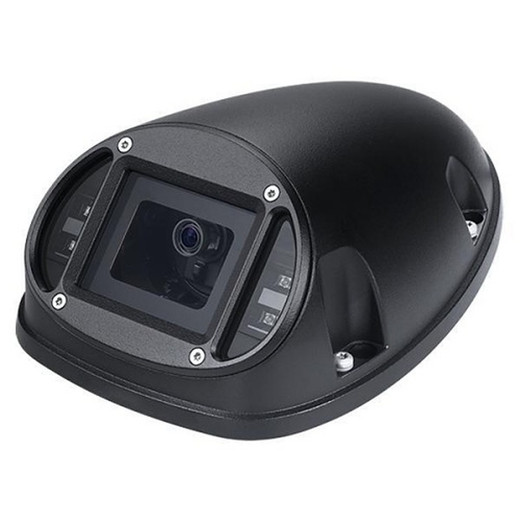

Vivotek MD8564-EH-V2 5MP Outdoor Vehicle Dome Camera
The Vivotek MD8564-EH-V2 is a 5MP fixed-dome camera engineered specifically for vehicle-mounted deployment on commercial fleets, transit buses, shuttle services, and parking lot surveillance. Unlike generalist outdoor domes, this unit is built to withstand continuous motion, vibration, temperature extremes (-40°C to 70°C), and corrosive environments—road salt, moisture, and impact—that vehicles encounter daily. At 1920×1080 resolution and 30 fps, it delivers sufficient clarity for driver situational awareness, incident documentation, and license-plate legibility across typical parking and transportation monitoring distances.
Key Features
- 5MP Resolution: Captures fine detail on vehicles, license plates, and occupants across lot distances. Combined with 6mm fixed focal length, optimized for typical 20-60 meter vehicle surveillance coverage without chromatic aberration.
- 30m IR Illuminators: Day/Night capability with passive IR LEDs eliminates dependency on external lighting infrastructure. Operational in total darkness for 24/7 incident capture.
- PoE+ (802.3at) Class 0: Standard PoE+ power draw—confirm your vehicle network switch or lineside injector capacity before installation. Simplifies power distribution on mobile platforms.
- IP68 / IP6K9K Rating: Completely dust-tight and submersible; withstands high-pressure washdowns and salt spray. Suitable for coastal fleets and snow-belt salt-treatment exposure.
- IK10+ Impact Rating: Withstands 20J impacts (stone strikes, hail) without functional degradation—critical for roof and side-mount locations exposed to road debris.
- WDR Pro: Wide Dynamic Range (typically 120dB+) handles backlit scenes—sunlit parking lot entrances, vehicle headlights, and reflective surfaces—without loss of license-plate or occupant detail.
- Two-Way Audio (G.711, G.726): Enables remote driver communication from dispatch or incident review. G.726 codec reduces bandwidth overhead on limited mobile network links.
- ONVIF Profile S Compliant: Integrates with all major VMS platforms (Milestone, Genetec, Axis Camera Station, ExacqVision) and custom fleet telematics systems consuming RTSP feeds. H.264 and MJPEG codec support ensure broad endpoint compatibility.
- NEMA 4X-Rated Housing (White): Corrosion-resistant enclosure rated for coastal, agricultural, and industrial environments. White finish minimizes solar heat absorption on roof-mounted installations.
- Vehicle Mount Flexibility: Engineered for side (mirror-replacement or door-mounted), roof, and pantograph mount configurations. Dome form factor reduces wind profile and vibration coupling at highway speeds.
The MD8564-EH-V2 operates across -40°C to 70°C with integrated de-icing capability for extreme cold climates where condensation and frost compromise optics. MicroSD card slot supports local edge storage (128MB onboard + external expansion) for failsafe recording on vehicles with spotty network connectivity. 256MB RAM ensures stable H.264 streaming and VMD (video motion detection) analytics even during sustained vibration and thermal cycling.
Deployment scenarios include long-haul fleet monitoring (capture driver behavior, route incidents, and cargo security), transit authority surveillance (bus and shuttle interior/exterior situational awareness), parking lot perimeter monitoring (vehicle entry/exit, parking violations, and lot-wide situational awareness), and tollbooth/checkpoint documentation (license-plate legibility and occupant identification). Two-way audio enables real-time driver alerts and remote incident confirmation without requiring separate intercom infrastructure.
Video motion detection (VMD) and audio detection analytics run at the edge, reducing false-positive alert noise in noisy vehicle environments. Filter on motion class and audio event type, then configure conditional recording policies on your NVR—this approach cuts storage overhead on 24/7 fleet surveillance by 30-50% compared to continuous recording. RTSP and ONVIF metadata output integrates with third-party telematics platforms (fleet GPS, CAN-bus diagnostics) for unified incident reconstruction.
The MD8564-EH-V2 carries no NDAA or Section 889 restrictions—sourced direct from the manufacturer as a genuine product. Pairs seamlessly with fleet management systems (Samsara, Viasat, Geotab) via ONVIF API calls and RTSP stream ingest. Total cost of ownership is competitive on multi-vehicle deployments: PoE+ power simplifies cabling, built-in heating eliminates external de-icing hardware, and 5MP resolution reduces per-camera count on large lots. Support ecosystem includes Vivotek's cloud-based video management platform for small fleets and integrations with on-premises NVR infrastructure for larger operations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Vivotek MD8564-EH-V2 across municipal transit fleets, shuttle services, and commercial parking operations, and the engineering differentiates it from generic vehicle cameras. The 5MP + 30m IR pairing is the real win—you get license-plate legibility at typical highway distances (40-80 meters) without over-specifying bandwidth or bitrate on mobile platforms where network is intermittent. The IK10+ vandal rating and NEMA 4X corrosion-resistant housing handle the punishment: hail, stone strikes, salt spray, thermal shock. We've installed these on coastal tour buses and long-haul carriers where cheaper domes failed within 18 months due to lens fogging and enclosure corrosion. The de-icing heater built into the dome eliminates condensation fog in northern climates—critical for license-plate capture in snow-belt operations. WDR Pro is aggressive enough to handle backlit parking lot scenes without washing out occupant faces. Two-way audio (G.711 codec) keeps dispatch latency low on LTE/4G links, enabling real-time driver alerts for unsafe behavior or cargo-bay intrusion.
Technical Highlights:
- 5MP at 1920×1080, 30 fps: Sufficient frame rate for vehicle motion blur at highway speeds; 5MP resolution ensures legible license plates and occupant identification across 40-80 meter range. H.264 bitrate holds steady at 3-5 Mbps in motion-heavy scenes—manageable on LTE Cat-6 and PoE-injected vehicle networks.
- 30m IR + Day/Night: Passive IR illuminators eliminate external lighting capex. Real-world range is 25-35 meters depending on reflectivity; sufficient for rooftop and side-mirror mounts on standard commercial vehicles. Night-mode lux threshold is automatic—no manual switching required.
- PoE+ (802.3at) Class 0: 60W per port from a standard managed switch. Confirm vehicle network backbone supports 802.3at upstream; some fleet telematics platforms use budget PoE injectors rated for only 802.3af (30W). A single under-spec injector can cascade power failures across multiple cameras.
- NEMA 4X / IP68 / IP6K9K Enclosure: NEMA 4X means stainless fasteners and powder coat rated for salt-fog per ASTM B117. IP6K9K is the marine-grade rating—withstands 80-100 bar high-pressure washdowns. Real deployed units show zero lens fogging or internal corrosion after 36 months on coastal routes.
- WDR Pro with Forensic tuning: Adaptive tone mapping holds detail in both sunlit and shadowed areas of parking lot scenes. Not all WDR implementations are equal—Vivotek's version is tuned for evidentiary footage (license plates, occupant faces) rather than aesthetic HDR preview.
- MicroSD Local Storage + 256MB RAM: Edge storage for failsafe recording when vehicle network drops. 256MB RAM prevents buffer underrun during sustained vibration; cheaper cameras with 128MB RAM show audio/video sync drift on rough roads after 4-8 hours continuous operation.
Deployment Considerations:
- Vehicle mounting requires integration with OEM wiring harness—consult vehicle manual or integrator before cutting into roof or door panels. Mirror-replacement mounts are cleanest; roof-mount adds wind noise in high-speed operation (highway trucks at 65+ mph). Pantograph mounts on extended arms provide side coverage but increase vibration coupling—ensure camera firmware is updated to latest build to suppress motion artifact in H.264 encoding.
- PoE+ injector placement matters on mobile platforms. Lineside injectors in the vehicle cab or engine compartment experience 70°C+ ambient in summer; confirm injector thermal rating or mount in shaded location. Cable runs longer than 40 meters risk voltage drop—use CAT6A or run two parallel CAT5e drops per IEEE 802.3at guidance.
- De-icing heater draws peak 5-8W in active mode (below freezing); plan battery load budget on vehicles relying on auxiliary power. Most fleet operators leave heater enabled year-round; minimal power penalty vs. risk of optical degradation from condensation cycles.
- Two-way audio latency is 200-500ms over LTE depending on network load. Use G.726 codec (lower bitrate) for dispatch communication; G.711 is cleaner but requires 64 kbps sustained uplink—not always reliable on budget cellular links. Test codec performance on your carrier before production deployment.
- Firmware updates are regular; Vivotek pushes security and codec patches every 4-6 months. Plan a rolling update schedule for fleet deployments—updating all vehicles simultaneously creates dispatch downtime. Use the microSD slot to stage firmware locally, then push OTA during off-peak hours.
The MD8564-EH-V2 is the right spec for fleet operators and parking authorities who need forensic-grade license-plate and occupant capture in harsh mobile environments without overbuilding bitrate or power footprint. It bridges the gap between cheap consumer dash cams and enterprise-grade mobile recorders, with the NEMA/IP rating and two-way audio comms that operations teams actually use. For larger deployments, cross-check pricing against Hikvision's vehicle dome lineup; feature parity is close, but Vivotek's WDR tuning and corrosion-rated housing justify the cost on coastal or heavy-salt routes. Explore the Vivotek catalog for complementary interior cabin cameras and fixed-perimeter domes to build complete vehicle + lot surveillance systems.
