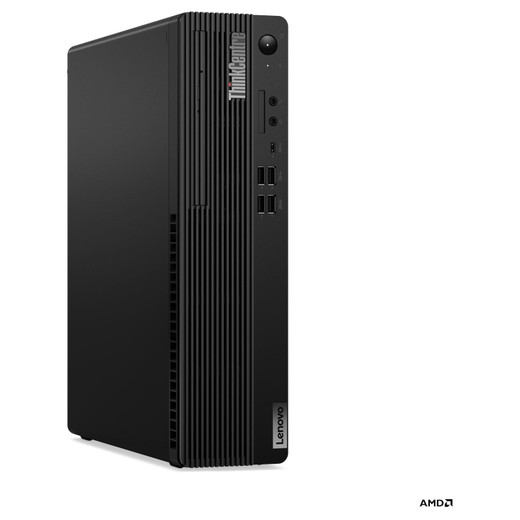

Lenovo 12TA000PUS M75s Gen 5 Small Form Factor Desktop PC

The Lenovo M75s Gen 5 SFF — part number 12TA000PUS — is a compact, commercially hardened desktop built for organizations that need reliable processing power, enterprise manageability, and a small physical footprint without sacrificing expansion room. At 8.2 liters, it fits a rack shelf, a mounting arm, or an under-desk bracket while delivering a six-core AMD Ryzen 5 PRO 8500G processor, 16GB of DDR5-5200 memory, and a 512GB PCIe 4.0 NVMe SSD out of the box. This is a straightforward workstation for security operations centers, IT workstations, VMS client stations, and general commercial deployments where Windows 11 Pro manageability and a three-year onsite warranty matter more than flashy consumer specs.

Key Features

• AMD Ryzen 5 PRO 8500G (6C/12T, 3.5–5 GHz): Six cores and twelve threads with a 5 GHz boost clock handle multi-stream VMS decoding, concurrent browser sessions, and remote management tools without queuing. The PRO designation adds AMD DASH remote management — useful if your IT team manages endpoints centrally without deploying individual RMM agents.
• 16GB DDR5-5200 UDIMM, dual-channel: DDR5 at 5200 MT/s is a meaningful step over DDR4 for memory-bandwidth-sensitive workloads like multi-stream video decoding. The dual-channel configuration extracts maximum bandwidth from the integrated Radeon 740M GPU. Two UDIMM slots support up to 64GB, so you can double or quadruple memory without replacing the machine if workloads grow.
• 512GB PCIe 4.0 x4 NVMe SSD (M.2 2280, Opal 2.0): PCIe Gen 4 sequential reads are roughly 2x Gen 3 — application launches and OS operations are noticeably faster. Opal 2.0 hardware encryption means the drive can be secured and remotely wiped via management software without a software encryption performance penalty. Relevant for deployments with data-at-rest compliance requirements.
• Integrated AMD Radeon 740M: The on-die GPU handles up to three simultaneous displays via the rear HDMI 2.1 and dual DisplayPort 1.4a outputs. For a VMS operator station or multi-monitor security workstation, this removes the need for a discrete GPU add-in card — keeping power draw low and the chassis quiet.
• Storage expandability — up to 3 drives: The chassis supports one 3.5-inch HDD bay plus two M.2 SSD slots (three M.2 slots total, one occupied). If you need local video archive storage on a VMS client or edge recorder, you can add a multi-terabyte 3.5-inch drive and a second NVMe without opening another budget line for an external storage device.
• Front I/O: 1x USB-C 5Gbps (15W) + 4x USB-A 5Gbps + 4x USB-A 2.0: Nine USB ports total between front and rear is unusually generous for an SFF chassis. The front USB-C at 15W charging handles a connected tablet or phone without a separate charger. For a workstation running USB-attached card readers, biometric modules, or HID devices, port count matters — you won't be hunting for a hub.
• Wi-Fi 6 (802.11ax) + Bluetooth 5.3: The Realtek RTL8852BE provides Wi-Fi 6 on the 2.4 and 5 GHz bands with 2×2 MIMO. If the deployment location lacks a wired drop, this avoids a USB Wi-Fi dongle. Bluetooth 5.3 covers wireless peripherals. The Gigabit Ethernet port is still there for wired-first deployments.
• MIL-STD-810H validation: The chassis passed MIL-STD-810H environmental testing — vibration, shock, humidity, altitude, temperature variation. For deployments in light industrial environments, server rooms with variable HVAC, or locations with physical vibration (near loading docks, factory floors), this gives a documented reliability baseline that consumer-grade hardware lacks.
• Security: Discrete TPM 2.0 (FIPS 140-2) + Kensington Lock + Padlock Loop: The discrete TPM 2.0 chip is FIPS 140-2 certified and TCG certified — required for BitLocker in full TPM-backed mode and for Windows 11 Pro's Secure Boot and Pluton compatibility path. The physical Kensington slot and padlock loop are relevant if the machine is deployed in a semi-public area like a reception desk or shared operations area.
• 260W PSU at 90% efficiency, ENERGY STAR 8.0, EPEAT Gold: A 90% efficient 260W supply draws less idle current than a standard 80 PLUS Bronze unit at the same load. EPEAT Gold and ENERGY STAR 8.0 satisfy most public-sector and enterprise sustainability procurement requirements without any extra paperwork.
• Windows 11 Pro preloaded: Ships with Windows 11 Pro — not Home — which means domain join, BitLocker, Remote Desktop host, Group Policy, and Hyper-V are all available day one. No upgrade license needed.

Integration and Compatibility

The 12TA000PUS integrates into standard commercial IT environments without friction. AMD DASH (via the PRO chipset) supports out-of-band management alongside standard WMI and WS-Management interfaces, compatible with Microsoft Endpoint Configuration Manager, Ivanti, and similar RMM platforms. The discrete TPM 2.0 supports BitLocker volume encryption, Windows Hello for Business, and Azure AD hybrid join flows. For surveillance workstation deployments, the triple-display output (HDMI 2.1 + 2x DP 1.4a) supports a standard three-monitor operator layout without additional hardware. The PCIe 3.0 x16 low-profile slot accepts a single-slot GPU or capture card if the integrated Radeon 740M is insufficient for a specific decode or display workload — useful when adding a dedicated GPU for high-channel-count NVR client decoding. The M.2 slot ecosystem (three total, one occupied by the boot SSD) leaves room for a secondary NVMe cache drive or a Wi-Fi upgrade. Explore the full Lenovo commercial desktop line for other form factors and processor tiers in the ThinkCentre and ThinkStation families. For organizations evaluating workstation requirements alongside IP camera deployments, pairing this unit with a software VMS and a PoE switch gives a complete edge-to-display architecture at a predictable per-seat cost. See the VMS workstation selection guide for channel-count and decoding benchmarks by processor tier.

Frequently Asked Questions

Q: What is the warranty on the Lenovo 12TA000PUS?

A: The 12TA000PUS includes a 3-year onsite manufacturer warranty. Onsite coverage means a technician comes to the deployment location for hardware repairs — no depot shipping required during the warranty period.

Q: Can the 12TA000PUS support three monitors simultaneously?

A: Yes. The rear I/O includes one HDMI 2.1 port and two DisplayPort 1.4a outputs, all driven by the integrated AMD Radeon 740M. Three monitors can run concurrently without a discrete GPU. DisplayPort 1.4a supports HBR2 and DSC, so high-resolution or high-refresh monitors are supported on those ports.

Q: How much memory can the 12TA000PUS support, and can it be upgraded?

A: The system ships with 16GB DDR5-5200 installed across one UDIMM slot (or as a dual-channel kit). It has two DDR5 UDIMM slots and supports up to 64GB DDR5-5200. Adding a second DIMM to fill both slots also activates dual-channel mode if single-channel is the shipped configuration, which improves integrated GPU performance.

Q: Does the 12TA000PUS have hardware encryption support for the SSD?

A: Yes. The 512GB NVMe SSD is Opal 2.0 compliant, enabling hardware-based self-encryption. Combined with the FIPS 140-2 certified discrete TPM 2.0, the system supports full BitLocker encryption in TPM-backed mode with no measurable performance impact from software encryption overhead.

Q: Is there room to add internal storage beyond the included 512GB SSD?

A: Yes. The chassis supports up to three drives: the included M.2 NVMe in one slot, plus one additional M.2 SSD slot and one 3.5-inch HDD bay. This allows adding multi-terabyte spinning storage for local video archive or bulk data without external enclosures.

Q: What management protocols does the 12TA000PUS support for remote administration?

A: The system includes AMD DASH (Desktop and mobile Architecture for System Hardware) via the AMD PRO platform. DASH provides standards-based out-of-band management for remote power control, hardware inventory, and configuration without requiring the OS to be running. This integrates with management platforms that support DMTF DASH, including select configurations of Microsoft Endpoint Configuration Manager.

James Everett

The 12TA000PUS is the unit I'd spec for a VMS operator station or a security operations workstation where space is constrained but the operator needs three screens, local processing muscle, and a machine the IT team can manage remotely. The Ryzen 5 PRO 8500G's six cores at up to 5 GHz handle multi-stream decode without a discrete GPU taking up the single low-profile PCIe slot — leaving that slot available for a capture card or a dedicated decode accelerator if channel counts push past what the integrated Radeon 740M can handle.

Technical Highlights:

• DDR5-5200 dual-channel: The memory bandwidth improvement over DDR4 is tangible for the integrated GPU. Running three 1080p or two 4K displays from the Radeon 740M benefits directly from the higher bus throughput — less frame-drop under load compared to DDR4-equipped predecessors.
• Opal 2.0 NVMe + FIPS 140-2 TPM 2.0: Hardware encryption at both the drive and platform level satisfies most enterprise data-at-rest requirements without the CPU overhead of software-based BitLocker. For a machine handling recorded video evidence or access control logs, that's a compliance checkbox that costs nothing in performance.
• MIL-STD-810H chassis in an 8.2L SFF package: Passing MIL-STD-810H in a sub-9-liter chassis is not trivial. The environmental tolerance spec matters in server rooms with unreliable climate control or in light industrial areas — the machine is documented to handle it, not just marketed to.

Deployment Considerations:

• The single PCIe 3.0 x16 slot is low-profile only — full-height cards won't fit. Verify that any planned GPU or capture card has a low-profile bracket available before ordering.
• Wi-Fi 6 is included but the Realtek RTL8852BE is a 1×1 or 2×2 chip (not Intel AX211), so if the deployment requires Wi-Fi 6E (6 GHz band) for a dense RF environment, plan for a Wi-Fi 6E M.2 upgrade card in the open M.2 slot.

Best fit: a three-monitor VMS client station or SOC analyst workstation in a space-constrained environment — rack shelf, under-desk mount, or a shared operations area — where IT needs remote manageability via AMD DASH and the compliance team needs documented hardware encryption and TPM 2.0 attestation.
