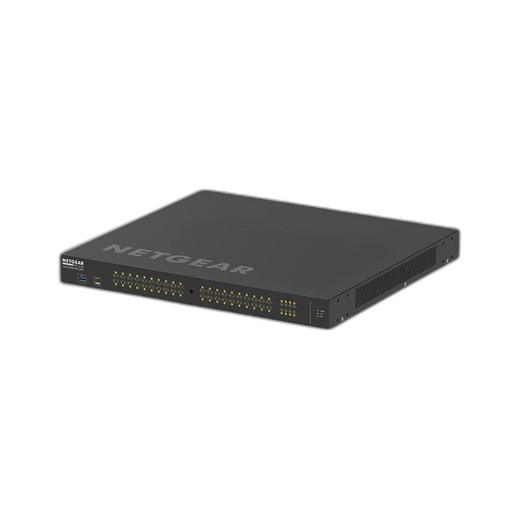

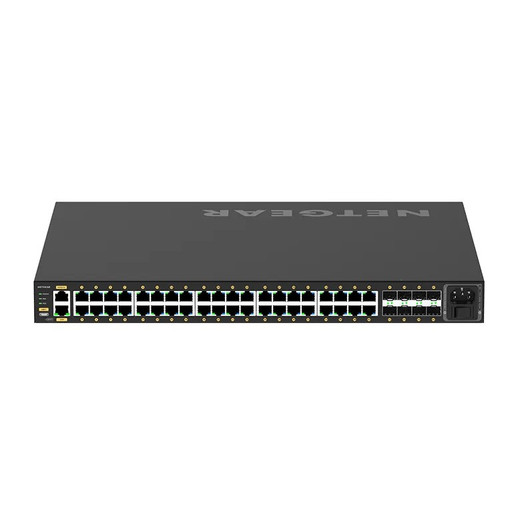

NETGEAR GSM4248PX-TAANAS 24-Port 10G Managed Switch with PoE+
Overview
The NETGEAR GSM4248PX-TAANAS (often searched as GSM4248PX TAANAS) is a 24-port Layer 3 managed network switch designed for enterprise IP security deployments, data center aggregation, and high-throughput warehouse automation environments. The combination of 24 copper ports running at 10 Gbps per port delivers 480 Gbps of aggregate switching capacity—enough to handle simultaneous 4K multi-camera streams, access control readers, and environmental sensors without bottlenecking. TAA (Trade Agreements Act) compliance and managed switching capabilities make this unit suitable for government, defense, and enterprise procurement cycles where regulatory oversight matters.
Port density and speed are only part of the story. The real value sits in power delivery: integrated PoE+ on all 24 ports eliminates the need for separate PoE injector midspans, reducing cable runs and simplifying the physical footprint in server rooms or security operations centers. If you're running dozens of IP cameras, each pulling 10–30W, or networked access control panels rated for PoE, that centralized power budget matters operationally and financially.
Port configuration and throughput
All 24 ports operate at 10 Gbps, with an internal switching fabric rated for 480 Gbps total throughput. This means every port can sustain line-rate traffic simultaneously—no oversubscription penalty if you plug cameras into one port and a fiber uplink into another. For integrators managing multi-building campuses or warehouse floors with hundreds of IP cameras, that non-blocking architecture reduces the risk of packet loss during peak recording or analytics uploads.
Eight uplink ports support fiber connectivity (via optional transceiver modules), allowing you to extend beyond the 24-port copper footprint and connect to core switches or dark fiber runs without introducing a second aggregation device. In practice, this means one switch can serve as a primary distribution point for an entire security floor rather than daisy-chaining units.
PoE delivery
The GSM4248PX-TAANAS delivers up to 740W of PoE+ power across all 24 ports simultaneously. That's roughly 30W average per port—enough for high-power thermal or 4K IR cameras, access control panels with backup batteries, or industrial wireless access point units. No rate-limiting per port; every device connected gets full PoE+ delivery up to its individual power draw limit. For warehouse automation environments running dozens of networked sensors or automation controllers, that headroom avoids the tedious power-budget spreadsheets and additional power supplies that plague smaller switches.
Unlike unmanaged units, you can monitor and throttle power delivery per port via the management interface, so a misconfigured device drawing excessive current won't crash the whole switch.
Management and monitoring
The GSM4248PX-TAANAS is a managed switch running L3 intelligence—VLAN support, QoS (Quality of Service), and SNMP/Syslog for integration with enterprise monitoring tools like Nagios, Zabbix, or Splunk. This matters when you have to prioritize video traffic over general network noise or guarantee bandwidth to critical analytics servers. Web-based GUI and CLI access let you configure port mirroring (SPAN) for traffic analysis, set up link aggregation, and deploy redundancy protocols like RSTP.
For security integrators managing multiple sites, managed switching also enables remote diagnostics and power-cycling of problematic devices without a truck roll—real operational savings on 24/7 surveillance deployments.
Environmental ratings
Designed for standard data center and network closet environments. Typical operating temperature range is 0–40°C with non-condensing humidity. If you need outdoor or harsh-environment resilience, this is not the unit; consider a ruggedized or fanless variant from the NETGEAR lineup for those scenarios.
Installation notes
The GSM4248PX-TAANAS ships as a rackmount chassis (19-inch standard format) with redundant power supply options available. Cabling is RJ-45 CAT6/CAT6A for copper ports; fiber uplinks require SFP+ transceiver modules (not included). Standard network deployment practice: deploy in a central location (equipment room or server closet) and fan out to edge devices via structured cabling. For large installations, consider stacking multiple units via proprietary stacking modules to simplify management and reduce your IP addressing overhead.
What's in the Box
Specific package contents were not detailed in available evidence. Contact the vendor or manufacturer for exact items (power cables, rack ears, documentation).
Frequently Asked Questions
Q: Is the GSM4248PX-TAANAS NDAA Section 889 compliant?
A: TAA compliance is confirmed; NDAA Section 889 details depend on component sourcing and should be verified with the manufacturer or specialty distributor before procurement into federal programs.
Q: Can I stack multiple GSM4248PX-TAANAS units for redundancy or scaling?
A: Yes. NETGEAR supports stacking via optional stacking modules. This centralizes management under a single IP address and simplifies provisioning across multiple switches.
Q: What PoE+ wattage does each port deliver?
A: The unit provides up to 740W total across 24 ports, meaning roughly 30W average per port, up to the individual device's power draw limit. No per-port capping unless you configure QoS policies.
Q: Do the fiber uplink ports require separate transceiver modules?
A: Yes. The eight uplink ports use SFP+ form factor and accept optional transceivers (not included). Standard options include 10G-LR, 10G-SR, and direct-attach copper DAC cables.
Q: What happens if I exceed the 740W PoE budget across all ports?
A: The switch includes protection logic to prevent overload. Ports will shut down or throttle in a managed sequence rather than causing a complete failure. Managed mode allows you to monitor per-port power draw via the GUI to avoid this scenario.
Q: Is this switch suitable for outdoor or warehouse floor deployment?
A: No. The GSM4248PX-TAANAS is rated for standard data center/network closet environments (0–40°C). For outdoor or high-vibration warehouse automation deployments, a ruggedized or industrial variant is recommended.
The GSM4248PX-TAANAS sits at a sweet spot for medium-to-large enterprise security and warehouse automation projects. 24 ports of 10G with 740W integrated PoE+ means you're not wrestling with power budgets or hunting for separate injector midspans. For integrators used to daisy-chaining smaller managed switches or blending managed and unmanaged units, this single-unit architecture simplifies both cabling and operational support.
Technical Highlights:
- 480 Gbps non-blocking fabric: Every port sustains full 10 Gbps simultaneously—no oversubscription. Critical for parallel 4K streams or high-frequency sensor data without packet loss.
- 24-port PoE+ at 740W budget: Eliminates midspan injectors and simplifies power planning. Roughly 30W per port on average, enough for industrial cameras, thermal units, and access control panels drawing 10–25W each.
- Managed L3 switching: VLAN, QoS, SNMP, and port mirroring allow traffic prioritization and remote diagnostics. Real difference when you have to isolate video traffic from general network congestion or troubleshoot packet loss without a site visit.
- Eight fiber uplinks (SFP+): Dark fiber or long-distance aggregation without a separate chassis. Keep deployment flexible as your estate grows.
Deployment Considerations:
- Data center or closet only: Standard operating range is 0–40°C, non-condensing. Skip this if you need outdoor, mobile, or high-vibration warehouse floor resilience.
- Transceiver modules not included: Budget for SFP+ optical or DAC cables separately if you plan to use the uplink ports. That's often an afterthought on quotes.
- Stacking requires optional modules: If redundancy or multi-floor distribution matters, plan for stacking hardware and confirm NETGEAR's stacking license terms upfront.
Deploy the GSM4248PX-TAANAS as your primary aggregation point for campus or multi-building security estates. Its non-blocking switching and centralized PoE make it the right choice when you have 15+ IP cameras, access control readers, and environmental sensors all competing for bandwidth. Avoid it for outdoor or mobile deployments—that's not its lane.
