QNAP M.2 2280 Pcie Nvme GEN4 X4 To U.2 Pcie Nvme - QDA-UMP4

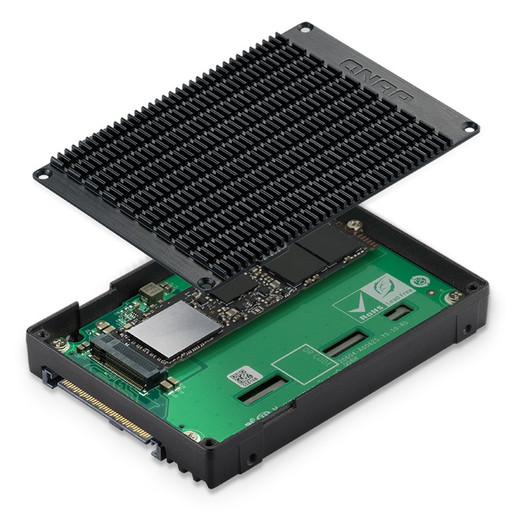

QNAP QDA-UMP4 M.2 to U.2 PCIe 4.0 x4 NVMe SSD Adapter

Overview

The QDA-UMP4 is a passive adapter that lets you install a standard M.2 2280 (M-key) PCIe NVMe SSD into a 2.5-inch U.2 SFF-8639 drive bay at full PCIe 4.0 x4 bandwidth. If your QNAP NAS or server has an empty U.2 slot and you have M.2 NVMe drives on hand — or M.2 pricing is more favorable than U.2 for your capacity target — the QDA-UMP4 bridges the physical connector gap without any software, drivers, or firmware changes. It is a pure hardware interposer: install it, seat the M.2 SSD, and the system sees a native U.2 NVMe device.

This is not a RAID card, not a cache tier controller, and not an active device of any kind. Its value is entirely in connector translation and the ability to run the connection at the full PCIe 4.0 x4 rated speed of both the adapter and the drive installed in it.

Key Features

• PCIe 4.0 x4 Electrical Passthrough: The adapter supports up to PCIe 4.0 x4 signaling end-to-end. That means a Gen 4 M.2 NVMe drive seated in the QDA-UMP4 can hit its rated sequential speeds — typically 5,000–7,000 MB/s — without being throttled down to Gen 3 x4 bandwidth. For NAS caching or high-throughput storage pools, this matters: you are not buying a fast SSD only to choke it at the interface.
• M.2 2280 M-Key Form Factor: Accepts the industry-standard 2280 size (80mm length), which covers the overwhelming majority of consumer and enterprise M.2 NVMe drives available today. If you are sourcing SSDs separately (the SSD is not included with the QDA-UMP4), you have maximum flexibility in brand and capacity selection.
• U.2 SFF-8639 Output Connector: The SFF-8639 connector is the standard U.2 interface used in enterprise NAS enclosures, servers, and storage arrays. The QDA-UMP4 presents exactly this interface to the host system, so the slot treats it identically to a native U.2 NVMe SSD — no special configuration required on the host side.
• No Software or Drivers Required: The adapter is passive hardware — there is no firmware to update, no driver to install, and no software dependency to manage. This matters in production environments where adding driver packages to a NAS OS introduces maintenance overhead and potential compatibility risk across OS updates.
• Expands U.2 Bay Utility: U.2 bays are common in QNAP high-end NAS models designed for enterprise caching or all-flash pools. If those bays would otherwise sit empty due to U.2 NVMe SSD scarcity or pricing, the QDA-UMP4 (often searched as QDA UMP4) lets you populate them with M.2 NVMe drives, making otherwise idle hardware productive without chassis modification.
• Passive Design — No Power or Thermal Overhead: Because the adapter adds no active components, it draws no additional power and generates no additional heat beyond the SSD itself. In a dense NAS with multiple drive bays, this keeps the thermal and power budget clean.

Integration and Compatibility

The QDA-UMP4 is designed for QNAP NAS models and compatible servers that include 2.5-inch U.2 PCIe NVMe SFF-8639 drive bays. Before ordering, confirm that your target bay is a U.2 PCIe NVMe bay specifically — not a U.2 SATA bay and not a standard 2.5-inch SATA/SAS bay. The SFF-8639 connector is physically similar across variants but the electrical interfaces are not interchangeable. Consult your NAS or server hardware compatibility list to verify PCIe NVMe U.2 support on the specific bay you intend to use. The M.2 SSD itself is sold separately and must be an M-key 2280 PCIe NVMe module — M.2 SATA drives will not function in a PCIe NVMe U.2 bay. For broader storage configuration options, see the QNAP storage catalog or explore NAS storage solutions for compatible enclosures. If you are planning a high-throughput caching tier, review the SSD selection for compatible M.2 NVMe modules, and pair with an appropriate network switch to avoid upstream bottlenecks.

Frequently Asked Questions

Q: Does the QDA-UMP4 require any drivers or software installation?

A: No. The QDA-UMP4 is a passive hardware adapter with no active components. No drivers, firmware, or software are required. The host system recognizes the installed M.2 NVMe SSD as a native U.2 NVMe device.

Q: What M.2 SSD sizes does the QDA-UMP4 support?

A: The QDA-UMP4 accepts M.2 2280 (80mm) M-key PCIe NVMe SSDs. The SSD is not included and must be purchased separately. M.2 SATA drives are not compatible.

Q: Will using the QDA-UMP4 limit the speed of my PCIe 4.0 NVMe SSD?

A: No. The adapter passes PCIe 4.0 x4 signaling without downgrading the connection, so a Gen 4 M.2 NVMe drive can operate at its full rated bandwidth. The limiting factor will be the SSD itself or the host bay's PCIe generation, not the adapter.

Q: What host connector does the QDA-UMP4 present to the NAS or server?

A: The QDA-UMP4 outputs a 2.5-inch U.2 SFF-8639 PCIe 4.0 x4 NVMe interface, which is the standard enterprise U.2 connector used in QNAP high-end NAS models and compatible servers.

Q: Can I use the QDA-UMP4 in a U.2 SATA bay instead of a U.2 NVMe bay?

A: No. The QDA-UMP4 is designed for PCIe NVMe U.2 bays only. U.2 SATA bays use a different electrical interface despite the similar SFF-8639 connector. Verify that your target bay is PCIe NVMe before installing.

Eden Phillips

The QDA-UMP4 is one of those deceptively simple pieces of hardware that solves a real deployment problem without introducing new ones. The key spec here is the full PCIe 4.0 x4 passthrough — this adapter does not negotiate down to Gen 3, so when you seat a high-performance Gen 4 M.2 NVMe SSD, you are not artificially capping it at ~3,500 MB/s the way a Gen 3 adapter would.

Technical Highlights:

• PCIe 4.0 x4 Full Bandwidth: Passive passthrough at Gen 4 speeds means a fast M.2 NVMe SSD reaches its rated sequential throughput — no interface-level throttling. Relevant when using the bay as a dedicated cache tier in a QNAP NAS where read/write acceleration is the entire point.
• SFF-8639 U.2 Output: The adapter presents a standards-compliant U.2 PCIe NVMe interface to the host. The NAS firmware and QTS operating system see a native U.2 NVMe device — no special pool configuration, no quirks mode.
• No Driver Dependency: Passive design eliminates driver compatibility risk entirely. QTS updates, kernel changes, or NAS firmware upgrades will not break this adapter because there is nothing to break — it has no firmware of its own.

Deployment Considerations:

• Confirm your U.2 bay is PCIe NVMe specifically before ordering. The SFF-8639 connector appears identical in SATA and NVMe variants but they are electrically incompatible — seating a NVMe adapter in a SATA U.2 bay will result in the drive not being detected.
• The M.2 SSD is not included. Budget for it separately, and verify it is an M-key 2280 PCIe NVMe module — not M.2 SATA and not a shorter 2242 or 2260 form factor, which will not seat correctly.

The QDA-UMP4 makes the most sense in a QNAP NAS that has U.2 bays designated for NVMe caching — models like the TVS or TS enterprise lines where those bays would otherwise require sourcing dedicated U.2 NVMe SSDs at a premium. If M.2 NVMe pricing gives you better cost-per-GB or you already have M.2 drives in inventory, this adapter converts that into a production-ready U.2 installation with no performance penalty.
