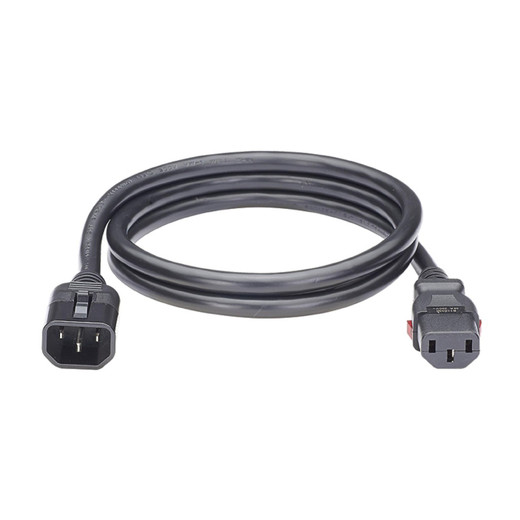

Panduit LPCA14-X SmartZone Dual-Locking Power Cord

The Panduit LPCA14-X is a dual-locking IEC power cord engineered to prevent accidental disconnection in mission-critical datacenter and server rack environments. This 2.4-meter (8-foot) cord features IEC C14 to C13 connectors with Panduit's dual-lock retention system, securing both ends of the cable to eliminate service interruptions caused by vibration, maintenance activity, or accidental contact. Designed for high-density rack installations where uptime is non-negotiable, the LPCA14-X delivers reliable power distribution between PDUs and rack-mounted equipment with UL, CE, and EAC compliance for global deployments.

Key Features

• Dual-locking retention system on both C14 and C13 connectors prevents accidental disconnection during maintenance or vibration
• IEC 60320 C14 to C13 configuration for standard PDU-to-equipment power distribution in 19" and 23" rack environments
• 2.4-meter (8-foot) length provides flexible routing in deep cabinets and between adjacent rack rows
• High-temperature rated conductors maintain performance in densely populated rack environments with elevated ambient temperatures
• UL, CE, and EAC certified for compliance across North American, European, and Eurasian Economic Union installations
• Black jacket blends with standard rack infrastructure and SmartZone PDU color schemes
• High-conductivity copper construction minimizes voltage drop and heat generation under continuous load

Accidental power interruptions remain one of the leading causes of unplanned downtime in datacenter and server room environments. The Panduit LPCA14-X addresses this risk with a dual-locking mechanism that secures the cord at both the PDU (C14 inlet) and equipment (C13 outlet) ends. Each connector features a positive-retention lock that requires deliberate disengagement, preventing the cable from pulling free during routine maintenance, hot-aisle servicing, or when technicians work on adjacent equipment. The locking system is particularly critical in high-density rack configurations where cable management trays, vertical PDUs, and tight bend-radius routing create tension on standard friction-fit power cords. The 2.4-meter length strikes an optimal balance for most rack applications—long enough to route from vertical PDUs mounted at the rear of a cabinet to equipment in the front rail positions, yet short enough to avoid excessive cable pooling that complicates airflow management and future moves-adds-changes.

The high-temperature rating of the LPCA14-X's conductors addresses a common failure mode in modern datacenter power distribution: conductor degradation in elevated-temperature zones. As rack power densities climb past 10 kW per cabinet, the ambient temperature in hot aisles and densely populated equipment bays can exceed 40°C (104°F) even with effective containment systems in place. Standard power cords rated for only 60°C conductor temperature may experience accelerated insulation breakdown and increased contact resistance when operating continuously in these environments. Panduit engineers the LPCA14-X with materials that maintain electrical performance and mechanical integrity under sustained high-temperature exposure, reducing the risk of thermal runaway and extending service life in thermally challenging deployments. This temperature resilience is especially valuable in battery backup cabinets, UPS installations, and network core equipment rooms where heat loads are concentrated and cooling capacity is at a premium.

The UL, CE, and EAC certifications ensure the LPCA14-X meets safety and performance requirements for installations across multiple regulatory jurisdictions. UL listing confirms compliance with North American electrical safety standards (UL 817 for cord sets), while the CE mark indicates conformity with European Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) requirements. EAC certification extends approval to installations in Russia, Kazakhstan, Belarus, and other members of the Eurasian Economic Union. For integrators managing multi-site datacenter builds or global enterprise rollouts, this tri-regional certification simplifies procurement and ensures consistent specification compliance across geographies. The black jacket color integrates seamlessly with Panduit SmartZone intelligent PDU systems and standard black-oxide rack hardware, maintaining a professional appearance in client-facing colocation environments and executive-visibility network operations centers.
