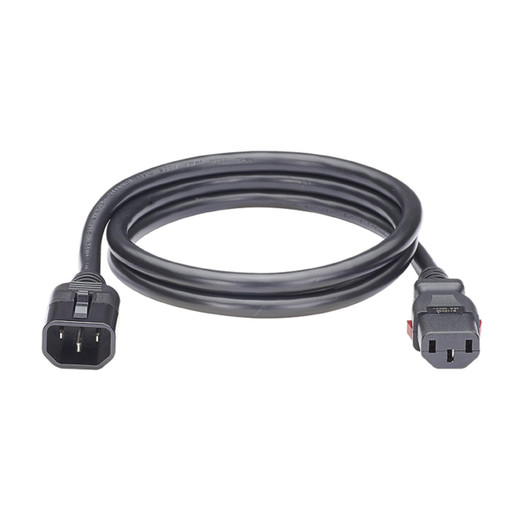

Panduit LPCA13-X 6ft Dual-Lock IEC C14-C13 Power Cord

Panduit LPCA13-X SmartZone Dual-Locking Power Cord

The Panduit LPCA13-X is a 6-foot (1.8m) dual-locking power cord engineered for mission-critical rack environments where accidental disconnection isn't an option. Featuring IEC C14 to IEC C13 connectors with Panduit's proprietary dual-lock retention system, this SmartZone cord delivers the cable-management discipline data centers and network operations centers demand. The bilateral locking tabs engage both the inlet and outlet, providing redundant mechanical retention that survives rack servicing, cable bundling tension, and high-density environments where a single bump can take equipment offline. UL, CE, and EAC certified for global deployment, this cord is built for installations where uptime is measured and five-nines reliability is the baseline.

Key Features

• Dual-Locking Retention System — bilateral locking tabs on both connectors prevent accidental disconnection during rack maintenance, cable management, or adjacent equipment servicing
• IEC C14 to IEC C13 Connectors — universal compatibility with PDUs, UPS systems, servers, switches, and enterprise network equipment
• High Temperature Rating — engineered for the elevated ambient temperatures common in high-density rack environments and hot-aisle containment
• High-Conductivity Contacts — low-resistance terminations reduce voltage drop and heat generation across the connection
• 6-Foot (1.8m) Length — optimized for mid-to-top-of-rack PDU connections and vertical cable management in 42U enclosures
• UL, CE, and EAC Certified — meets North American, European, and Eurasian electrical safety standards for global data center deployments
• Panduit SmartZone Quality — part of Panduit's data center infrastructure portfolio, backed by the same engineering standards as their copper, fiber, and physical-layer systems

The dual-locking mechanism is the defining feature of the LPCA13-X. Standard IEC C13/C14 friction-fit connections rely on a single retention clip and contact pressure — adequate for static installations but vulnerable in high-activity environments. Panduit's design adds a secondary locking tab that engages a mating feature on both the inlet and outlet sides. The result is a mechanical interlock that requires deliberate disengagement: you can pull, tug, or brush against the cord during adjacent work without breaking the connection. In dense 1U server deployments where 20–30 power cords occupy a single rack and every maintenance window involves hands working inches from live connections, this redundancy directly reduces the risk of unplanned outages. The high-temperature rating further distinguishes this cord from commodity C13/C14 jumpers — many standard cords are rated for 60°C or 75°C ambient, but data center hot aisles routinely exceed those thresholds when containment is in place or CRAC capacity is constrained. Panduit specs this cord for sustained elevated temperatures, meaning it won't degrade, soften, or lose retention force in environments where lesser cords fail early.

Deployment contexts for the LPCA13-X center on critical infrastructure where cable reliability directly impacts business continuity. Financial services firms running low-latency trading stacks, healthcare networks operating PACS and EHR clusters, and cloud service providers managing multi-tenant compute nodes all share the same constraint: a single dropped power connection can cascade into SLA violations, data loss, or regulatory findings. The 6-foot length is deliberately chosen for the most common rack configuration — equipment mounted mid-to-top of a 42U enclosure with PDU outlets distributed vertically along the rear rails. Shorter cords create strain and limit routing options; longer cords create excess slack that interferes with airflow and complicates moves-adds-changes. At 1.8 meters, the LPCA13-X provides enough reach for clean vertical or horizontal routing through cable managers without the coil-and-tie waste that accumulates with 10-foot jumpers. The IEC C14 plug (male inlet) and C13 receptacle (female outlet) interface is the de facto standard for IT equipment power distribution worldwide — servers, switches, storage arrays, and most 1U/2U appliances ship with C14 inlets, while PDUs, UPS units, and rack-mount power strips provide C13 outlets. This cord fits that ecosystem without adapters, gender changers, or custom fabrication.

Compliance and certification matter in procurement: UL listing confirms the cord meets ANSI/UL 60320-1 and UL 817 for North American installations, CE marking attests to EN 60320-1 low-voltage directive compliance for EU deployments, and EAC certification satisfies the Eurasian Conformity requirements for Russia, Belarus, Kazakhstan, and neighboring markets. For organizations with global footprints or multi-region disaster recovery sites, a single cord SKU that clears all three regulatory frameworks simplifies BOM management and sparing logistics. Panduit's SmartZone product line extends beyond this cord — it encompasses modular power distribution, environmental monitoring, and asset management — so specifying the LPCA13-X integrates with a broader data center infrastructure strategy rather than introducing a one-off component. The dual-lock feature isn't a gimmick; it's a calculated response to the operational reality that most unplanned outages in data centers trace back to physical-layer failures: loose connections, failed contacts, or inadvertent disconnections during adjacent work. Installing locking cords on tier-1 equipment — core switches, primary storage controllers, cluster management nodes — is a low-cost insurance policy that prevents the five-figure incident-response costs and reputation damage that follow a preventable outage.
