Lifesafety Power RGS150-4D8Z Gemini Rack Mount Power Sys RGS150-4

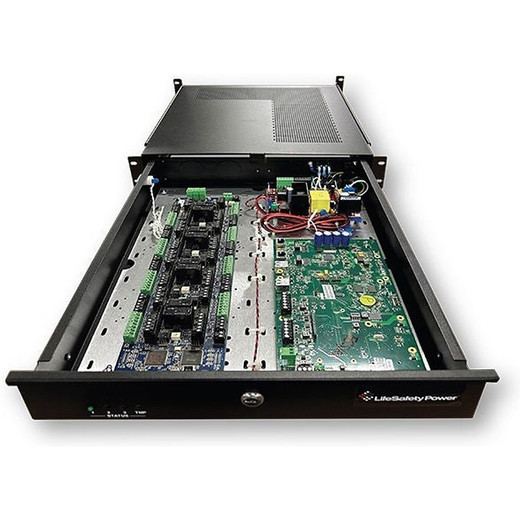

Lifesafety Power RGS150-4D8Z Gemini Rack Mount Power System

The Lifesafety Power RGS150-4D8Z is a UL-listed rack mount power distribution system that combines FlexPower modules and access control hardware in a single compact enclosure. Designed for installers deploying networked access control and door locking systems, it provides 150W total output with integrated battery backup, fire alarm integration, and remote monitoring capability via optional Netlink module.

Key Features

• 150W total output, 120V AC input with dual-voltage zone selection
• 32 auxiliary 3A fused outputs on 4D8 board with OutSmart dual-color LED status indicators (12V green, 24V blue)
• Built-in fire alarm disconnect automatically unlocks doors on alarm trigger
• Low battery cutoff and dedicated fast charger prevent deep discharge and extend battery life
• Rack mount enclosure: 3.5H × 19.0W × 20.5D inches (28.90 lbs); enhanced surge immunity on all inputs/outputs
• Netlink-ready for remote power and battery monitoring; lifetime warranty

Access control installers and system integrators rely on the RGS150-4D8Z for central power distribution in small-to-medium deployments where fire safety integration and battery-backed door release are required. Compatible with LifeSafety Power FlexPower modules and standard access control hardware.
