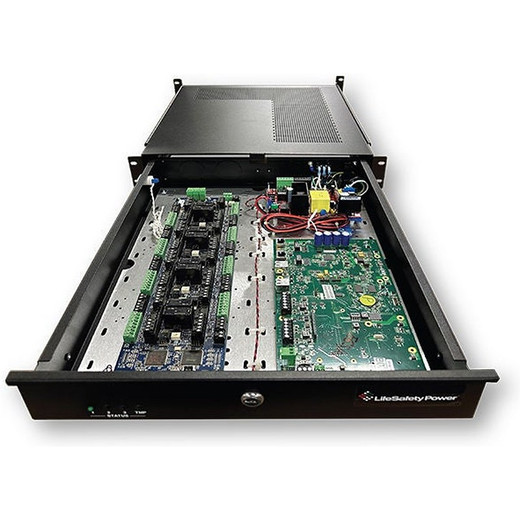

Lifesafety Power RGS250-4D8Z 250W Rack-Mount Power Supply
Overview
The RGS250-4D8Z is a 2U rack-mounted power supply delivering 250W total capacity with dual voltage options: 20 amps at 12V or 10 amps at 24V. It solves the core problem in distributed access-control and surveillance installs: centralized power delivery to multiple door controllers, card readers, and auxiliary devices across a building, eliminating the need for scattered wall-mount supplies and tangled cable runs.
The unit features 32 independent DC output channels, each fused at 3 amps and individually selectable for Bus1 or Bus2 operation—meaning you can partition power distribution across separate circuits without adding hardware. The RGS250-4D8Z fits standard 19-inch rack enclosures and includes a Z-bracket wire-management arm to keep output terminations organized and field-serviceable.
Compatibility
The RGS250-4D8Z is engineered for access-control and low-voltage security systems that use Bus1/Bus2 architecture—typical in Software House (UTC) legacy systems and modern integrations where multiple reader circuits or device groups require isolated power branches. Confirm your system's voltage and amperage requirements (12V or 24V) before installation; the supply cannot be field-switched between them.
Each of the 32 outputs delivers up to 3A maximum, so individual devices (card readers, door strikes, auxiliary relays) must draw ≤3A per circuit. Total system load cannot exceed 250W. For installations requiring higher per-output current, consider cascading multiple supplies or uprating to a higher-capacity model in the Lifesafety Power range.
Installation Notes
Mount in a standard 19-inch vertical rack; the 2U form factor (3.50 inches high) fits typical network and security racks alongside switches, patch panels, and other gear. The depth of 20.50 inches accommodates standard 24-inch deep racks with rear cable egress. Wire incoming AC power and outgoing DC circuits using appropriate gauge copper (consult the terminal specifications for voltage drop over run length). The Z-bracket arm supports cable routing and strain relief for the 32 output leads. Secure outputs with labeled terminal blocks to avoid cross-wiring; each circuit is protected at 3A, so oversized loads will trip the fuse and leave devices without power until the fuse is replaced.
What's in the Box
- 1x RGS250-4D8Z power supply unit (2U rack chassis)
- 1x Z-bracket wire-management articulating arm
