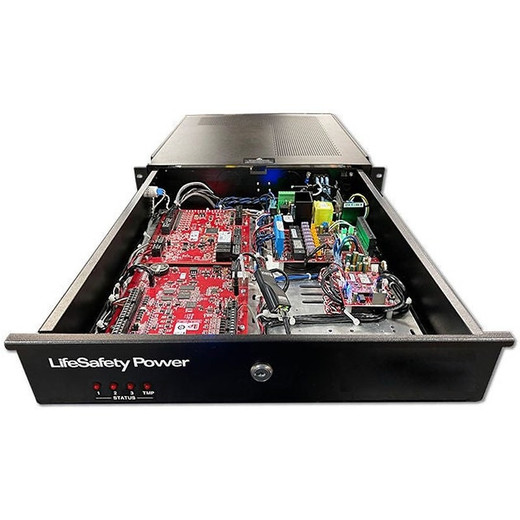

Lifesafety Power RGM-D8PM8PZ1 8-Output DC Auxiliary Distribution Module

The Lifesafety Power RGM-D8PM8PZ1 is an 8-output DC auxiliary distribution module that provides class 2 power-limited DC circuits at 2.5A per output. Each output is independently selectable for Bus1 or Bus2, enabling flexible power distribution across access-control and life-safety devices. This module installs in a standard 2U rackmount enclosure and includes heavy-duty Z1 bracket articulating wire management for organized panel deployments.

Key Features

• 8 independent DC auxiliary outputs, each rated 2.5A (class 2 power limited)
• Per-output Bus1/Bus2 selectable configuration for dual-circuit flexibility
• 2U rackmount form factor (19.00" W × 3.50" H × 20.50" D)
• Heavy-duty Z1 bracket with articulating wire management arm for cable organization
• Suitable for access-control, fire-alarm, and emergency-egress system auxiliary power distribution

Installers and system integrators deploying Lifesafety Power Mercury rackmount platforms use this module to distribute low-voltage auxiliary power to locks, sensors, and monitoring devices. Compatible with Lifesafety Power RG Mercury enclosure series.
