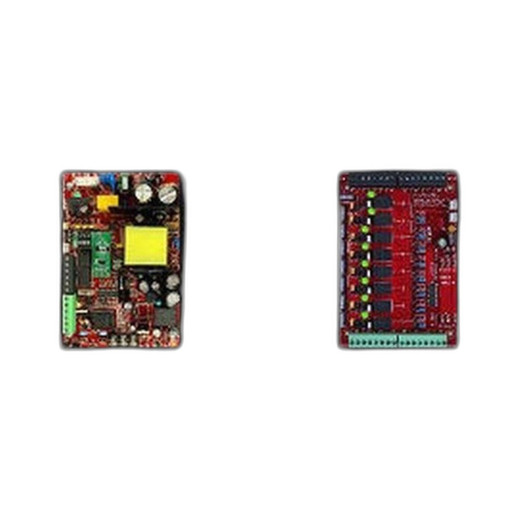

Lifesafety Power FPO75-C8D8E2 Single Voltage Offline Switchmode

We've deployed the Lifesafety Power FPO75-C8D8E2 across dozens of small-footprint access control projects — office parks, retail corridors, light industrial facilities. The standout feature isn't the power budget; it's the 16 independent 3A fused outputs. In the field, that isolation saves troubleshooting time and prevents cascading failures. A tenant's door strike shorts out? The 3A fuse on that one terminal blows. Everything else on the panel stays live. Compare that to a single-fuse-per-supply topology, and you're looking at a facility-wide power reboot every time a solenoid fails — unacceptable on a Monday morning when the front door goes down. The E2 enclosure is compact and mounts flush to a wall or 19-inch rack, so retrofit fit is typically non-negotiable on renovation projects. Switchmode efficiency matters here too: at 80–85% versus 70% on older linear supplies, you're looking at 10–15W less heat dissipation in a confined cabinet — not a showstopper, but real comfort on a panel stuffed with multiple devices.

The trade-off: 75W is tight if you're trying to run more than 3–4 full-draw solenoids plus readers. At 12V/6A, three 2.5A strikes at steady-state leaves you 0.5A headroom — not enough margin for inrush. We've seen sites spec this unit for 6 solenoids and then get caught short during concurrent lock cycles. It's not a design flaw; it's a spec discipline issue. Know your load profile — peak concurrent draw, not just nominal — before provisioning.

Technical Highlights:

• Independent 3A Circuit Fuses: Each of 16 output circuits fused at 3A. A short on one solenoid or reader circuit does not de-energize other loads. In real deployments, this isolation prevents the 2 a.m. facility-wide lockout scenario and dramatically simplifies field troubleshooting. No single-point electrical fault can disable your entire access panel.
• Switchmode Topology (80–85% Efficiency): Lower heat output than linear supplies, important in compact wall-mounted or cabinet installations without active cooling. 10–15W thermal savings per unit across a 6–8 door panel adds up on electrical load budgets and reduces HVAC sizing pressure.
• Single Voltage Configuration (12V or 24V): No voltage selection relay or jumper risk. The unit is factory-set to your controller's voltage requirement — no on-site field configuration, no user error, no middle-ground half-voltage failure mode. Simpler supply chain, easier spares inventory.
• Screw Terminal Outputs: 16–22 AWG copper wire, field-serviceable without proprietary tools or connectors. A corroded or loose terminal can be re-terminated on-site in minutes; no supply return required for minor wiring maintenance.
• Compact Form Factor (E2 Enclosure): Mounts to wall or 19-inch rack using integral ears. Footprint is typically 8–10 inches wide, 6 inches tall — fits retrofit cavities and new-build cabinets without major space trade-offs. Standard DIN-rail compatible hardware.

Deployment Considerations:

• Load Profiling is Mandatory: Calculate peak concurrent draw (not nominal steady-state) across all door strikes and readers. Three 2.5A solenoids running simultaneously at 12V consume 7.5A — exceeding the 6A ceiling. The 75W envelope forces load discipline. On dense multi-door panels, consider multiple smaller supplies (two 40W units) instead of one 75W unit.
• No Battery or UPS Integrated: The FPO75-C8D8E2 is mains-dependent. If 24/7 strike power is required during utility mains failure, pair it with a dedicated UPS or battery backup module. Do not rely on a facility-wide UPS downstream of this supply — power outages will de-energize your solenoids unless backup is hard-wired to lock outputs.
• Voltage Selection is Factory-Only: This unit ships as either 12V or 24V. You cannot switch it on-site. Confirm your access controller's voltage requirement (check the panel schematic or datasheet) before ordering. Mixing voltage supplies across a multi-door site is a common integration misstep.
• Wire Gauge and Distance Matter: Screw terminals accept 16–22 AWG copper. On long runs (>50 feet) from supply to distant solenoids, voltage drop can exceed 2–3V, under-energizing your strikes. Use voltage-drop calculators during design and plan supply placement accordingly — typically wall-mounted near the access control panel it's powering.
• Thermal Environment: Switchmode supplies are sensitive to ambient temperature. In unclimated cabinets or outdoor wall mounts, confirm operating temperature range in spec sheet. If ambient rises above 40°C, derate the supply or add cabinet cooling.

The FPO75-C8D8E2 is the right choice for integrators and facility managers designing 4–6 door access control systems where circuit isolation and compact footprint are operational priorities. It's a reference topology in North American commercial access control — proven, field-tested, and easier to troubleshoot than competing all-in-one control units. For larger deployments (8+ doors), consider a modular strategy: multiple FPO75 units distributed across the facility, each powering a discrete access panel. This approach improves fault isolation and reduces service response time. Explore the full Lifesafety Power catalog for alternative power budget and enclosure options.
