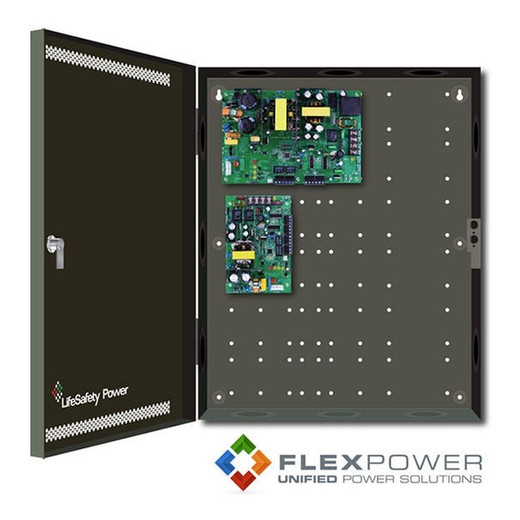

Lifesafety Power FPO250-B100C8D8E2 250W Power Supply Enclosure
Overview
The Lifesafety Power FPO250-B100C8D8E2 is a 250W industrial power supply enclosure designed to distribute fused DC power across multiple surveillance, access control, and auxiliary devices. Eight independently fused outputs (3A each) deliver dedicated protection to each connected load — a critical detail when a single fault shouldn't cascade across your entire camera or access control infrastructure. The unit supplies both 4A at 12V and 8A at 24V, covering the voltage needs of most commercial IP cameras, door locks, readers, and control modules in a single chassis.
Compatibility
The FPO250-B100C8D8E2 integrates with surveillance and access control systems requiring distributed DC power from a centralized location. It pairs with standard DIN-rail mounted 24V or 12V power supplies (not included) and distributes fused outputs to cameras, door strikes, maglocks, readers, relay modules, and auxiliary devices. Verify your primary power supply can source 250W total; individual device current draw on any single fused output should not exceed 3A to stay within the output circuit protection.
Installation Notes
Mount on a standard 35mm DIN rail in an electrical enclosure — confirm clearance for terminal strip access and fuse replacement. Wire input power from your primary 24V or 12V supply to the designated input terminals; each of the eight outputs is independently fused at 3A, accessible from the front for quick replacement or troubleshooting. Enclosure rated to withstand industrial environments — verify ambient temperature and humidity match your installation space.
What's in the Box
- FPO250-B100C8D8E2 power distribution enclosure
- Eight 3A fuses (pre-installed)
- DIN rail mounting hardware
- Terminal strip with eight independent outputs
