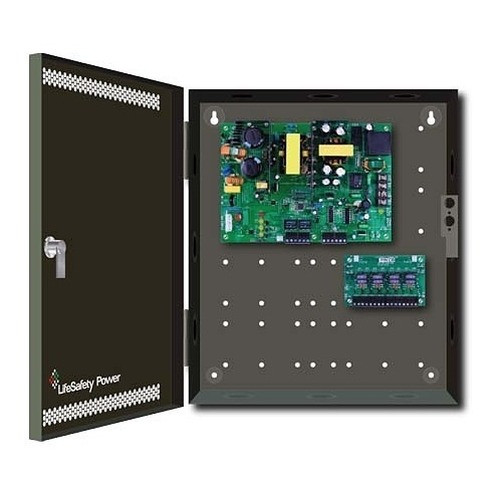

Lifesafety Power FPO150-D8PE1 150W Power Supply Cabinet

Overview

The FPO150-D8PE1 is a 150W switched-mode power supply housed in an E1 enclosure, designed to distribute DC power to networked security equipment across distributed installations. Eight auxiliary outputs eliminate the need for separate power distribution modules downstream, reducing rack complexity and cutting installation labor in small-to-mid-scale systems. Each output is current-limited to 2.5A (Class 2 power-limited), making it safe for mixed loads—cameras, access control readers, sensors, and auxiliary devices—without requiring secondary fusing or relay logic.

Compatibility & Deployment

The FPO150-D8PE1 suits systems requiring centralized power distribution where 12VDC or 24VDC is the standard—typical of security power supplies feeding analog or IP-based surveillance cameras, card readers, and wireless access points. Output voltage configurations (12A at 12V, or 6A at 24V total budget) let you segment loads by protection class and voltage tier. The cabinet footprint fits standard 19-inch relay racks or wall-mount enclosures, supporting modular system scaling in warehouses, retail, and small enterprise deployments.

Installation & Wiring

Eight independent terminals accommodate standard 18–12 AWG copper conductors. Class 2 current limiting on each output protects against short-circuit without nuisance breaker trips, critical where field technicians may accidentally ground or parallel outputs during commissioning. Total 150W budget means careful load accounting: a typical 5MP PoE camera draws 5–10W; traditional IR illuminators draw 20–50W. Plan output assignment before powering the cabinet to avoid last-minute field rewiring.
