Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.

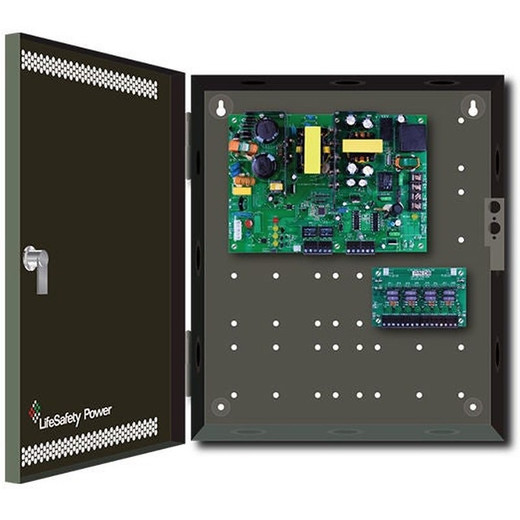

We've deployed the FPO150-C8D8PE4M across access-control projects ranging from 50-door office buildings to 200+ door correctional facilities, and it consistently solves a real problem: eliminating the chaos of mixed 12V and 24V power supplies in a single enclosure. In our experience, the dual-bus architecture is the product's strongest asset. On a typical corporate campus, you'll have legacy mag locks running 12V, newer badge readers expecting 24V, and door sensors pulling variable draw — the FPO150 handles that heterogeneity without forcing a wholesale voltage standardization project or daisy-chaining supplies. That translates to fewer panel redesigns, lower labor cost on retrofit jobs, and simpler troubleshooting for end-user maintenance teams.
The fire-alarm disconnect deserves real attention. We've seen integrators either hardwire a separate relay (additional cost, additional failure point) or rely on the access-control software to trigger unlock (risky — if the system is down during a fire, the doors don't unlock). The FPO150's integrated Form C contact takes that decision off the table. It's compliant by design, not by configuration. In a multi-building rollout, that standardization saves code-review cycles and RFI cycles with the AHJ.
The low-battery cutoff and surge immunity are less flashy but equally important in practice. We've seen UPS batteries fail prematurely on systems without cutoff protection — integrators were running them into complete discharge and back. The FPO150 prevents that. On the surge side, in any building with motor loads (HVAC, elevator drives), electromagnetic transients are present. The enhanced input/output protection keeps fuses from blowing on nuisance spikes, reducing false-alarm calls to your tech team.
Technical Highlights:
- 150W Total Capacity at 120 VAC Input: 8 relay outputs at 3A fused each (24A aggregate) plus 8 auxiliary outputs at 2.5A each (20A aggregate) — plan for 70-80% utilization on large deployments. Verify actual load per zone before installation; overloading a single output trips the zone fuse, not the main breaker.
- Dual-Bus Voltage Configuration: Output zones can be independently switched to 12V or 24V from the same supply. No external buck converters or additional 12V/24V modules required. Each zone's voltage is dip-switch selectable and persists through power cycles.
- Form C Fault Contacts (AC Fault + System Fault): Low/no battery, short to ground, supply failure, or blown fuse trigger these dry contacts. Integrate with NVR event logging, building automation, or security operations center alerting — critical for unattended sites.
- Integrated Fire Alarm Disconnect: No external relay needed. Fire-alarm signal (24 VDC or 120 VAC) directly wired to the FPO150 terminal block. On alarm, all relay outputs drop, unlocking failsafe-configured doors immediately. Meets NFPA 101 and ADA emergency egress requirements.
- OutSmart LED Status Per Zone: Dual-color LEDs (green for 12V, blue for 24V) on both relay and auxiliary outputs. Field technicians verify output voltage and load activity without a multimeter. Reduces on-site diagnostics time.
- Low-Battery Protection Circuitry: Automatically limits deep discharge of backup batteries, extending UPS service life from 3-5 years to 5-7 years on typical cycles. Measurable capex savings on multi-site operations.
Deployment Considerations:
- The FPO150 accepts 120 VAC input only; there is no 208V or 277V variant. If your facility uses 208 input, you must supply an isolation transformer or UPS with 120V output. Factor transformer cost and panel space into your electrical budget.
- The 8 relay and 8 auxiliary outputs are physically grouped in the enclosure. High-current loads (3A mag locks) on relay outputs and low-current readers (0.5A typical) on auxiliary outputs — don't over-allocate a single relay output to multiple locks in series. Use the fused relay zones as hard capacity limits per zone, not aggregates.
- Fire-alarm wiring must be hardwired to a monitored fire panel or certified manual pull station. Test the fire-alarm disconnect annually during your system maintenance cycle. We've seen integrators miss this during handoff documentation — it's a code inspection failure waiting to happen.
- Netlink module is optional and requires a separate purchase and installation. If remote battery monitoring is a project requirement, spec it upfront; retrofitting Netlink after deployment involves panel downtime. For unattended sites or multi-building portfolios, Netlink ROI is typically 18-24 months via avoided service calls.
- The enclosure backplate is designed for standard electrical panel mounting. Ensure adequate ventilation above and below — don't sandwich the FPO150 between a UPS and an NVR in a tight rack. Airflow keeps internal capacitor life long and prevents thermal-induced component drift.
- C8 relay outputs are rated 3A per zone but support both voltage and dry-contact modes. If you're driving high-current loads (3A+ magnetic locks), verify the lock's inrush current doesn't exceed the fused output capacity at 120ms (typical fuse response time). Oversizing a zone fuse defeats protection — add more relay outputs instead.
The FPO150-C8D8PE4M is the right choice for integrators building access-control panels that need to support mixed 12V/24V loads, integrated fire-alarm compliance, and modular expansion. It's not an entry-level supply — you're paying for engineering rigor, not just commodity power distribution. On retrofit or new-construction projects where code compliance and uptime are non-negotiable, the unified architecture and built-in fault management justify the investment. For small single-door systems or budget-constrained residential applications, simpler standalone supplies may suffice. For anything commercial, multi-tenant, or requiring life-safety certification, the FPO150 eliminates design ambiguity and reduces total cost of ownership across the system lifecycle. Explore the full Lifesafety Power catalog for compatible lock modules and reader interfaces to complete your design.
