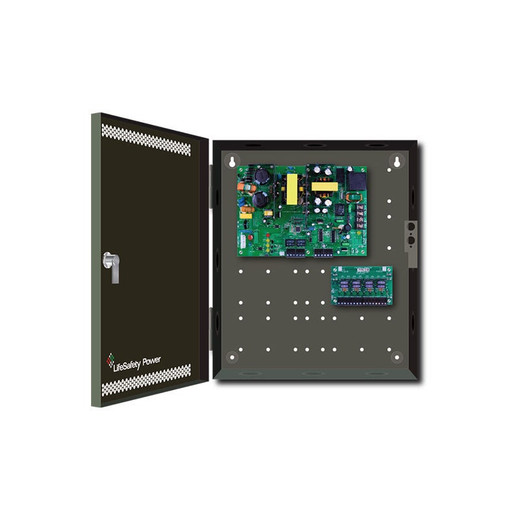

Lifesafety Power FPO150-B100C8PE2M 150W Dual Voltage 120 VAC 8

Lifesafety Power FPO150-B100C8PE2M 150W Dual Voltage Power Supply

Overview

The Lifesafety Power FPO150-B100C8PE2M is a 150W switching power supply designed for access control panels, locking mechanisms, and distributed security infrastructure requiring dual-voltage operation. The unit accepts 120 VAC input and delivers 150 watts across 8 relay lock outputs—a direct fit for fire-rated door hardware integration and multi-zone credential readers where a single centralized supply must feed multiple unlatch circuits.

Compatibility

This supply is compatible with Lifesafety Power access control system architectures and third-party panels requiring 150W capacity and relay-driven lock control. Verify your panel's input voltage specification (120 VAC) and total lock current draw before installation. The FPO150-B100C8PE2M integrates with hardwired door strike systems, magnetic locks, and fail-safe latches rated for the relay outputs provided.

Installation Notes

Confirm input voltage availability at the installation site—120 VAC only, no 240V selection on this model. Size copper wire to the relay outputs based on individual lock inrush current; oversized wire reduces voltage drop across longer runs to hardware. Route supply away from high-current motor circuits and building 277V emergency lighting systems to minimize EMI coupling into credential reader data lines. Anchor the unit to a DIN rail or fixed mount inside a locked electrical enclosure.
