Lifesafety Power FPO150-B1002C82D8PE8M1 150W Access Control Power Supply
Overview
The FPO150-B1002C82D8PE8M1 is a 150W power supply unit designed for distributed access control and door lock management. It delivers either 12A at 12VDC or 6A at 24VDC, with an adjustable 5–18V secondary output rated at 4A maximum. The unit integrates 16 relay lock control outputs (each fused at 3A) and 16 DC auxiliary outputs (2.5A class 2 power limited) on independent Bus1 or Bus2 channels. This architecture supports complex multi-door installations where individual outputs must be configured for failsafe or failsecure operation per door logic requirements.
Compatibility
Deploy this supply in access control systems requiring discrete relay-driven lock control and auxiliary device management across multiple door zones. The dual-output design and per-channel failsafe/failsecure selectability make it suitable for integrators managing mixed lock types (magnetic, solenoid, electronic strike) within a single enclosure. The E8 form factor with Mercury back plate and door-mount kit facilitates DIN-rail or wall installation in electrical/mechanical rooms serving perimeter or interior checkpoints.
Installation Notes

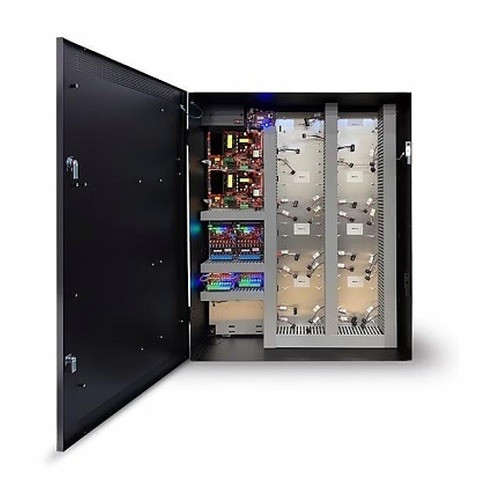

The unit arrives in an E8 enclosure (36H × 30W × 6.5D inches). Each of the 16 relay outputs is individually fused at 3A—verify that total lock current draw does not exceed the per-output fuse rating, particularly on multi-strike installations. The 16 DC auxiliary outputs are class 2 power limited and do not require fusing. Configure each output's failsafe or failsecure mode at commissioning to match your door hardware and emergency protocol. Secondary voltage output (5–18V adjustable) supports battery chargers or low-voltage auxiliary loads separate from primary lock power.
