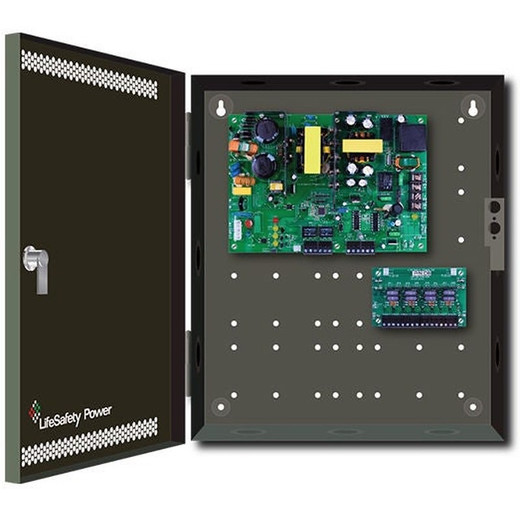

Lifesafety Power FPO150-B100D8PM8NLCE4M 150W Power Supply

Overview

The FPO150-B100D8PM8NLCE4M is a 150W managed power distribution unit designed for access control, fire alarm, and small-to-mid-scale security systems. It delivers 12A at 12V or 6A at 24V—enough to power multiple electromagnetic locks, relay modules, or sensors without overloading a single supply. The eight independent DC outputs, each fused at 3A and individually selectable for Bus1 or Bus2 operation, let you partition power zones without running separate conduits. This is the right choice when you need fault isolation and per-device power limiting in a compact form factor.

Compatibility

The FPO150-B100D8PM8NLCE4M integrates with Lifesafety Power control panels and bus-based security system architectures that support dual-bus distribution (Bus1 and Bus2). Confirm compatibility with your panel's power requirements before ordering—this unit is sized for distributed door control and auxiliary circuits, not for powering entire multi-door panels. Consult your system integrator or panel documentation to verify voltage and current draw match your deployment.

Installation Notes

Each of the eight outputs is class 2 power-limited to 2.5A per channel, meaning you cannot exceed 2.5A per circuit regardless of load. The 3A fuses protect the backplane; the class 2 limits protect downstream devices. Install in a secure enclosure away from moisture and temperature extremes. Use appropriately rated terminal blocks or connectors for 12V/24V DC wiring—standard 18–22 AWG for runs under 50 feet is typical, but verify based on your actual circuit length and current draw. Do not exceed the per-output current limits; doing so will trip the fuse and require manual replacement.
