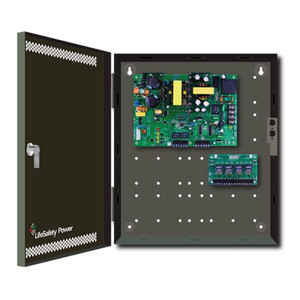

Lifesafety Power FPO150/250-2D8P2M8NLCE8M1 Dual-Output Managed Power Supply

Overview

The FPO150/250-2D8P2M8NLCE8M1 is a compact power supply designed for distributed security and access control installations. It delivers switchable 150W (12VDC at 12A or 24VDC at 6A) or 250W (12VDC at 20A or 24VDC at 10A) across two independent buses with eight individually managed and fused outputs. Each of the eight outputs can be assigned to either Bus 1 or Bus 2 and is class 2 power-limited to 2.5A per channel with integral 3A fusing—protecting downstream endpoints from overload and simplifying troubleshooting by isolating failures to a single output without affecting the entire system.

Compatibility

This supply integrates with security systems requiring dual-bus redundancy or isolated power distribution across multiple zones. The selectable per-output bus assignment enables segregation of IP cameras, card readers, and auxiliary devices without additional external switching. The managed distribution module (M8NLCE8M1) provides circuit-level visibility and control suitable for medium-scale access control, surveillance, and emergency lighting deployments.

Physical Specifications

The E8 enclosure measures 36H x 30W x 6.5D inches, offering a compact wall-mount or DIN-rail installation footprint. The dual-output architecture and fused distribution are designed for environments requiring hard-wired power infrastructure rather than PoE switch delivery alone.

Operational Constraints

Output current is limited to 2.5A per channel; high-draw devices or aggregated loads exceeding this threshold require direct feed from the main output or parallel-channel configuration. Verify endpoint amperage ratings (especially for door strikes, access readers, and sensor arrays) before assignment to avoid nuisance fusing.
